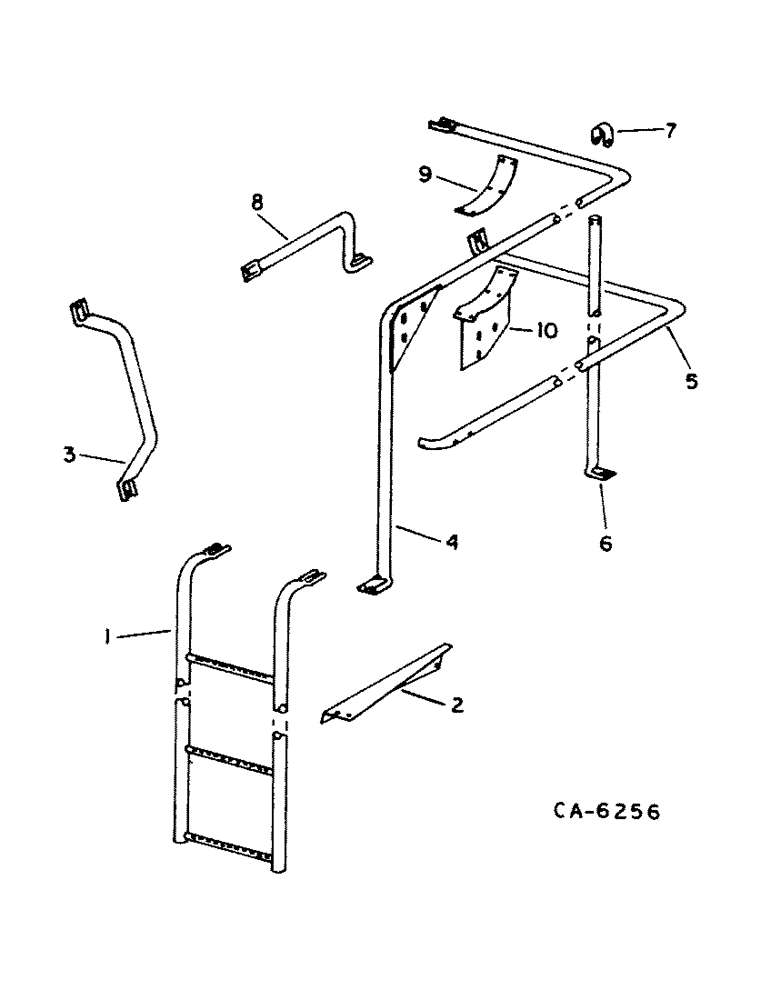

Запчасти Case IH 1482 (20-07) - SEPARATOR, SERVICE LADDER AND HANDRAILS Separation

1

189605C1

LADDER

ASSY, service

1шт.

2

189617C1

SUPPORT

ladder lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

3

189600C1

HANDLE

cover rear ladder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

4

185616C2

RAIL

ASSY, upper hand

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

488837C1

SPRING NUT

5/16 speed

1шт.

5

189603C1

ROD

middle

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 spring

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 x 3 type 5

1шт.

6

1989604C1

DECAL

ROD, upright

2шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 spring

1шт.

7

189601C1

YOKE

hand rail

3шт.

172431

SCREW,Hex, 1/4" - 20 x 3/4"

1/4 x 3/4 h/hd tap

1шт.

8

1313969C1

SHIELD

ROD, deck filler sheet, Replaces 185668C1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

9

STRIP, unloader tube saddle, Refer to group 26 under grain tank unloader upper

1шт.

10

SADDLE ASSY, unloader tube, Refer to group 26 under grain tank unloader upper

1шт.
