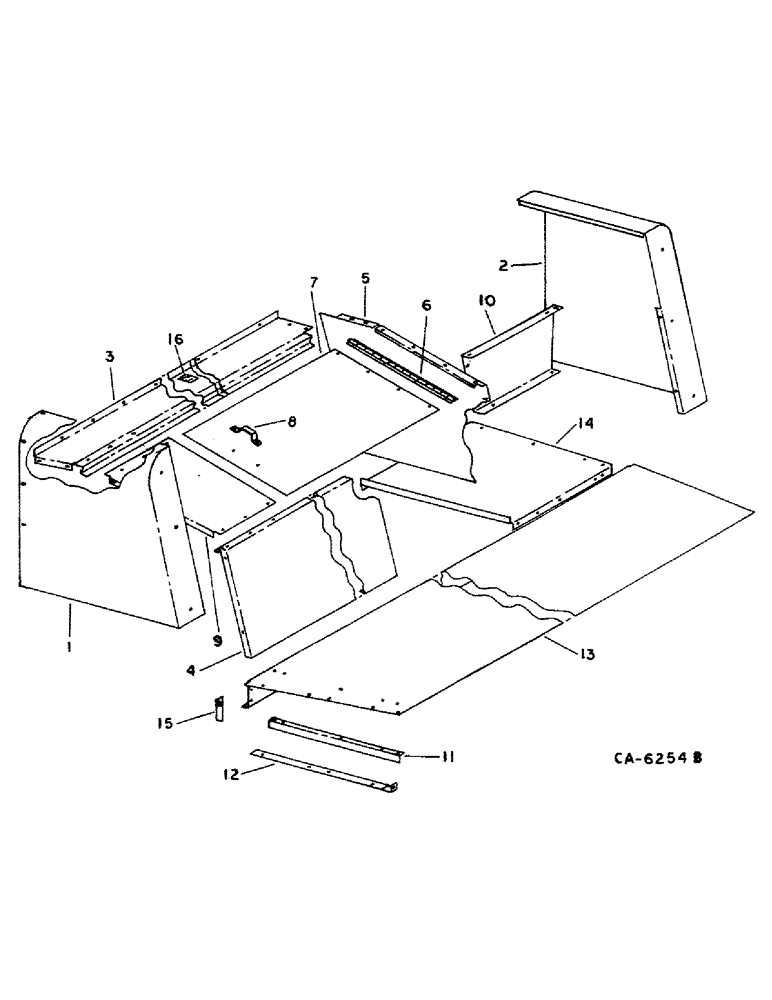

Запчасти Case IH 1482 (20-03) - SEPARATOR, SERVICE DECK Separation

1

189560C3

SUPPORT

ASSY, side drive cover LH

1шт.

2

189561C3

SUPPORT

ASSY, side drive cover RH

1шт.

3

1319644C91

SUPPORT ASSY.

SUPPORT, grain tank drive cover, Includes: Ref. 16, Replaces 189573C1

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

189567C2

COVER

ASSY, drive rear lower

1шт.

126177

WING NUT

NUT, 1/4 wing

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

5

189569C1

SHEET

SUPPORT ASSY, RH drive cover

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

6

189571C1

HINGE

drive cover

1шт.

7

184633C1

DOOR

ASSY, drive cover

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

8

160638C1

HANDLE

door

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/13 x 3/4 znp slt-truss-hd

1шт.

9

185664C1

COVER

LH drive upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

187499C2

SHEET

SUPPORT, deck filler RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

11

189584C1

ANGLE

deck cover

7шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

12

184772C2

ANGLE

SUPPORT, LH deck stiffener

1шт.

13

189583C1

SHEET

SUPPORT, deck cover

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

14

189587C1

SHEET

SUPPORT, catwalk grain tank

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

15

1305580C1

ANGLE

deck left front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

16

1319494C1

PRODUCT GRAPHIC

caution, Grain tank

1шт.
