Запчасти Case IH 1482 (26-12) - GRAIN TANK, UNLOADER UPPER GEAR CASE ASSEMBLY Grain Tank

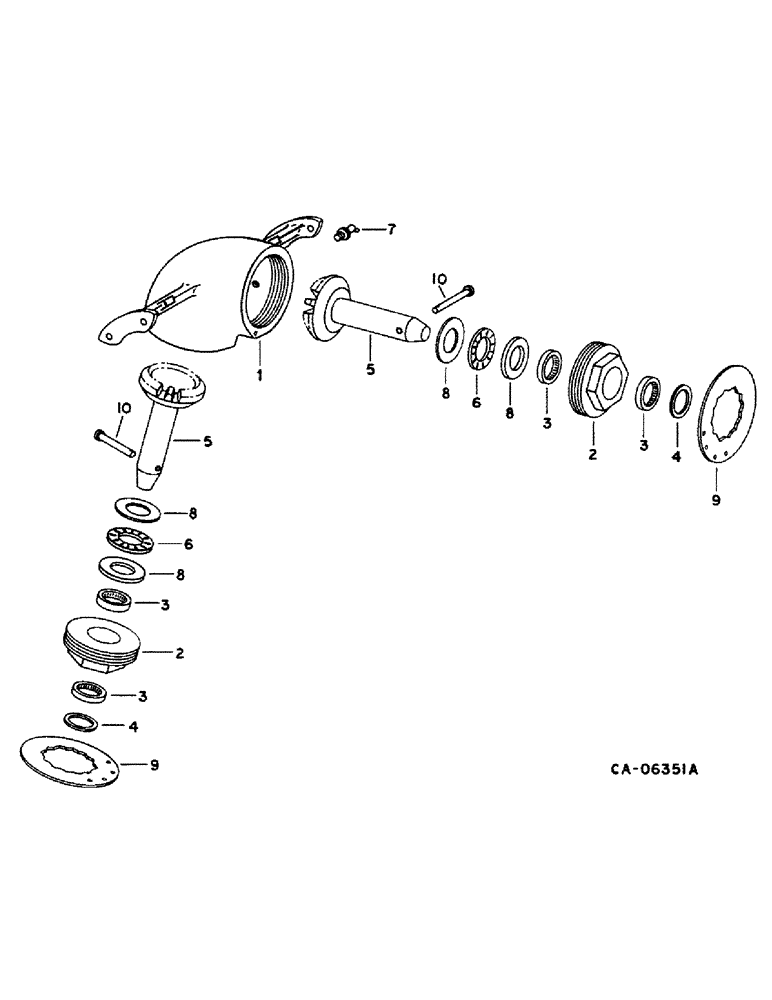

Схема запчастей Case IH 1482 - (26-12) - GRAIN TANK, UNLOADER UPPER GEAR CASE ASSEMBLY Grain Tank
2
8
4
3
3
8
6
3
5
9
1
9
8
7
2
8
10
5
6
3
4
10

Артикул

Название

Примечание

Количество

1324931C91

HOUSING

CASE ASSY, unloader upper gear, Includes: Ref. 1 - 9, Replaces 178189C91

1шт.

1324931C91R

REMAN-GEARBOX

1482

1шт.

1324931C91C

CORE-GEARBOX

Return Number

1шт.

1

HOUSING, unloader gears, Not serviced separately order case assy

1шт.

21335R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

2

178135C91

BEARING HOUSING,1.6255" ID x 1.75"

FITTING ASSY, upper gear case bearing, Includes: Ref. 3 & 4

2шт.

3

168732C91

CASING, BEARING ROLL,34.925 mm ID x 41.275 mm OD x 12.7 mm

BEARING, upper gear bearing housing

4шт.

4

179014C91

OIL SEAL

upper gear bearing housing oil

2шт.

5

1324929C1

GEAR

SET, upper case, 18T, Replaces 1300283C1 and 1309380C1

1шт.

6

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

upper gear case

2шт.

7

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4 45D taper drive thd lub

1шт.

8

607147R1

WASHER

WASHER, upper gear bearing

4шт.

9

178138C1

RETAINER

gear housing locking

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

1327766C1

PIN

2шт.

28346R1

COTTER PIN,3/16" x 1", Stainless

Pin, Split (Cotter), 3/16" x 1", Stainless

2шт.

Выбрано товаров: 18
