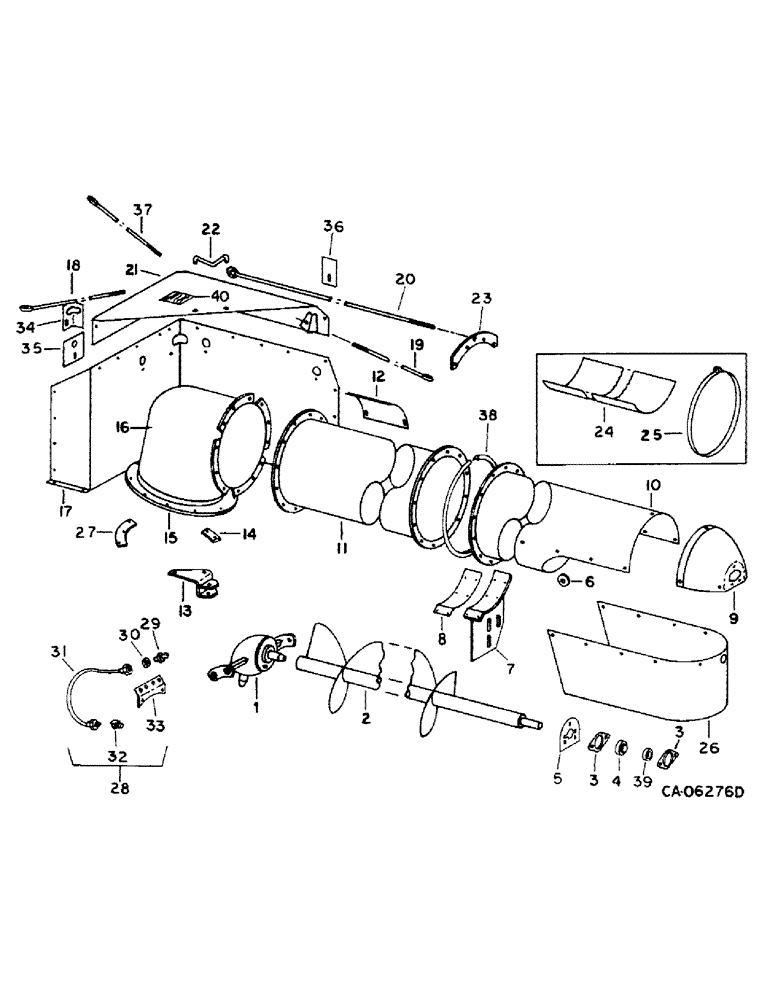

Запчасти Case IH 1482 (26-10) - GRAIN TANK, GRAIN TANK UNLOADER UPPER Grain Tank

1

HOUSING ASSY, unloader upper gears, Refer to this group under unloader upper gear case assy

1шт.

2

191107C2

AUGER

ASSY, unloader horizontal

1шт.

3

F9417

FLANGE

unloader auger outer brg

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING, unloader auger outer ball

1шт.

5

182838C1

SUPPORT

unloader rear tube cap

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

6

20824R1

WASHER

rear tub downspout, Replaces two 178168C1 strips

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

185618C1

SUPPORT

SADDLE ASSY, unloader tube

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

477589R1

WASHER

.406 x 1.500 x .105

1шт.

8

195191C1

STRIP

unloader tube saddle

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

9

182837C1

SUPPORT TUBE

CAP, unloader rear tube

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

10

195342C1

TUBE

ASSY, horizontal auger rear, not perforated

1шт.

10

195344C1

TUBE

ASSY, horizontal auger rear, perforated

1шт.

11

192089C1

UNLOADING TUBE

TUBE ASSY, horizontal auger front

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

12

178158C1

PLATE

unloader front tube inspection

1шт.

13

191121C2

SUPPORT ASSY.

SUPPORT ASSY, cylinder front

1шт.

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2 type 8

1шт.

9418646

NUT,7/16"-14, G8

7/16 type 8

1шт.

366863C1

LOCK WASHER

WASHER, 7/16 rib lock

1шт.

25960R1

JAM NUT,Jam, 7/16"-14, G8

7/16 phc jam type 8

1шт.

14

193472C2

PLATE

BAR, unloader tube keeper

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

15

193418C3

FLANGE

upper tube elbow

1шт.

106901

RIVET,Truss Hd, 1/4" x 7/8"

1/4 x 7/8 pln t/hd sol

1шт.

16

193417C93

TUBE

ELBOW ASSY, unloader upper tube, Includes: Ref. 15

1шт.

17

188006C2

SUPPORT

left center extension

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18

189674C2

ROD

unloader tube front lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd flange

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

19

193626C1

ROD

unloader tube LH front lower

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

20

181613C1

BOLT,1/2" - 20 x 2360mm

unloader tube rear support

1шт.

120371

NUT,1/2"-20, G5

1шт.

169228C1

NUT

1/2-20 lug

1шт.

21

1319645C91

SUPPORT TUBE

SUPPORT ASSY, unloader tube rod anchor, Replaces 187220C1, Includes: Ref. 41

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x lock

1шт.

22

193534C1

ROD

unloader tube support inner

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

23

181614C1

ANCHOR

ANGLE, unloader tube support rod outer

1шт.

24

178165C2

COVER

SUPPORT, auger tube section, For use w/ perforated tube

1шт.

25

178166C1

CLAMP

auger tube section, For use w/ perforated tube

4шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

186677C1

SPOUT, DISCHARGE

SPOUT, unloader rear tube down

1шт.

27

186657C2

SUPPORT

front keeper

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

28

BANK LUB, Includes: Ref. 29 - 33

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , str 1/4"-28 NPT x .54" lg

1шт.

30

F53473

LOCK NUT,1/8-27 NPSM

lub hose

4шт.

31

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Lube 0.14" ID x 22.00"

2шт.

31

937781R91

HOSE

lub, 27 in. - 685.8 mm

1шт.

31

937782R91

HOSE

lub, 31 in. - 787.4 mm

1шт.

32

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING, 1/4-28 45 deg

4шт.

33

185134C1

SUPPORT

lub fitting

1шт.

34

184578C1

ANGLE

SEAL, corner

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

35

186691C1

PLATE

SEAL, support rod

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

36

184577C1

BAR

rod hole seal

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

37

187238C1

BOLT

unloader tube RH front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

38

STRIP, tube flange seal, Use 39.50 in. from bulk roll marked 1327666C1

1шт.

39

564853R11

COLLAR

ASSY, auger outer locking

1шт.

40

1319494C1

PRODUCT GRAPHIC

caution grain tank

1шт.
