Запчасти Case IH 1482 (26-08) - GRAIN TANK, GRAIN TANK UNLOADER LOWER Grain Tank

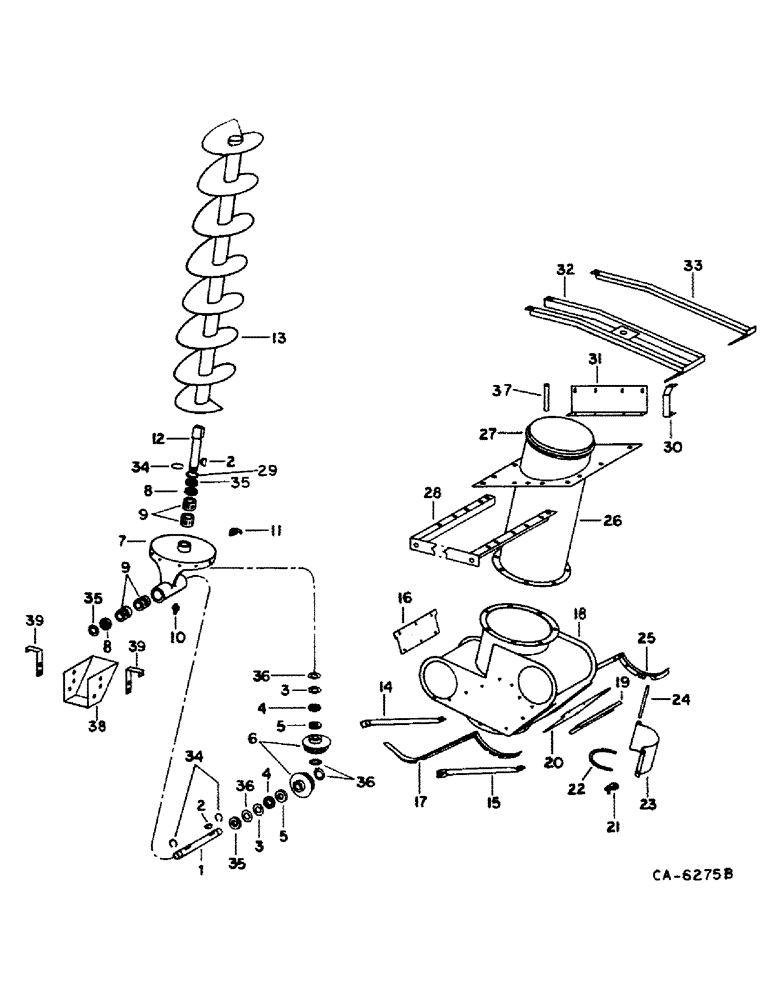

Схема запчастей Case IH 1482 - (26-08) - GRAIN TANK, GRAIN TANK UNLOADER LOWER Grain Tank
38
36
29
4
9
20
11
23
35
12
30
39
28
16
22
36
39
2
5
34
10
35
1
17
3
21
8
14
24
9
31
6
27
25
15
13
26
4
2
19
37
5
8
7
36
32
35
18
34
3
33

Артикул

Название

Примечание

Количество

1

1327738C2

SHAFT

horizontal auger gear case, Replaces 192790C1

1шт.

2

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

2шт.

3

157725C1

THRUST WASHER

WASHER, auger drive and vertical shaft thrust, Used w/ housing 193702C92

2шт.

3

1327731C1

THRUST WASHER

WASHER, auger drive and vertical shaft thrust, Used w/ housing 1327976C91

2шт.

4

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

horizontal auger and vertical shaft thrust

2шт.

5

607147R1

WASHER

WASHER, auger drive and vertical shaft thrust, Used w/ housing 193702C92

2шт.

5

1327732C1

THRUST WASHER,34.92mm ID x 52.37mm OD x 2.42mm Thk

auger drive and vertical shaft thrust, Used w/ housing 1327976C91

2шт.

6

186517C1

GEAR-SET

GEAR SET, vertical auger lower, 21T and 28 T

1шт.

7

1327976C91

HOUSING

ASSY, auger drive, Includes: Ref. 8 & 9, Replaces 193702C92 by also ordering two washers, 1327731C1 and six washers, 1327732C1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 x 1 hex-hd lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

8

157724C91

OIL SEAL

auger drive oil

2шт.

9

188126C91

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 25.4mm W

BEARING, shaft support needle

4шт.

10

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg pipe spec thd

1шт.

12

1327739C1

SHAFT

unloader vertical auger, Replaces 183489C2

1шт.

13

192835C1

AUGER

ASSY, unloader vertical

1шт.

14

191111C1

ROD

drive housing front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

15

191112C1

ROD

drive housing rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

16

191087C1

PLATE

BAR, grain tank bottom auger front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

17

192828C1

SUPPORT

auger housing LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

18

192475C3

HOUSING

ASSY, unloader lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

151670C1

SHIM

lower housing

1шт.

19

192834C1

CHANNEL

vertical support

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

191110C1

COVER

grain tank bottom rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21

155909C1

LATCH

unloader lower door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1.250 hd type 1

1шт.

22

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT, lower auger door, U

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

23

195329C1

FLAP

DOOR ASSY, unloader lower auger

1шт.

24

393069R1

PIN,6.35mm OD x 147.3mm L

lower auger door

1шт.

25

192829C1

SUPPORT

auger housing RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

26

192830C92

TUBE

ASSY, vertical auger, Includes: Ref. 27

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

27

178134C2

RING

unloader tube upper

1шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

1шт.

28

192849C1

SUPPORT

ASSY, vertical auger

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

29

183490C1

WASHER

WASHER, vertical shaft upper

1шт.

30

188330C1

SUPPORT ASSY.

SUPPORT ASSY, Serial Range: tank-rear

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flane lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

31

191189C1

SUPPORT

unloader

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

32

191126C1

SUPPORT

ASSY, unloader tube cylinder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

33

186112C1

SUPPORT ASSY.

SUPPORT ASSY, cylinder RH rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

34

A21619

CIRCLIP

RING, horizontal and vertical shaft snap

3шт.

35

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.406 x 2.25 x .12, hard

1шт.

36

188446C1

WASHER,35.71mm ID x 50.8mm OD x 0.76mm Thk

1.406 x 2.00 x .03, hard

1шт.

37

195400C1

SPACER

PIPE, unloader tube front support

1шт.

20141R1

BOLT,Hex, 3/8" - 16 x 7 1/2", Gr 2

3/8 x 7-1/2 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

38

186137C2

SUPPORT

SHIELD, unloader drive gears

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

39

186138C1

SUPPORT

unloader gear shield

2шт.

Выбрано товаров: 91
