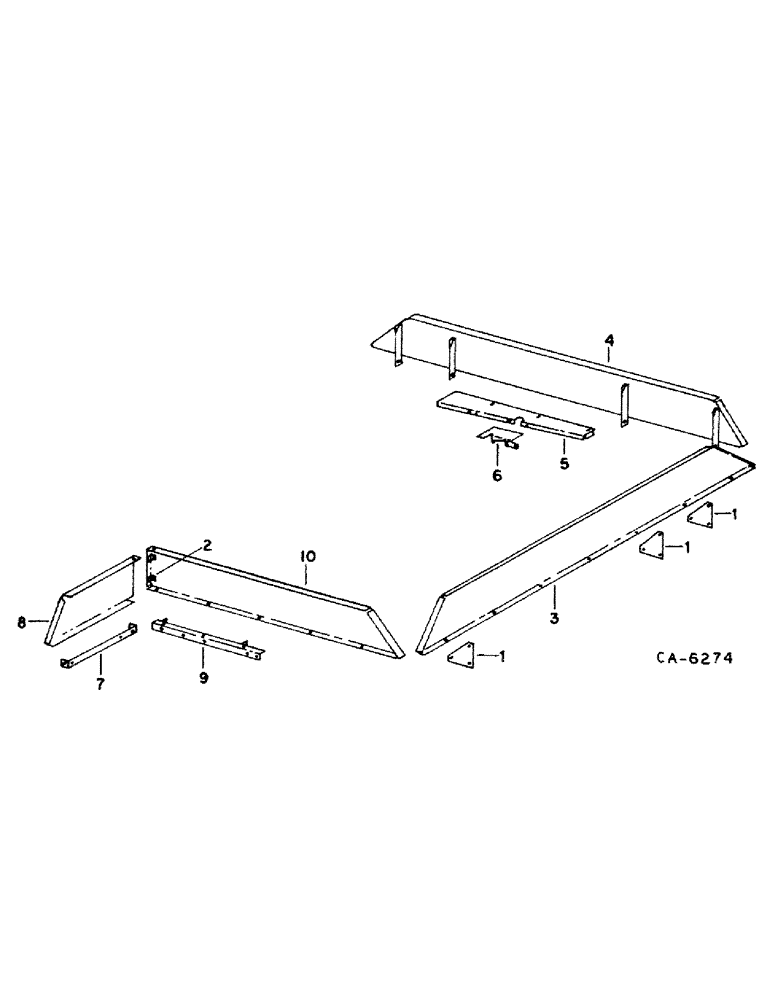

Запчасти Case IH 1482 (26-07) - GRAIN TANK, FOLDING GRAIN TANK EXTENSIONS Grain Tank

1

188007C1

BAR

extension pivot

4шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

2

174549C1

CLIP

upper LH extension support

2шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 pln but/hd sol

1шт.

3

193540C1

EXTENSION

upper rear

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

1шт.

1324377C1

SPRING WASHER

spring

1шт.

4

188379C1

EXTENSION

upper RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

1шт.

1324377C1

SPRING WASHER

spring

1шт.

5

188388C1

COVER

elevator shield

1шт.

6

188385C1

DOOR

ASSY, bolt access

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

567532R1

WASHER

.328 x .50 x .156

1шт.

7

188391C1

SUPPORT

grain tank extension pivot

1шт.

8

188381C1

EXTENSION

upper LH front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

1шт.

1327377C1

LINE

WASHER, spring

1шт.

9

188405C1

SUPPORT

ASSY, extension

1шт.

10

188383C1

EXTENSION

upper LH rear

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

1324377C1

SPRING WASHER

spring

1шт.
