Запчасти Case IH 1482 (26-01) - GRAIN TANK, GRAIN TANK Grain Tank

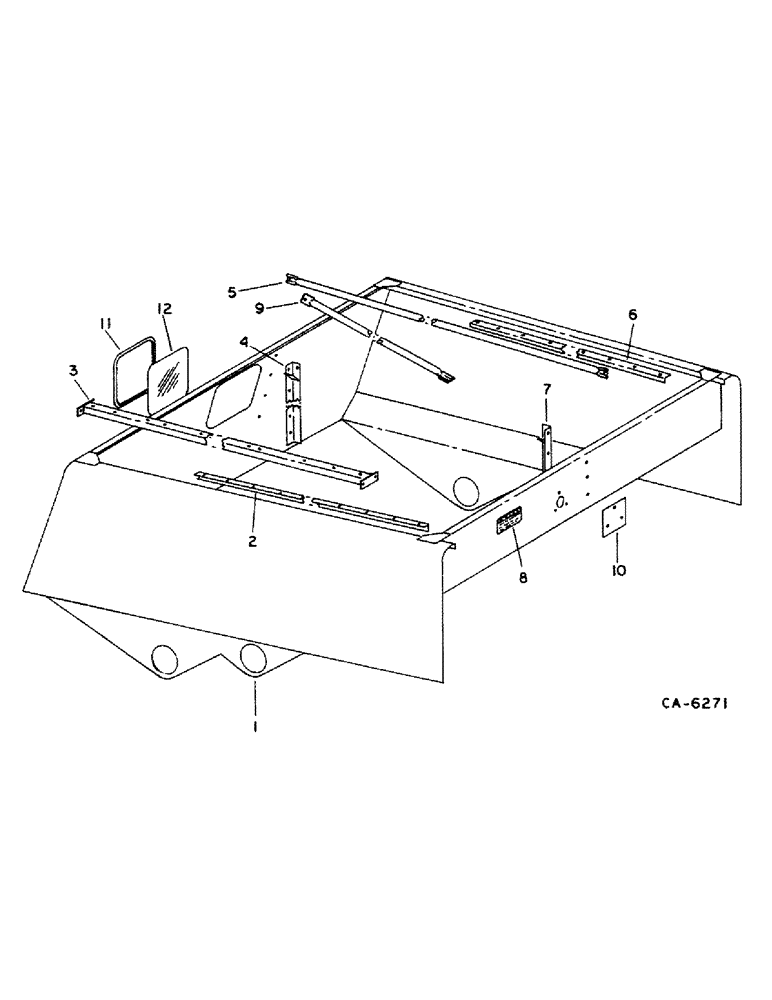

Схема запчастей Case IH 1482 - (26-01) - GRAIN TANK, GRAIN TANK Grain Tank
2
4
7
9
12
3
1
11
6
5
10
8

Артикул

Название

Примечание

Количество

1

1319642C92

TANK

W/ PRODUCT GRAPHIC, grain, Replaces 181950C91, Includes: Ref. 8

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

106969R1

WASHER

.344 x 1.250 x .054

1шт.

198820C1

GROMMET

PLUG, hole, 1-3/8 in. diameter

1шт.

2

189959C2

ANGLE

stiffener tank top left

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

189363C1

SUPPORT

ASSY, grain tank tie

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

4

187235C1

SUPPORT

ASSY, tie front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

5

189744C1

ROD

tie

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

6

189960C2

ANGLE

stiffener top right

1шт.

7

1329777C1

SUPPORT

ANGLE, tie rear, Replaces 181681C1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

8

1319495C1

PRODUCT GRAPHIC

caution, Replaces 188197C3

1шт.

9

187239C1

ROD

tie

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

10

189489C1

BAR

rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

SEAL, glass molding, Use 45 in. from 50 ft. roll marked 198131C3

1шт.

12

185608C1

GLASS

window

1шт.

Выбрано товаров: 32
