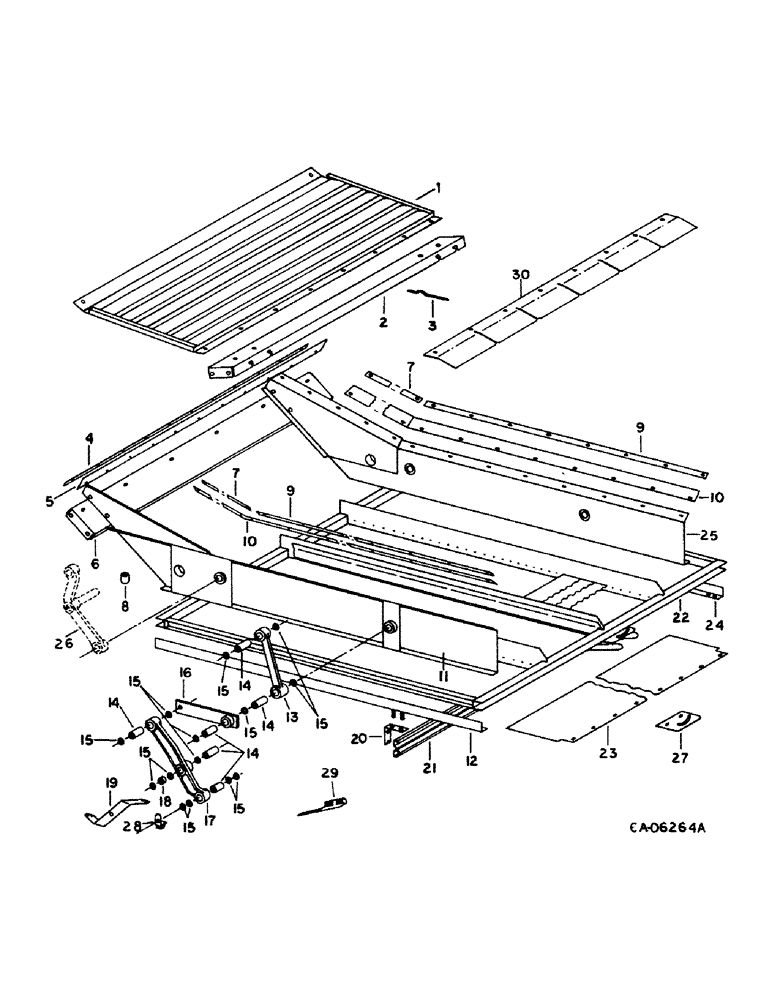

Запчасти Case IH 1482 (23-07) - AUGER BED, SHOE AND SHOE SIEVE, CHAFFER SIEVE Grain Pan, Shoe & Shoe Sieve

1

192057C1

GRAIN PAN

PAN ASSY, grain

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

192061C1

SUPPORT

chaffer pan

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

175114C1

FINGER,Formed, 1 Prong, 264mm L

grain pan

18шт.

4

192050C1

BAR

front chaffer frame seal

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

5

192049C1

SEALING STRIP

chaffer frame front

1шт.

6

192045C1

SUPPORT

chaffer frame

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

192052C2

BAR

chaffer frame seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/hwd tap

1шт.

8

186646C1

SPACER,5/8" Tube x 15/16"

chaffer sieve support front

2шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3/8 x 2-1/4 type 8

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

9

192053C1

BAR

chaffer frame seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

10

192051C3

SEALING STRIP

chaffer frame

2шт.

11

192039C3

RAIL

ASSY, chaffer left

1шт.

12

186369C1

ANGLE

chaffer support LH

1шт.

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

3/8 x 2-3/4 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

13

175131C91

ARM ASSY.

ARM ASSY, rear hanger, Includes: Ref. 14

2шт.

25930R1

JAM NUT

BOLT, 5/8 x 6-1/2 type 8

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 x 1.25 x .120 gage

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

14

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

rear hanger arm

1шт.

15

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

rear hanger amr

1шт.

16

188010C91

ARM ASSY.

ARM ASSY, shoe rear, Includes: Ref. 14

2шт.

17

192941C92

LEVER ASSY.

LEVER ASSY, shoe, Includes: Ref. 14

2шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 x 1.25 x .120 gage

1шт.

21714R1

WASHER

.906 x 1.500 x .105

1шт.

18724R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT, 5/8 x 4 crg type 1

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

18

168250C1

RING

SPACER, shoe and chaffer lever

2шт.

19

193107C2

SUPPORT

shoe lever LH

1шт.

19

193108C2

SUPPORT

shoe lever RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

20

186674C1

ANGLE

rear deflector

2шт.

120376

NUT,5/16"-18, G5

1шт.

156466

SCREW,Cross Flat Hd, 5/16" - 18 x 1"

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

193970C1

CHANNEL

REAR

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

1330687C1

GRAIN SIEVE

SIEVE ASSY, 1-1/8 adj chaffer, Includes: Ref. 27 (Replaces 193996C3) SB81-87

1шт.

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT, 3/8 x 1-1/4 hex washer hd gib

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

23

195184C2

SEAL SHEET

chaffer

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

20824R1

WASHER

.344 x 1.500 x .054

1шт.

106969R1

WASHER

.344 x 1.250 x .054

1шт.

24

186370C1

ANGLE

chaffer support RH

1шт.

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

3/8 x 2-3/4 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

25

192040C3

RAIL

ASSY, chaffer right

1шт.

26

LEVER ASSY, chaffer drive hanger, Refer to this group under shaker shaft and auger drive

2шт.

27

186675C1

ADJUSTING PLATE

chaffer lever

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 crg type 1

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

1шт.

28

187996C1

MAGNET

ASSY, shoe

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4 x 3/4 flange lock

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

29

187998C1

SUPPORT

shoe sensor

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

30

1319259C1

COVER

SUPPORT, finger cover

1шт.
