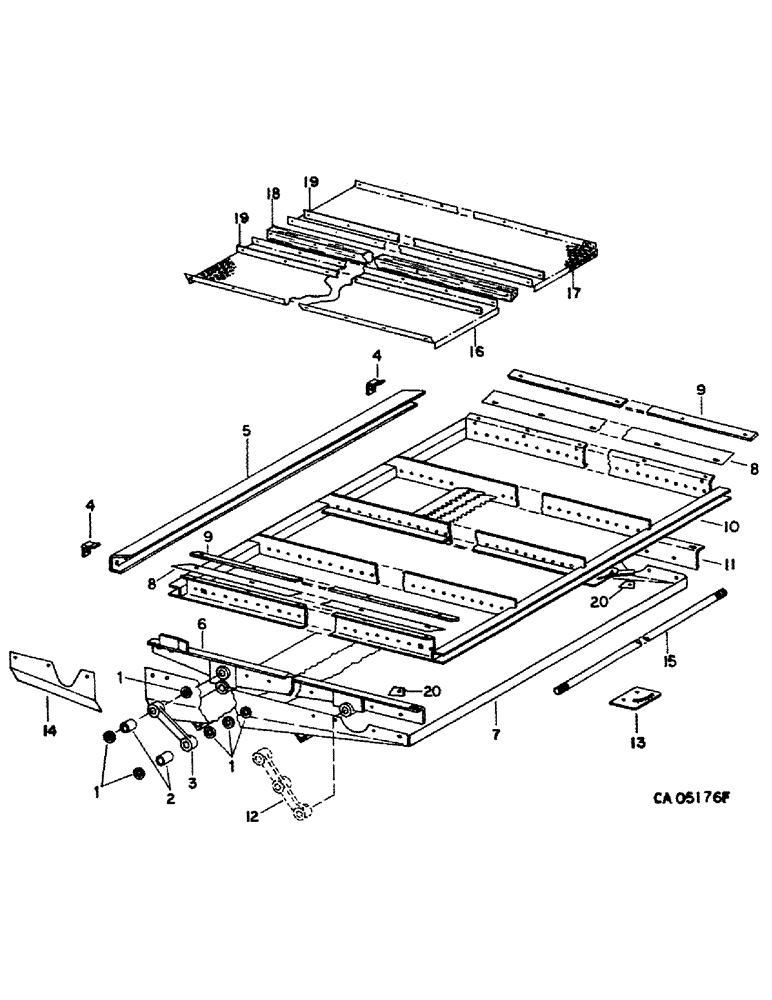

Запчасти Case IH 1482 (23-05) - AUGER BED, SHOE AND SHOE SIEVE, SHOE SIEVE Grain Pan, Shoe & Shoe Sieve

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

shoe hanger arm bushing

10шт.

2

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe hanger arm

4шт.

3

175160C91

LEVER

HANGER ASSY, shoe front, Includes: Ref. 2

2шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 x 1.25 x .120 gage znd

1шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 crg type 1

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

9412231

NUT

5/8 phc P/T lock type 8

1шт.

4

182684C2

CLIP

shoe front retainer

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

1319239C1

ANGLE

shoe front

1шт.

120376

NUT,5/16"-18, G5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

1302070C3

SUPPORT

ASSY, shoe side LH

1шт.

7

191941C1

FRAME

BOTTOM ASSY, shoe, Serial Range: -20000

1шт.

7

1319209C1

BOTTOM

ASSY, shoe, Increased slope, Start Serial: 20001

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

8

192192C1

SEALING STRIP

shoe sieve

2шт.

9

192193C1

BAR

shoe sieve seal

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

10

193960C2

SIEVE

ASSY, shoe, Includes: Ref. 13

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

11

1302071C3

SUPPORT

ASSY, shoe side RH

1шт.

12

LEVER ASSY, shoe, Refer to this group under chaffer sieve

1шт.

13

186675C1

ADJUSTING PLATE

shoe lever

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 crg type 1

1шт.

126177

WING NUT

NUT, 1/4 wing

1шт.

14

1302335C2

SUPPORT

forward shoe return LH

1шт.

14

1302336C2

SUPPORT

forward shoe return RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

1319216C1

ROD

return pan bottom rear, Parts accessory

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

16

1319282C1

SCREEN

perforated side section, For use w/ 193960C2 sieve

2шт.

17

1319283C1

SCREEN

perforated mid section, For use w/ 193960C2 sieve

4шт.

18

1319284C1

BAR

wood spacer, For use w/193960C2 sieve

1шт.

19

1319300C1

BAR

screen fastener backing, For use w/ 193960C2 sieve

10шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

1319219C1

PLATE

BAR, shoe return pan filler

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1319274C91

FENDER

PACKAGE ASSY, shoe return pan, w/ increased slope, Parts accessory, Consists of:

1шт.

1319209C1

BOTTOM

ASSY

1шт.

1319216C1

ROD

1шт.

1302335C2

SUPPORT

LH

1шт.

1302336C2

SUPPORT

RH

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock

2шт.

1319219C1

PLATE

BAR, pan filler

2шт.

INSTRUCTIONS (NSS)

1шт.

1319277C91

PACKAGE

alfalfa, Consists of:

1шт.

1319300C1

BAR

10шт.

1319284C1

BAR

1шт.

1319283C1

SCREEN

4шт.

1319282C1

SCREEN

2шт.

1319239C1

ANGLE

SUPPORT

1шт.

1319259C1

COVER

SUPPORT

1шт.

INSTRUCTIONS (NSS)

1шт.
