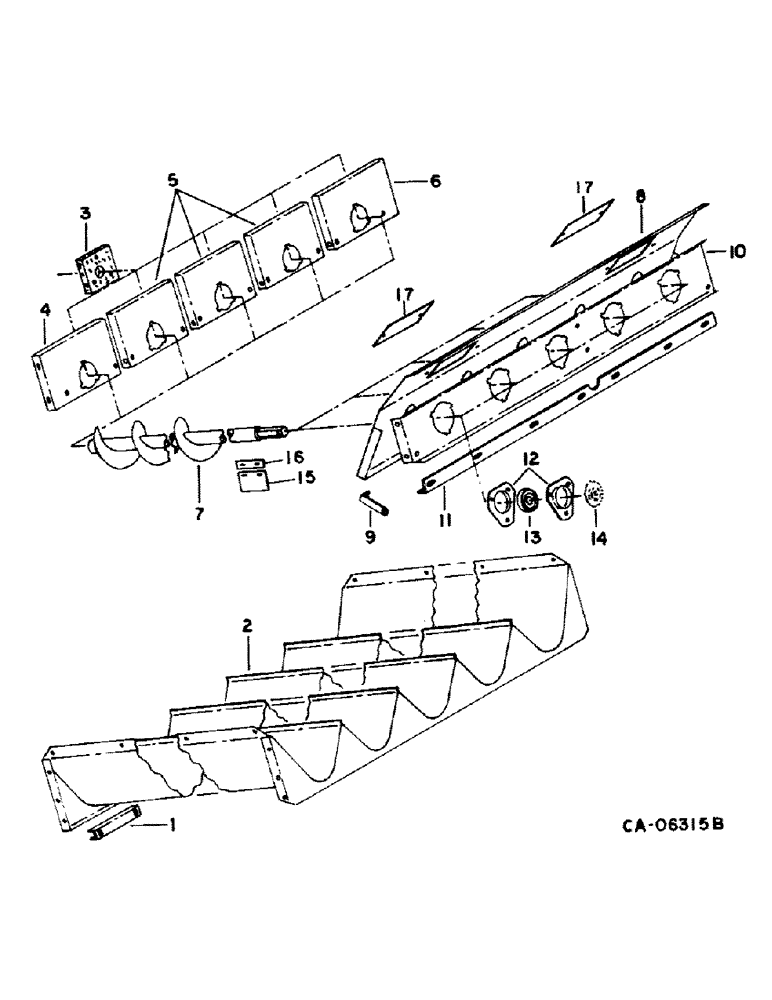

Запчасти Case IH 1482 (23-01) - AUGER BED, SHOE AND SHOE SIEVE, AUGER BED Grain Pan, Shoe & Shoe Sieve

1

185068C1

COVER

auger through clean-out

5шт.

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

BOLT, clean-out wing

1шт.

564791R1

SPRING NUT

1/4-20 Tinnerman

1шт.

2

191645C2

TROUGH

ASSY, auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

193414C2

BOARD

front auger brg

5шт.

27451R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT, 3/8 x 2-1/4 crg type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

4

191660C1

SUPPORT

front auger LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

191659C1

SUPPORT

front auger center

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

191661C1

SUPPORT

front auger RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

7

193398C1

AUGER

ASSY, RH rotation, Serial Range: -10000

5шт.

7

1308541C1

AUGER

ASSY, RH rotation, Start Serial: 10001

5шт.

20885R1

WASHER

1.156 x 2.000 x .054

1шт.

131019

SWEEP

1.062 x 2.000 x .108

1шт.

8

1321372C1

FILLER

rotor to auger drive support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

193554C1

SUPPORT

pan

2шт.

10

191656C1

SUPPORT

auger drive gears, Serial Range: -10000

1шт.

10

1309226C1

SUPPORT

auger drive gears, Start Serial: 10001

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

11

188360C1

STIFFENER

ANGLE, auger support stiffener

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

12

180955C1

FLANGED BEARING,0.375"

FLANGE, auger drive bearing, Serial Range: -10000

10шт.

12

571424R1

FLANGE

auger drive bearing, Start Serial: 10001

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

13

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, auger drive, Serial Range: -10000

5шт.

13

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING ASSY, auger drive, Start Serial: 10001

5шт.

14

GEAR, auger drive bevel, Refer to this group under shaker shaft and auger drive

1шт.

15

1302112C1

STRIP

auger bed grain spreader

1шт.

16

1302113C1

BAR

grain spreader strip

1шт.

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

no. 28 type F

2шт.

17

1319548C1

BAR

COVER, grain loss sensor

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1300638C1

KIT

PACKAGE, auger adapter, To adapt swage tube augers, Consists of:

1шт.

SUPPORT, auger bearing (NSS)

1шт.

PLATE (NSS)

1шт.

BOLT (NSS)

3шт.

BOLT, 14T (NSS)

1шт.

INSTRUCTIONS (NSS)

1шт.

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING, auger

1шт.

571424R1

FLANGE

auger bearing

2шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1300666C91

KIT

PACKAGE, auger bed grain spreader strips, Consists of Ref. 15 & 16 and instructions

1шт.
