Запчасти Case IH 1482 (25-11) - GRAIN AND TAILINGS ELEVATORS, ELEVATOR DRIVE, GRAIN Elevators

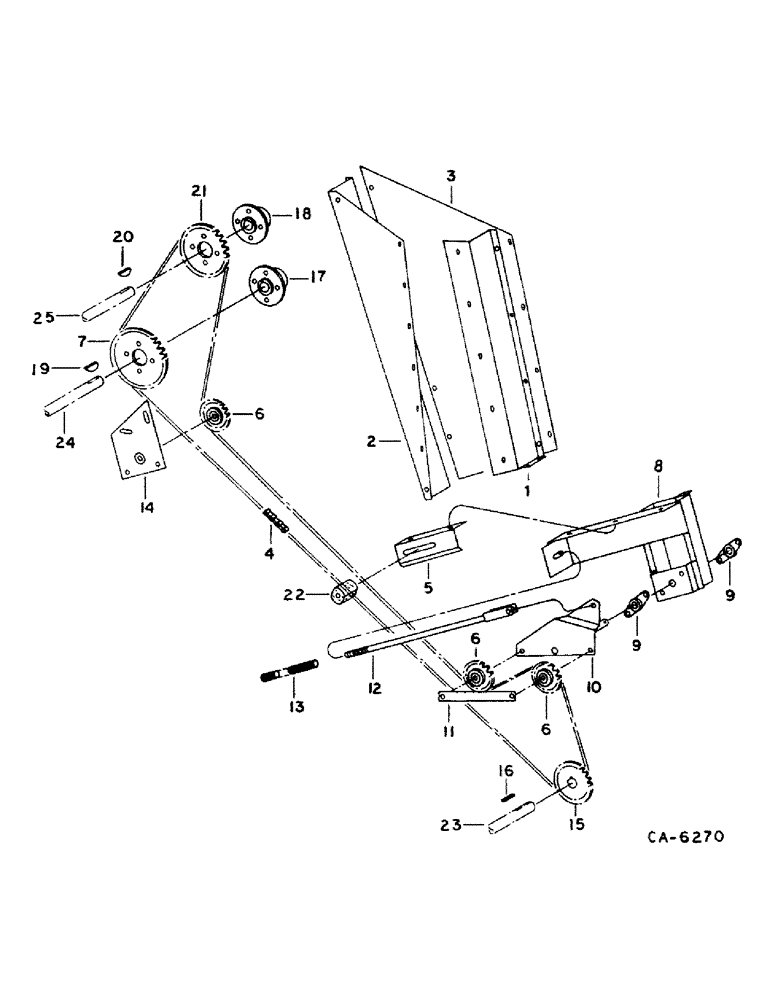

Схема запчастей Case IH 1482 - (25-11) - GRAIN AND TAILINGS ELEVATORS, ELEVATOR DRIVE, GRAIN Elevators
19
9
3
23
22
2
4
18
10
15
21
20
9
6
6
6
7
8
14
1
11
5
25
17
13
12
16
24

Артикул

Название

Примечание

Количество

1

188265C1

SHIELD

inner elevator upper

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

188266C1

SHIELD

inner elevator lower

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

188267C1

SHIELD

outer elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

CHAIN ASSY, grain elevator drive, Use 285 links from 10 ft roll marked 1791D and 1 connecting link 1310D

1шт.

5

1302487C1

SUPPORT

ASSY, elevator tightener block

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

631905R91

SPROCKET

elevator chain idler, 17T

3шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

7

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 27T, fast speed

1шт.

7

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 27T, slow speed, Parts accessories

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

8

182765C1

SUPPORT

ASSY, idler pivot

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9

A63366

SPHERICAL BEARING,19mm ID

BEARING ASSY, idler pivot

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

182758C1

ARM

ASSY, doubler idler pivot

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108 (Or as required)

6шт.

11

182771C1

BAR

double idler tie

1шт.

12

182768C1

ROD ASSY.

ROD ASSY, idler spring tension

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1.000 clevis

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

13

523677R1

SPRING

double idler tensioning

1шт.

14

182777C1

SUPPORT ASSY.

SUPPORT ASSY, stationary idler

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

15

192139C2

SPROCKET

ASSY, grain elevator drive, 25T

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq/hd c/pt set

1шт.

16

581306R1

KEY,5/16" Sq x 1 1/4", Par

, Serial Range: -20000

1шт.

16

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff, Start Serial: 20001

1шт.

17

1302217C1

HUB

grain elevator drive sprocket, Serial Range: -30000

1шт.

17

1302216C1

HUB

grain elevator drive sprocket, Start Serial: 30001

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 phc sq/hd c/pt set

1шт.

18

1302216C1

HUB

grain elevator sprocket

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 phc sq/hd c/pt set

1шт.

19

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

Used w/ hub 1302217C1 #15, 1/4" x 1", HT, Serial Range: -30000

1шт.

19

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hardened, Used w/ hub 1302216C1, Start Serial: 30001

1шт.

20

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hardened

1шт.

21

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 27T

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

22

582018R1

BLOCK

drive chain tightener

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

606546R1

JAM NUT

5/8 hex jam

1шт.

124847

COLLAR

5/8 jam type 5

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

23

SHAFT, elevator drive, Refer to this group under tailings elevator drive and jackshaft

1шт.

24

AUGER ASSY, grain delivery, Refer to this group under grain elevator

1шт.

25

SHAFT, grain elevator head, Refer to this group under grain elevator

1шт.

Выбрано товаров: 74
