Запчасти Case IH 1482 (25-09) - GRAIN AND TAILINGS ELEVATORS, TAILINGS ELEVATOR DRIVE AND JACKSHAFT Elevators

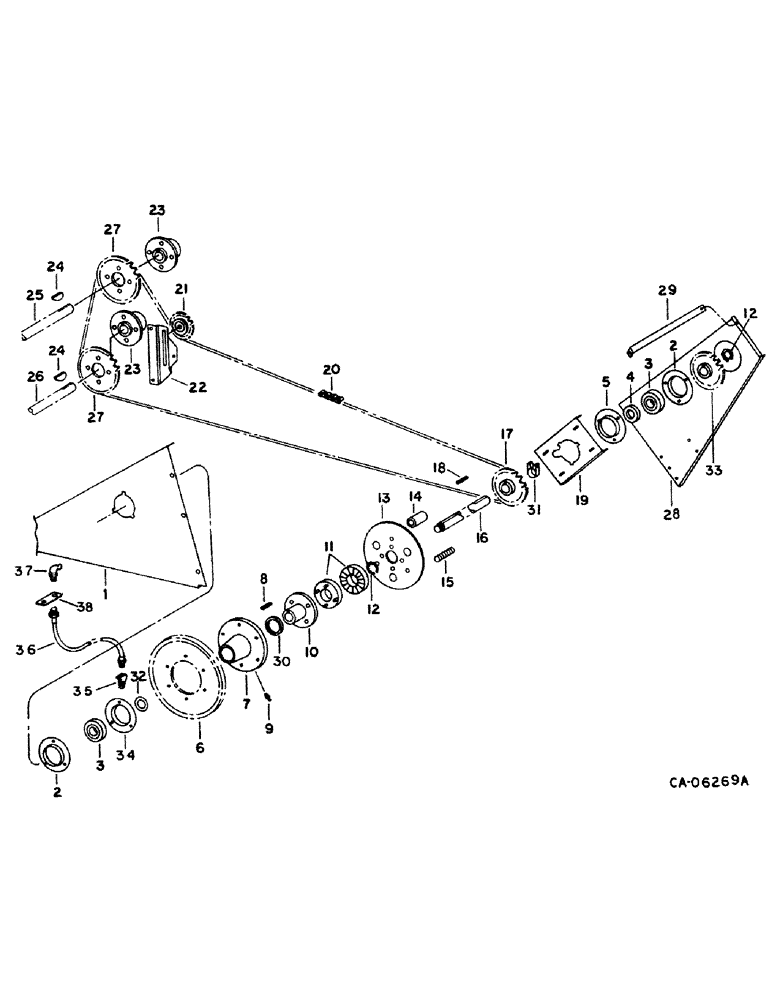

Схема запчастей Case IH 1482 - (25-09) - GRAIN AND TAILINGS ELEVATORS, TAILINGS ELEVATOR DRIVE AND JACKSHAFT Elevators
37
26
19
1
25
27
34
4
15
12
12
8
3
32
2
11
36
21
9
27
10
23
3
29
17
31
33
38
6
5
16
24
28
13
30
2
22
24
23
20
35
18
7
14

Артикул

Название

Примечание

Количество

1

183206C1

SUPPORT

ASSY, elevator jackshaft inner

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

2

473092R1

FLANGED BEARING

jackshaft bearing

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

3

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

BEARING ASSY, elevator jackshaft

2шт.

4

455104R11

COLLAR

W/ SET SCREW, jackshaft bearing

1шт.

5

939462R91

FLANGE

W/ LUB FITTING, jackshaft outer

1шт.

6

PULLEY ASSY, jackshaft driven, Refer to group 20 under belt dive, RH side

1шт.

7

183210C91

HUB

elevator jackshaft drive, Includes: Ref. 30

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

1шт.

23668R1

CLEVIS PIN,3/16" x 1 3/4"

PIN, CLEVIS, 3/16" x 1 3/4"

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

8

586879R1

KEY

5/16 x 2 sq parallel

1шт.

9

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

10

183212C1

HUB ASSY.

HUB ASSY, drive slip clutch, Serial Range: -20000

1шт.

10

1319232C1

HUB

ASSY, drive slip clutch, Start Serial: 20001

1шт.

11

B12170

RATCHET,Clutch Slip, 94.49mm

elevator drive slip clutch

2шт.

12

609053R1

SNAP RING,#125, Ext

Ring, Snap, , jackshaft drive #125, Ext, Serial Range: -20000

1шт.

12

1319235C1

RING

jackshaft drive, Start Serial: 20001

1шт.

13

194835C2

RETAINER

elevator drive slip clutch

1шт.

28139R1

BOLT,Hex, 3/8" - 16 x 6 1/2", Gr 5

3/8 x 6-1/2 znd type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

131017

WASHER

.812 x 1.469 x .108

1шт.

178375R1

WASHER

.781 x 1.250 x .054

1шт.

14

186916C2

BUSHING,11.18mm ID x 19.05mm OD x 87.38mm L

elevator jackshaft

3шт.

15

C13263

SPRING

elevator drive slip clutch

3шт.

477589R1

WASHER

.406 x 1.500 x .105

1шт.

16

194797C3

SHAFT

elevator drive, Serial Range: -20000

1шт.

16

1319247C1

SHAFT

jackshaft drive, Start Serial: 20001

1шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

23668R1

CLEVIS PIN,3/16" x 1 3/4"

PIN, CLEVIS, 3/16" x 1 3/4"

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

21226R1

WASHER

1.28 x 2.000 x .105

1шт.

17

192139C2

SPROCKET

ASSY, tailings elevator drive, 25T

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq/hd c/pt set

1шт.

18

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

19

192138C2

BRACKET

CHANNEL, jackshaft outer

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

CHAIN ASSY, tailings elevator drive, Use 153 links from 10 ft roll marked 1791D and one connecting link 1310D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

21

631905R91

SPROCKET

tailings elevator drive idler, 17T

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 crg type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

22

1302069C2

SUPPORT

tailings elevator drive chain idler

1шт.

22859R1

WASHER

.344 x .750 x .164

1шт.

23

1302217C1

HUB

tailings elevator drive and driven sprocket

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 phc sq/hd c/pt set

1шт.

24

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

25

SHAFT, tailings elevator head, Refer to this group under tailings elevator

1шт.

26

AUGER ASSY, tailings delivery, Refer to this group under tailings elevator

1шт.

27

188188C1

SPROCKET ASSY.

SPROCKET, tailings elevator drive and driven, 27T

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

28

192190C1

SUPPORT

outer elevator jackshaft

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

29

192230C1

SUPPORT

outer elevator jackshaft

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

30

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

slip clutch hub

2шт.

31

225265R1

CLAMP

inner drive sprocket

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

32

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

SPACER, elevator drive shaft

5шт.

33

SPROCKET, grain elevator drive, Refer to this group under grain elevator drive

1шт.

34

489871R1

FLANGE

W/ LUB ADAPTER, jackshaft inner

1шт.

35

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING, 1/4-28 90 deg adapter

1шт.

36

171931C1

HOSE

ASSY, inner bearing, 15 in., 381 mm, Replaces 937774R91

1шт.

37

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg, For use with hose 937774R91 only

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

38

631197R1

STRIP, lub hose support, Serial Range: -20000

1шт.
