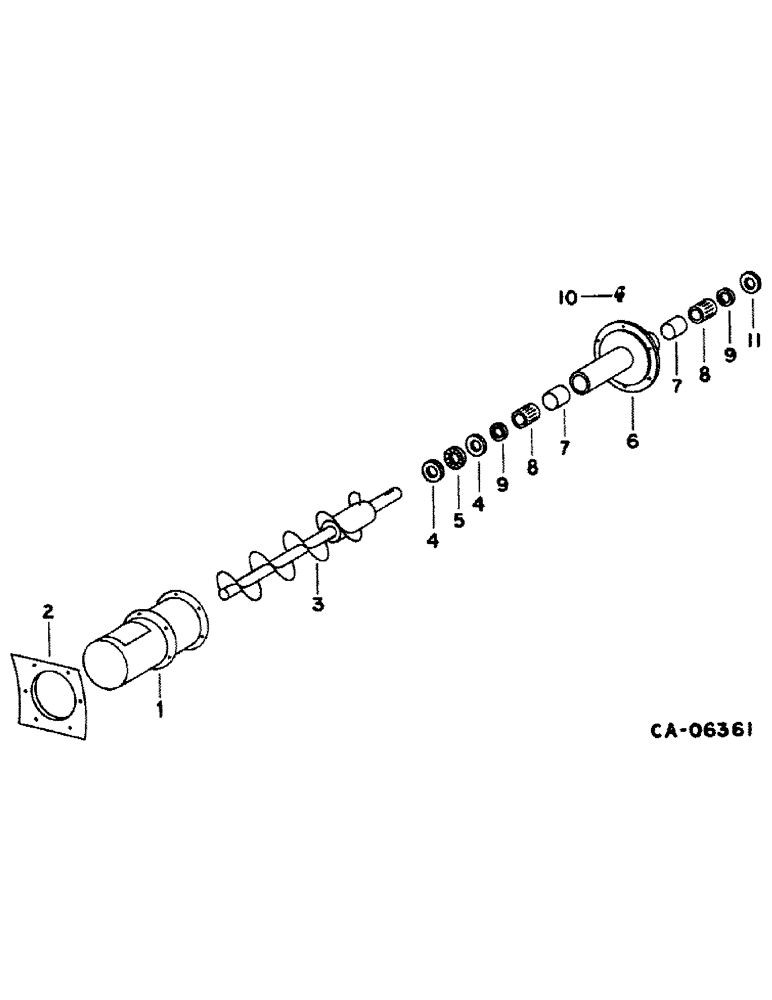

Запчасти Case IH 1482 (25-08) - GRAIN AND TAILINGS ELEVATORS, TAILINGS DELIVERY AUGER Elevators

1

191854C1

TUBE,356.9 mm Length

ASSY

1шт.

120376

NUT,5/16"-18, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

186700C1

COVER

FLANGE, tube

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

192563C1

AUGER

ASSY, tailings delivery

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.000 x .108

1шт.

4

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

BEARING, delivery auger thrust

2шт.

5

1324864C91

THRUST BEARING

delivery auger, Replaces 368372R91

1шт.

6

192783C1

BEARING HOUSING,2" ID x 8" OD x 6.3"

HUB, distributor auger bearings

1шт.

151670C1

SHIM

shim

1шт.

7

588997R1

BUSHING,34.99mm ID x 36.55mm OD x 25.27mm L

distributor auger bearing hub

2шт.

8

568029R91

BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W

BEARING, distributor auger hub

2шт.

9

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

distributor auger hub bearing

2шт.

10

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg

1шт.

11

21885R1

WASHER

1.031 x 2.000 x .054

4шт.
