Запчасти Case IH 1482 (25-07) - GRAIN AND TAILINGS ELEVATORS, TAILINGS AUGER TROUGH Elevators

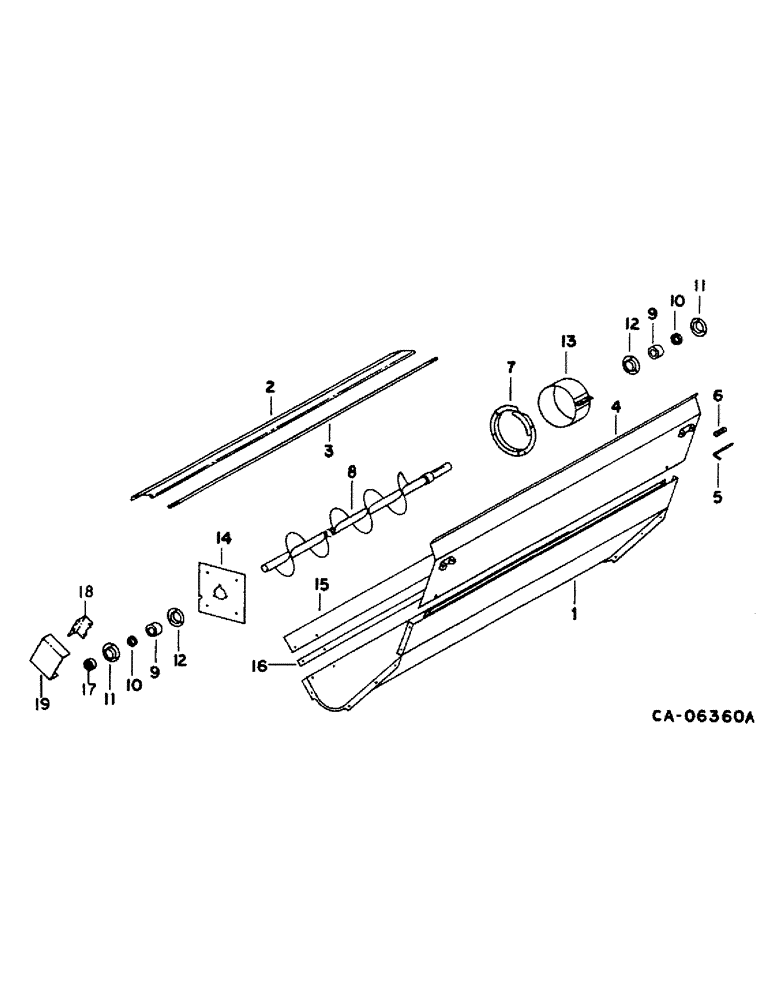

Схема запчастей Case IH 1482 - (25-07) - GRAIN AND TAILINGS ELEVATORS, TAILINGS AUGER TROUGH Elevators
19
7
14
2
11
16
18
9
13
15
11
4
12
8
1
9
17
5
10
10
12
6
3

Артикул

Название

Примечание

Количество

1

192026C3

TROUGH

ASSY, auger

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

2

185196C1

DOOR

auger trough

1шт.

120376

NUT,5/16"-18, G5

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

3

185197C1

ROD

door

1шт.

4

191978C1

GATE ASSY

TAILGATE ASSY

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

186736C1

ROD

PIN, tailgate

2шт.

6

540815R1

SPRING

tailgate lock pin

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

469668R1

WASHER

.406 x .734 x .056

1шт.

7

160324C2

FLANGE

auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

8

192549C2

AUGER

ASSY

1шт.

478258R1

WASHER

1.156 x 1.750 x .105

1шт.

9

939475R92

BEARING ASSY

ASSY, auger

2шт.

10

557115R11

COLLAR

COLLAR, bearing locking

1шт.

11

939460R91

FLANGE

W/ STR LUB FITTING, bearing

2шт.

12

939461R1

FLANGE

bearing grooved

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

13

195075C1

SCREEN

ASSY, auger extension, perforated

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

13

192696C1

EXTENSION

ASSY, auger extension, non-perforated

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

14

183158C1

COVER

BAR, left bearing support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

15

NOT USED IN THIS APLLICATION

1шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

1301135C1

COLLAR

sensor

1шт.

18

183869C1

BRACKET

sensor

1шт.

19

187616C1

SUPPORT

auger sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

Выбрано товаров: 45
