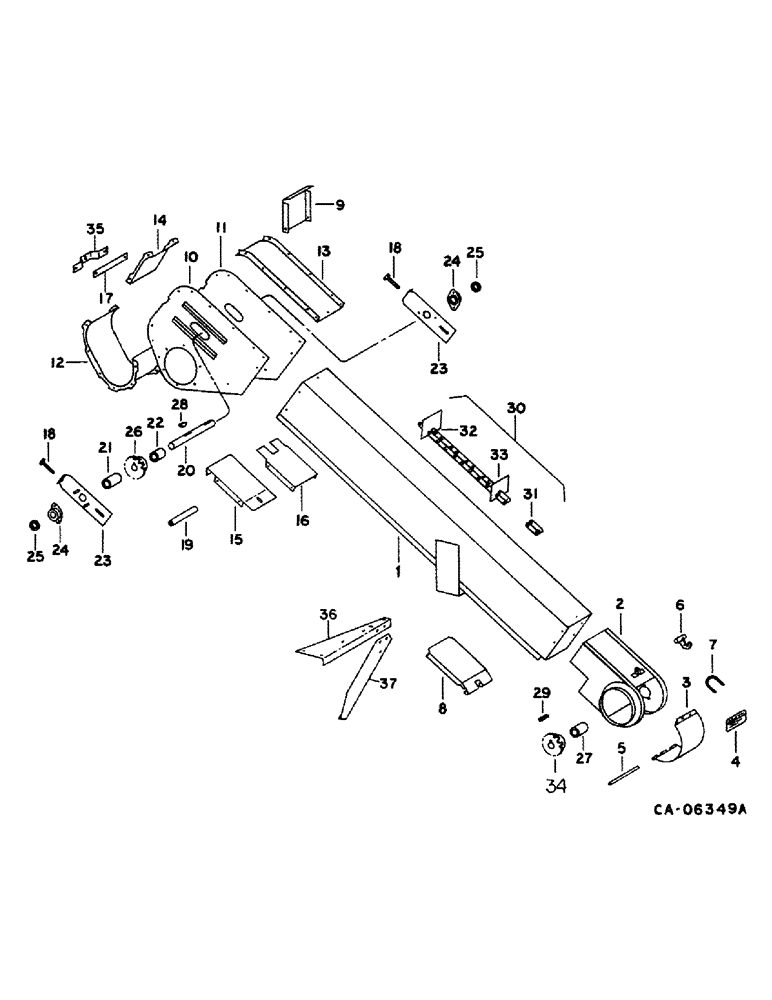

Запчасти Case IH 1482 (25-05) - GRAIN AND TAILINGS ELEVATORS, TAILINGS ELEVATOR Elevators

1

192430C2

ELEVATOR TUBE

TUBE ASSY

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

2

183160C1

BOOT

ASSY

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

3

174193C1

DOOR

boot, perforated

1шт.

3

156910C1

DOOR

boot, non-perforated, Replaces 184560C91

1шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

U17024

PIN

boot door

1шт.

6

155909C1

LATCH

door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1.250 hd type 1

1шт.

7

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT, boot door

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

8

191790C2

END

HINGE, false bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

192426C1

SUPPORT

upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

181366C1

SIDE PLATE

SIDE ASSY, head LH

1шт.

11

181367C1

SIDE PLATE

SIDE ASSY, head RH

1шт.

12

188119C1

TROUGH

ASSY, head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

13

191783C1

TOP COVER

SUPPORT, head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

191776C1

COVER

head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

15

191782C1

SUPPORT

head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

16

181327C1

BOTTOM

SUPPORT, head false

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

181375C1

SUPPORT

ASSY, tightener bolt

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

18

667486R1

BOLT

BOLT, conveyor chain tightener bar

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

19

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

1шт.

24666R1

BOLT,Hex, 5/16" - 18 x 7", Gr 2

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

20

191785C1

SHAFT

head

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

1шт.

21

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

1шт.

22

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

1шт.

23

181364C1

SUPPORT

ASSY, head shaft

2шт.

24

214490C91

BALL BEARING,25.4mm ID

BEARING, head shaft

2шт.

25

455102R21

COLLAR

ASSY, bearing locking

2шт.

26

168683C1

SPROCKET

conveyor chain, 7 T

1шт.

27

28082R1

SPACER,1 3/8" Tube x 1 3/8"

1.15 x 1.38 x 1.38 boot sprocket

1шт.

21716R1

WASHER

boot sprocket

1шт.

28

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

29

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 parallel

1шт.

30

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSY, chain w/ flight

1шт.

31

631253R91

LINK

conveyor chain plain

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

31

631254R91

DRAG LINK

LINK, connecting

1шт.

31

23880R1

OFFSET LINK

LINK, offset

1шт.

32

LINK, attaching, For use w/ 1303123C91 conveyor (NSS)

1шт.

32

150722C91

LINK

attaching, For use w/ 1303124C92 conveyor

1шт.

33

1303123C91

ELEVATOR CHAIN

W/ FLIGHT, rubber

1шт.

33

1303124C92

RUBBER FLIGHT

CONVEYOR W/ FLIGHT, steel, Parts accessory, Serviceable items are:

1шт.

1303125C1

STEEL FLIGHT

FLIGHT

1шт.

150722C91

LINK

1шт.

1303116C1

RUBBER FLIGHT

FLIGHT

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

185315C1

RIVET

3/8 x 5/8 pln but/hd sol

1шт.

34

1302200C1

SPROCKET ASSY.

SPROCKET, boot, 7 T

1шт.

35

181376C1

CLAMP

SUPPORT, tightener bolt

1шт.

36

SUPPORT, grain elevator upper, Refer to this group under grain elevator

1шт.

37

SUPPORT, grain elevator lower, Refer to this group under grain elevator

1шт.
