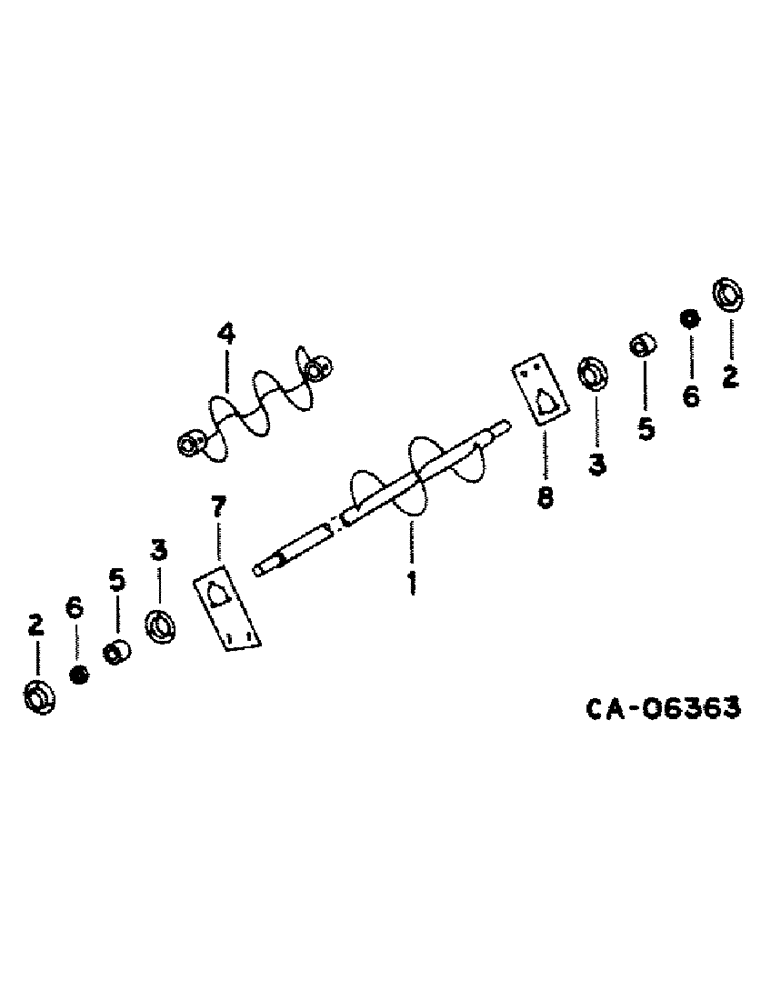

Запчасти Case IH 1482 (25-04) - GRAIN AND TAILINGS ELEVATORS, GRAIN DELIVERY AUGER Elevators
№
Артикул
Название
Примечание
Количество
1
1319709C1
AUGER
delivery, Replaces 191915C1
1шт.
2
180383C91
FLANGED BEARING,3.75" OD x 0.4062"
FLANGE W/ 45 DEG LUB FITTING, (2) required w/ auger 191915C1, (1) required w/ auger 1319709C1 at left end of auger
2шт.
2
167878C11
FLANGE
W/ LUB FITTING AUGER BEARING, For use w/ auger 1319709C1 at right end of auger
1шт.
3
937517R1
FLANGE
bearing grooved, (2) required w/ auger 191915C1, (1) required w/ auger 1319709C1 at left end of auger
1шт.
3
202909C1
BEARING HOUSING
FLANGE, auger bearing grooved, For use w/ auger 1319709C1 at right end of auger
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
4
162103C91
AUGER
ASSY, distributor
1шт.
102604
SET SCREW,Hex Skt, 7/16" - 14 x 1/2"
1шт.
5
482303R92
BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"
(2) required w/ auger 191915C1, (1) required w/ auger 1319709C1 at left end of auger
1шт.
5
939475R92
BEARING ASSY
delivery auger, For use w/ auger 1319709C1 at right end of auger
1шт.
6
455102R21
COLLAR
w/ set screw, (2) required w/ auger 191915C1, (1) required w/ auger 1319709C1 at left end of auger
1шт.
6
557115R11
COLLAR
COLLAR, bearing locking, For use w/ auger 1319709C1 at right end of auger
1шт.
7
NOT USED IN THIS APPLICATION
1шт.
8
183466C1
BAR
bearing RH, For use w/ auger 191915C1
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
8
1319839C1
PLATE
BAR, distribution auger bearing, For use w/ auger 1319709C1
1шт.
1319966C91
PACKAGE
ASSY, auger, Consists of:, Serial Range: -30000
1шт.
Auger 130970C1 must be ordered for use with this package.
1шт.
1319714C1
PANEL
SIDE ASSY, elevator head, RH
1шт.
1319839C1
PLATE
auger bearing
1шт.
939475C92
BEARING, auger
1шт.
557115R11
COLLAR
COLLAR, bearing
1шт.
167878C11
FLANGE
bearing
1шт.
202909C1
BEARING HOUSING
FLANGE, bearing
1шт.
1302216C1
HUB
auger sprocket
1шт.
88907
WOODRUFF KEY,#B, 5/16" x 1", HT
5/16 x 1 Woodruff
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
INSTRUCTIONS (NSS)
1шт.
Выбрано товаров: 35
