Запчасти Case IH 1482 (25-03) - GRAIN AND TAILINGS ELEVATORS, GRAIN AUGER TROUGH Elevators

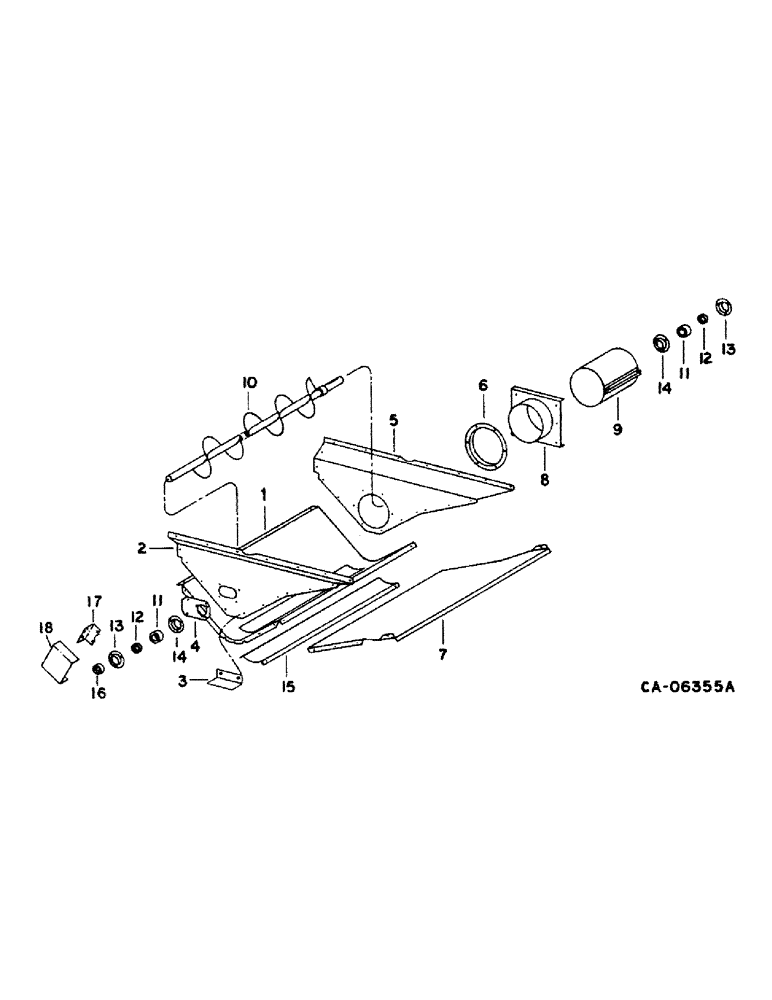

Схема запчастей Case IH 1482 - (25-03) - GRAIN AND TAILINGS ELEVATORS, GRAIN AUGER TROUGH Elevators
11
15
14
17
12
5
8
9
18
12
1
13
11
14
7
2
6
16
4
3
10
13

Артикул

Название

Примечание

Количество

1

186624C1

TROUGH

ASSY, bottom, Perforated

1шт.

1

191983C1

TROUGH

bottom, Non-perforated

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

188284C1

SUPPORT

ASSY, LH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

3

182716C1

ANGLE

LH support

1шт.

4

186717C1

PLATE

collecting auger

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

194563C1

SUPPORT

RH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

6

188285C1

RETAINER

RH support

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

7

191984C2

PLATE

SUPPORT

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

8

188276C2

TUBE,204.98 mm ID, 76.2 mm Length

ASSY

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

9

188228C1

CLAMP,208.79mm

ASSY, trough

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t type 5

1шт.

10

1319173C1

AUGER

ASSY

1шт.

22050R1

WASHER

1.281 x 1.750 x .054

1шт.

11

939475R92

BEARING ASSY

ASSY, auger, Serial Range: -20000

2шт.

11

156011C92

BALL BEARING

BEARING ASSY, auger, Start Serial: 20001

2шт.

12

557115R11

COLLAR

COLLAR, bearing locking, Serial Range: -20000

2шт.

12

557995R11

COLLAR

W/ SET SCREW, bearing locking, Start Serial: 20001

2шт.

13

939460R91

FLANGE

W/ 45 DEG LUG

2шт.

14

939461R1

FLANGE

auger bed

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

22266R1

WASHER

1.156 x 1.750 x .027

1шт.

15

186621C1

COVER

ASSY, For use w/ perforated trough

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

SCREW, 5/16 x 1 h/hwd tap

1шт.

16

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

sensor

1шт.

17

178795C1

BRACKET

sensor

1шт.

18

187642C2

COVER

ASSY, auger sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

1319979C91

KIT

PACKAGE ASSY, clean grain auger, Replaces 1300726C91, To convert to 1.250 in. diameter shaft, Consists of:, Serial Range: -34000

1шт.

1319176C1

SPROCKET ASSY.

SPROCKET, elevator boot, 7 tooth

1шт.

1319181C1

SPACER

32.5 x .8.1 x 54 mm

1шт.

156011C92

BALL BEARING

BEARING

2шт.

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq.

1шт.

557995R11

COLLAR

auger bearing

2шт.

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

sensor

1шт.

INSTRUCTIONS (NSS)

1шт.

Выбрано товаров: 54
