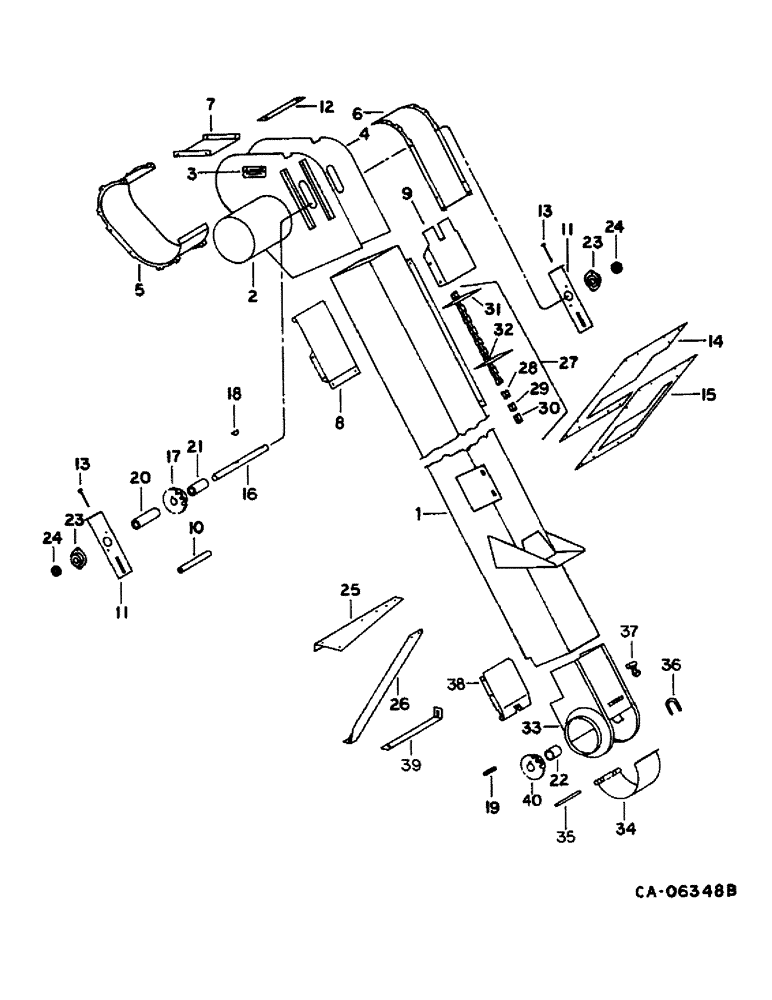

Запчасти Case IH 1482 (25-01) - GRAIN AND TAILINGS ELEVATORS, GRAIN ELEVATOR Elevators

1

192000C1

ELEVATOR TUBE,120.3" Length

TUBE ASSY

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

1319643C92

SHEET

SIDE ASSY, head LH, Replaces 181881C91, Includes: Ref. 3

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

3

1319494C1

PRODUCT GRAPHIC

caution, Replaces 188197C3

1шт.

4

183374C2

PANEL

SIDE ASSY, head RH, Serial Range: -30000

1шт.

4

1319714C1

PANEL

SIDE ASSY, head, RH, Start Serial: 30001

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

5

188263C1

SUPPORT

ASSY, grain spout cover

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

6

188378C1

SUPPORT

ASSY, top head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

7

195424C1

DOOR

CHANNEL, head

1шт.

8

1319848C1

END

SUPPORT, spout, Replaces 188262C1

1шт.

1319850C1

BOLT,5/16" - 18 x 264mm

BOLT, elevator cut off sectin

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

156431

LOCK SCREW,Cross Flat Hd, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 znp f/hdcr mach

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

USED W/ SUPPORT 188262C1

1шт.

21389R1

BOLT,Hex, 5/16" - 18 x 9", Gr 5

5/16 x 9 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

183367C1

END

SUPPORT, top false bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

10

191685C2

SPACER

PIPE, headshaft guide lock

1шт.

21389R1

BOLT,Hex, 5/16" - 18 x 9", Gr 5

5/16 x 9 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

11

183363C1

SUPPORT ASSY.

SUPPORT ASSY, head shaft

2шт.

12

183382C1

BAR

headshaft adjusting bolt

1шт.

667486R1

BOLT

BOLT, 1/2 x 3-1/2 hex-hd - full thd

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

13

667486R1

BOLT

BOLT, head

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

14

192616C1

PLATE

seal

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

15

192618C1

SEAL

1шт.

16

186723C1

SHAFT

head

1шт.

23041R1

WASHER

1.156 x 1.500 x .054

1шт.

17

1302200C1

SPROCKET ASSY.

SPROCKET, head, 7T

1шт.

18

124554

O-RING

5/16 x 1 Woodruff

1шт.

19

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq parallel

1шт.

20

27953R1

SPACER,1 3/8" Tube x 3 3/4"

1.157 x 1.375 x 3.75 pipe

1шт.

21

27954R1

SPACER,1 3/8" Tube x 2 9/16"

1.157 x 1.375 x 2.56 pipe

1шт.

22

27956R1

SPACER,1 3/8" Tube x 2 1/8"

1.157 x 1.375 x 2.12 pipe, Serial Range: -20000

1шт.

22

1319181C1

SPACER

1.28 x 1.50 x 2.12, Start Serial: 20001

1шт.

22266R1

WASHER

1.156 x 1.750 x .027

1шт.

23

1302001C91

ROLLER BEARING,28.57mm ID

head shaft

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

24

557115R11

COLLAR

COLLAR, bearing locking, Serial Range: -20000

2шт.

24

557995R11

COLLAR

W/ SET SCREW, bearing locking, Start Serial: 20001

2шт.

25

192223C2

BRACKET

SUPPORT, upper

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

26

194753C2

SUPPORT

lower

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

27

1302195C91

ELEVATOR CHAIN,CA550, 156 Links x 41.4mm = 6458.4mm

ASSY

1шт.

185053C1

RIVET

conveyor flight

1шт.

28

631253R91

LINK

conveyor plain

1шт.

29

631254R91

DRAG LINK

LINK, conveyor connecting

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

30

23880R1

OFFSET LINK

LINK, conveyor offset

1шт.

31

LINK, attaching, For use w/ 1302198C91 conveyor (NSS)

1шт.

31

150722C91

LINK

attaching, For use w/ 1302193C91 conveyor

1шт.

32

1302198C91

CONVEYOR

W/ FLIGHT, rubber

1шт.

185053C1

RIVET

conveyor flight

1шт.

32

1302193C92

RUBBER FLIGHT

CONVEYOR W/ FLIGHT, steel, Parts accessory, Serviceable items are:

1шт.

150722C91

LINK

1шт.

1302197C1

STRIP

FLIGHT

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 x cad p/t lock type 5

1шт.

33

191997C2

BOOT

ASSY

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

34

195070C1

DOOR

boot, Perforated

1шт.

34

1309037C1

DOOR

boot, Non-perforated, Replaces 182530C91

1шт.

35

160748C1

PIN

boot door

1шт.

36

664360R1

BOLT,U, 1/4" - 20 x 69.65"

boot door

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

37

155909C1

LATCH

boot door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1.250 hd type 1

1шт.

38

191691C1

END

HINGE, false bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

39

186729C2

SUPPORT

lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

40

1302200C1

SPROCKET ASSY.

SPROCKET, boot, 7T, Serial Range: -20000

1шт.

40

1319176C1

SPROCKET ASSY.

SPROCKET, boot, 7T, Start Serial: 20001

1шт.
