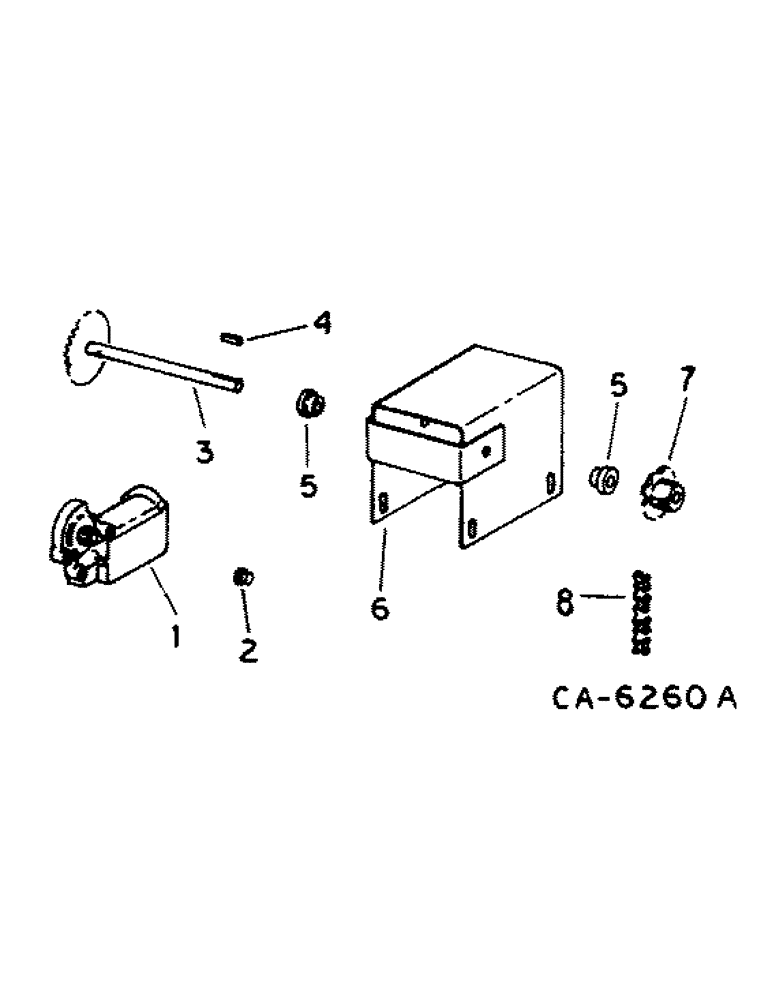

Запчасти Case IH 1482 (07-08) - DRIVE TRAIN, ROTOR DRIVE ADJUSTMENT Drive Train

1

126573C1

MOTOR, ELECTRIC

MOTOR ASSY, variable electric

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

21843R1

WASHER

.406 x 1.000 x .209

1шт.

2

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

electric motor

1шт.

3

194338C1

GEAR

SHAFT ASSY, rotor gear

1шт.

17080R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

4

Q5024

KEY,3/16" Sq x 1", Par

1шт.

5

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

gear shaft

2шт.

6

184825C2

SUPPORT

ASSY, motor

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 x 1 hex-hd lock

1шт.

7

194337C1

SPROCKET

control, 8T

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

Cup Pt Sq Hd, 1/4"-20 x 3/4"

1шт.

8

CHAIN ASSY, variable drive, Use 31 links from a 10 ft roll marked 569088R91, one connecting link 457113R91 and two offset links 457114R91

1шт.

457113R91

CHAIN LINK

LINK, #2040 double pitch connecting

1шт.

457114R91

CHAIN LINK

LINK, #2040 double pitch offset

2шт.
