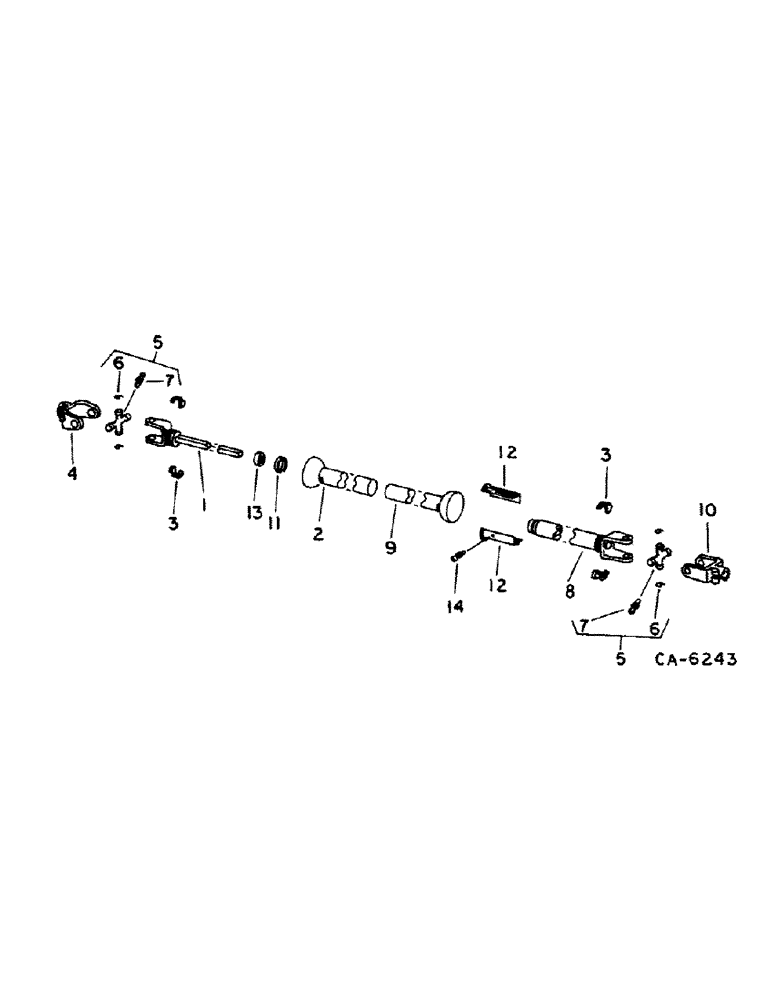

Запчасти Case IH 1482 (07-06) - DRIVE TRAIN, POWER TAKE OFF KNUCKLE, HAYES-DANA Drive Train

181900C91

SHAFT

ASSY, For 1-3/8 PTO spline

1шт.

181901C91

SHAFT

ASSY, For 1-3/4 PTO spline, Includes: Ref. 1 - 14

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

1шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

189654C1

PIN

3/8 x 3-1/4 std-hd type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

1

1305682C1

YOKE

AND SHAFT

1шт.

2

1305683C1

SHIELD

w/ product graphic outer

1шт.

3

135992C2

BEARING COVER

8шт.

4

1305684C1

LINKAGE YOKE

YOKE, For 1-3/8 spline

1шт.

4

1305685C1

YOKE

For 1-3/8 spline

1шт.

Ref#4-1305685c1 is a 1-3/4" spline. 1682 book is correct. tm-9-4-98

1шт.

5

133137C91

KIT

cross, Includes: Ref. 6 & 7

2шт.

6

913713R1

RING, SNAP

8шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

8

1305686C1

TUBE,2.75" Diameter, 21.19" Length

YOKE AND TUBE

1шт.

Ref #8 - 1 1/2" Sq. Hole

1шт.

9

1305687C1

SHIELD

inner

1шт.

10

1305688C1

YOKE

1-5/8 in. clamp

1шт.

11

222699C1

WASHER

bearing, Replaces 1305689C2

1шт.

12

222698C1

BLOCK

INSERT

2шт.

13

69882C1

CYLINDER END CAP

CAP, dust

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
