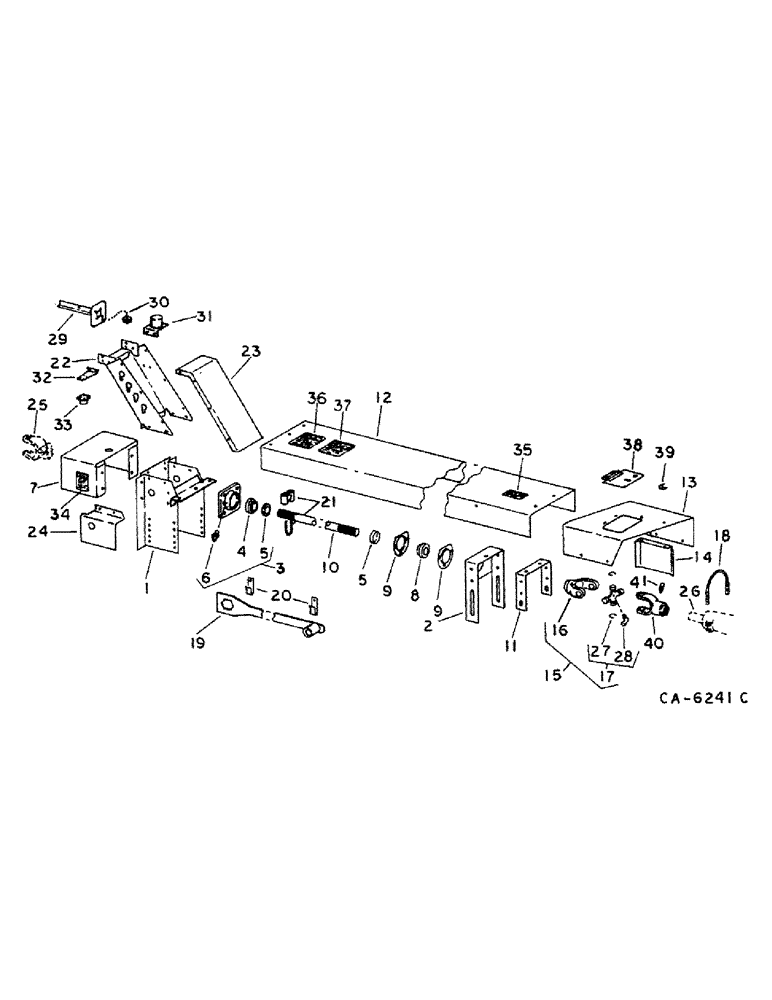

Запчасти Case IH 1482 (07-03) - DRIVE TRAIN, MAIN DRIVE SHIELDS AND SUPPORTS Drive Train
№
Артикул
Название
Примечание
Количество
1
189502C2
SUPPORT
ASSY, front bearing
1шт.
19952R1
BOLT,Hex, 1/2" - 13 x 7", Gr 5
1/2 x 7 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
2
189507C1
SUPPORT
ASSY, center bearing
2шт.
20497R1
BOLT,Hex, 1/2" - 13 x 8 1/2", Gr 5
1/2 x 8-1/2 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
20601R1
WASHER
.531 x 1.250 x .105
1шт.
3
189515C91
BEARING ASSY
PTO shaft front, Includes: Ref. 4 - 6
1шт.
18708R1
BOLT,Short NK, 1/2"-13 x 1 3/4", G2
1/2 x 1-3/4 x crg type 1
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
4
483350R91
BALL BEARING,41.27mm ID x 85mm OD x 22mm W
BEARING ASSY
1шт.
5
557119R11
COLLAR
COLLAR W/ SET SCREW
3шт.
6
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
7
1308240C92
SHIELD
SUPPORT, PTO front, Includes: Ref. 34
1шт.
8
187241C91
BEARING
PTO center and rear
2шт.
9
189490C1
FLANGE
center and rear bearing
4шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
BOLT, 1/2 x 1-1/4 crg type 1
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
120396
WASHER
.531 x 1.062 x .074
1шт.
10
189495C1
SHAFT
power drive
1шт.
11
189512C1
CHANNEL
ASSY, PTO shield
1шт.
20497R1
BOLT,Hex, 1/2" - 13 x 8 1/2", Gr 5
1/2 x 8-1/2 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
20601R1
WASHER
.531 x 1.250 x .105
1шт.
12
1334090C91
SHIELD
ASSY, PTO drive, Replaces 1307397C92, Includes: Ref. 35 - 37
1шт.
28015R1
SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"
SCREW, 3/8 x 3/4 h/whd tap
1шт.
13
1313003C1
SHIELD
SUPPORT, tongue pivot
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
154273C1
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
SCREW, 3/8-16 x 1 lock
1шт.
14
185690C1
GUIDE
hose
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
15
189618C92
GASKET
JOINT ASSY, PTO, rexnord, Includes: Ref. 16, 17, 40 and 41
1шт.
15
181902C91
JOINT ASSY.
JOINT ASSY, PTO, Hayes-Dana, Includes: Ref. 16, 17, 40 and 41
1шт.
16
189619C1
FORK
YOKE, spline, Use w/ 189618C92 joint
1шт.
16
1313962C1
FORK
YOKE, spline, Use w/ 181902C91 joint
1шт.
17
493849R91
KIT
cross, Use w/ 189618C92 joint, Includes: Ref. 27 & 28
1шт.
17
133137C91
KIT
cross, Use w/ 181902C91 joint
1шт.
189654C1
PIN
3/8 x 3.25 hd
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
18
1305511C1
BOLT
U-BOLT
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
131016
WASHER
.656 x 1.312 x .074
1шт.
19
1307617C1
SPECIAL WRENCH
TOOL ASSY, rocking (Wrench), Replaces 184730C1
1шт.
20
193332C1
CLIP
wrench hanger
2шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
21
549914C91
CLAMP
1-5/8 in.
1шт.
22
187683C1
SUPPORT
ASSY, hydra. and elec.
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
23
187686C1
COVER
SUPPORT, hydra. and elec.
1шт.
160515
SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"
1шт.
24
185662C1
SUPPORT
PTO front extension LH
1шт.
24
185663C1
SUPPORT
PTO front extension RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
25
SHAFT ASSY, PTO, Refer to this group under power take off knuckle
1шт.
26
CASE ASSY, main drive gear, Refer to this group under main drive gear case
1шт.
27
913713R1
RING, SNAP
RING, retaining
4шт.
28
80711
LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg
FITTING, 1/8-27 67-1/2 deg
1шт.
29
183521C2
SUPPORT
ASSY, socket, for IH 86 series and Case 2WD tractors
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
29
1324865C1
SUPPORT ASSY.
SUPPORT ASSY, socket, For Case 4WD tractors
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
30
187651C1
CAP
ASSY, signal cover, For 86 series tractor
1шт.
120169
COTTER PIN,5/32" x 1"
PIN, SPLIT (COTTER), 5/32" x 1"
1шт.
31
183727C1
CAP
storage
1шт.
161108C1
BOLT,Hex Serr, 1/4" - 20 x 1/2"
1/4 x 1/2 flange lock
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
32
187710C1
ANGLE
SUPPORT, weather cap
1шт.
68530C1
BOLT,Hex Serr, 1/4" - 20 x 3/4"
1/4 x 3/4 flange lock
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
33
187657C1
RELAY
RECEPTABLE, signal harness weather
1шт.
134530
NUT,Hex, #6 - 32
Machine screw #6-32
1шт.
159336
SCREW,Cross Pan Hd, #6 - 32 x 1/2"
no. 6 x 1/2 znp p/hdcr mach
1шт.
178349
LOCK WASHER,Ext-Int Tooth, #6
WASHER, no. 6 ext-int tooth lock
1шт.
34
184544C1
PRODUCT GRAPHIC
caution
1шт.
35
64553C2
PRODUCT GRAPHIC
caution
1шт.
36
1305925C3
PRODUCT GRAPHIC
caution
1шт.
37
174958C3
PRODUCT GRAPHIC
caution
1шт.
38
1308405C1
DOOR SEAL
DOOR ASSY, access
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4-20 x 1/2 slt-truss-hd
1шт.
39
1308412C1
CLIP
access door
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4-20 x 1/2 slt-truss-hd
1шт.
40
1313805C1
FORK
YOKE, slip, Use w/ 189618C92 joint
1шт.
40
1313963C1
FORK
YOKE, slip, Use w/ 181902C91 joint
1шт.
41
19688R1
LUBE NIPPLE,1/4"-28 x .44" lg
FITTING, 1/4 UNF lub, Use w/ 189618C92 joint
1шт.
41
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , Use w/ 181902C91 joint 1/4"-28 NPT x .54" lg
1шт.
