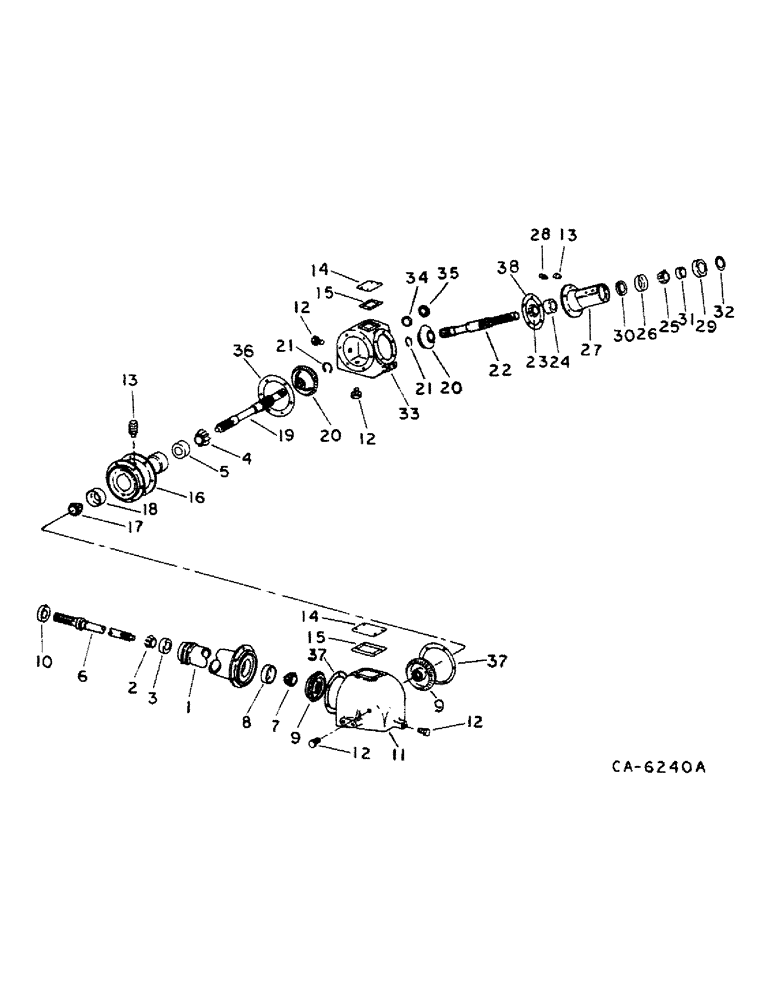

Запчасти Case IH 1482 (07-01) - DRIVE TRAIN, MAIN DRIVE GEAR CASE Drive Train

187486C92

GEARBOX ASSY

CASE ASSY, main drive gear, Replaces 1308463C91, Includes Ref. 1 - 38

1шт.

1

189514C1

HOUSING

input shaft

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, bearing

1шт.

3

663558R1

BEARING CUP

CUP, bearing

1шт.

4

455387C91

BEARING ASSY,41.288 mm ID x 26.743 mm

CONE, bearing

1шт.

5

455386C1

BEARING, CUP

CUP, bearing

1шт.

6

189539C2

SHAFT ASSY.

SHAFT ASSY, input

1шт.

70121D

NUT

1-14 UNF skt-hex, jam

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.

25847R1

WASHER

1.062 x 2.000 x .209 hdn

1шт.

7

219690R91

ROLLER BEARING,41.27mm ID x 29.37mm W

CONE, bearing

1шт.

8

170234R1

BEARING ASSY,1.75" ID x 3.75" OD x 1.1875"

CUP, bearing

1шт.

9

185868C1

GEAR-SET

GEAR SET, primary, Replaces 1308464C1

1шт.

10

169948C91

SEAL

oil

1шт.

11

189535C2

HOUSING

primary drive

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 x 1-1/2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

FOR444613

PLUG

1/8 pipe

4шт.

13

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

ASSY

2шт.

14

189536C1

COVER

BAR, inspection

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

189537C1

GASKET

inspection cover

2шт.

16

189538C1

HUB

connecting

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

327122R91

BEARING

CONE, bearing

1шт.

18

327123R1

CUP

bearing

1шт.

19

189541C2

SHAFT

cross

1шт.

20

189542C1

GEAR-SET

GEAR SET, secondary, 25T and 33T

1шт.

21

512892R1

RING, SNAP

RING, external snap

2шт.

22

189545C1

SHAFT

output

1шт.

19645R1

NUT

1-3/4-NF pln p/t lock

1шт.

23

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

CONE, output shaft inner

1шт.

24

170254R1

BEARING, CUP

CUP, output shaft inner

1шт.

25

62923R91

ROLLER BEARING

CONE, output shaft outer

1шт.

26

130503H

BEARING CUP

CUP, output shaft outer

1шт.

27

189546C1

HUB

output

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

28

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

29

338904R91

SEAL

SEAL, oil

1шт.

30

192528C1

OIL SEAL,42.85mm ID x 76.33mm OD x 8mm Thk

oil

1шт.

31

189547C1

SPACER

BUSHING, bearing retainer

1шт.

32

185774C1

LOCK WASHER

locking

1шт.

19645R1

NUT

1-3/4 NF pln p/t lock

1шт.

33

189549C2

CASE

secondary drive

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

34

381480R91

OIL SEAL

oil

1шт.

35

1305783C1

SEAL

oil

1шт.

36

673359R91

KIT

SHIM, package, Replaces 181922C1, For use w/ 189549C2 Case, Consists of:

1шт.

SHIM .005 (NSS)

2шт.

SHIM .007 (NSS)

2шт.

SHIM .020 (NSS)

2шт.

37

181923C1

SHIM

package, For use w/ 189535C2 housing, Consists of:

2шт.

SHIM .005 (NSS)

4шт.

SHIM .007 (NSS)

4шт.

SHIM .020 (NSS)

2шт.

38

195484C2

SHIM KIT

SHIM, package, For use w/ 189546C1, Consists of:

1шт.

SHIM .005 (NSS)

4шт.

SHIM .007 (NSS)

4шт.

SHIM .020 (NSS)

2шт.
