Запчасти Case IH 1482 (02-05A) - MISCELLANEOUS, TOOL BOX Accessories & Attachments / Miscellaneous

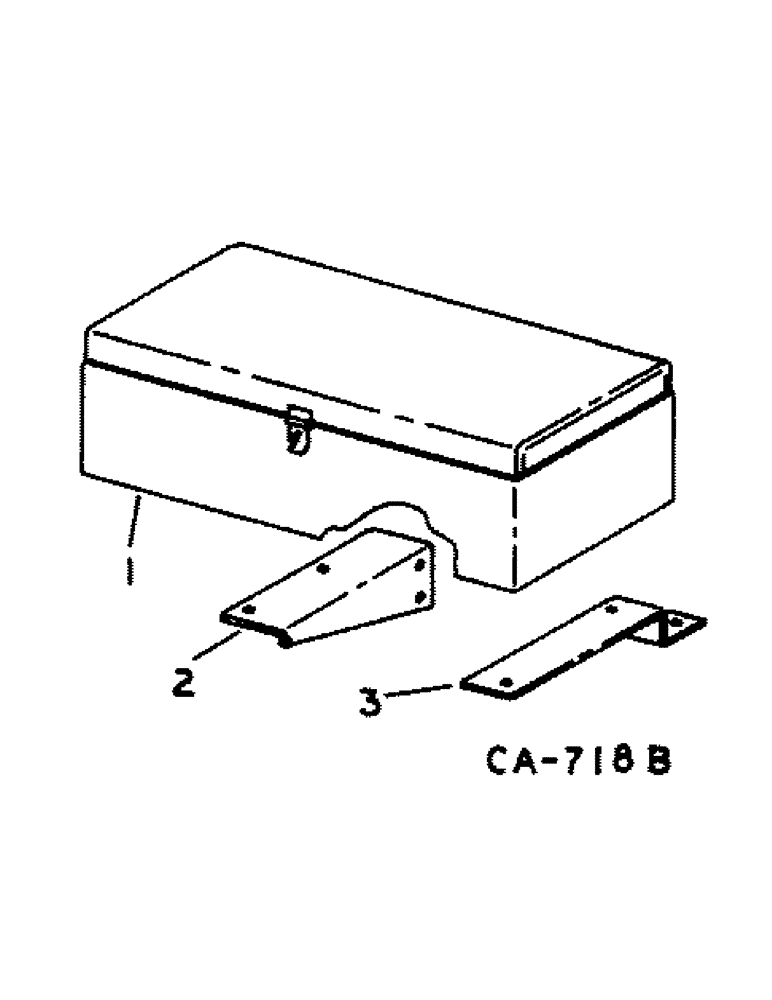

Схема запчастей Case IH 1482 - (02-05A) - MISCELLANEOUS, TOOL BOX Accessories & Attachments / Miscellaneous
1
3
2

Артикул

Название

Примечание

Количество

1

400455R1

BOX, TOOL

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

2

185713C2

SUPPORT

ANGLE, front support

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

3

185714C2

SUPPORT

rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

Выбрано товаров: 10
