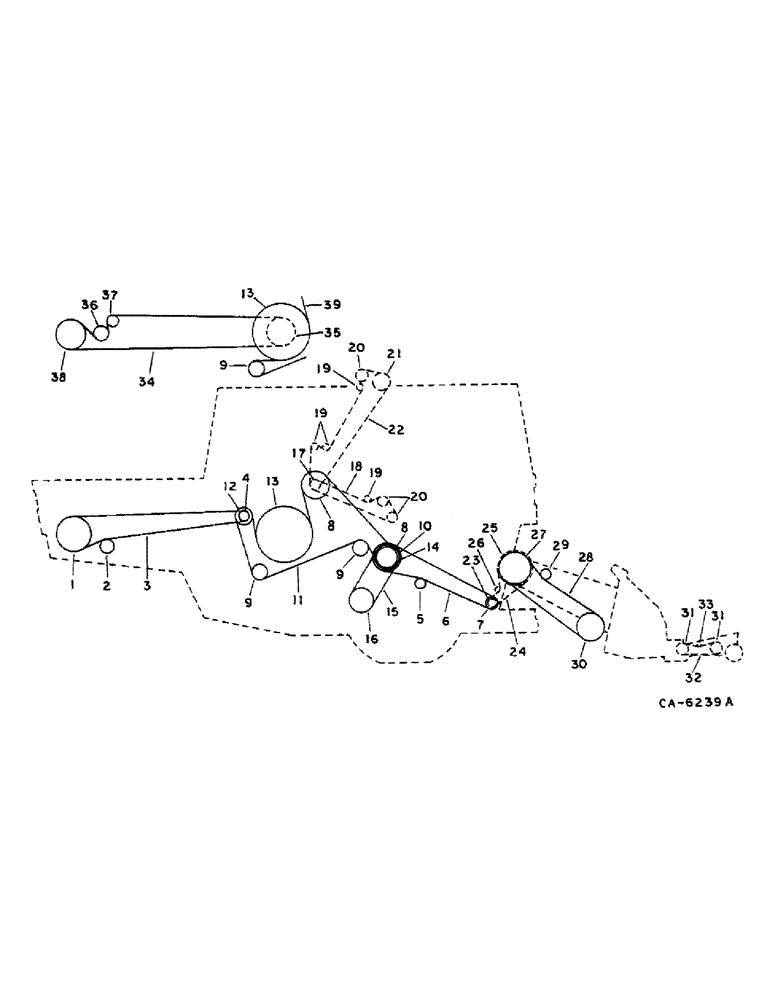

Запчасти Case IH 1482 (02-03) - MISCELLANEOUS, PULLEY, BELT, SPROCKET AND CHAIN DIAGRAM, RIGHT SIDE Accessories & Attachments / Miscellaneous

1

557917R92

PULLEY

ASSY, spreader driven, 15-7/8 IN. OD, 403.1 mm OD, Refer to group 20 under straw spreader

1шт.

2

564745R91

PULLEY

drive tightener, 5-1/2 in. OD, 139.7 mm OD, Refer to straw spreader

1шт.

3

153359C1

V-BELT,0.63" W x 186.87" L

Drive, Refer to Group 20 Under Straw Spreader 0.63" W x 186.87" L

1шт.

4

195163C2

PULLEY

ASSY, drive, 5 in. OD, 127.00 mm OD, Refer to group 20 under straw spreader

1шт.

5

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

fan jackshaft drive ider, 8 in. OD, 203.2 mm OD, Refer to group 20 under belt drive, RH side

1шт.

6

185712C1

BELT,22.33 mm W x 3492.69 mm L

V-BELT , Fan jackshaft drive, OC, Refer to group 20 under belt drive, RH side 22.33 mm W x 3492.69 mm L

1шт.

7

189628C1

PULLEY

ASSY, jackshaft drive, 9.25 in. OD, 235.0 mm OD, Refer to group 20 under belt drive, RH side

1шт.

8

138325C1

PLUG

PULLEY ASSY, cleaning unit driven and jackshaft driven, 13.00 in. OD, 330.2 mm OD

2шт.

8

1308402C1

PULLEY

ASSY, cleaning unit driven, 12.5 in. OD, 317.5 mm OD, Refer to group 20 under belt drive, RH side

1шт.

9

673214R91

PULLEY

elevator and elevator drive fixed idler, 7.3 in. OD, 185.7 mm OD, Refer to group 20 under belt drive, RH drive

2шт.

10

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, jackshaft drive, 9.75 in. OD, 247.7 mm OD, Refer to group 20 under belt drive, RH side

1шт.

11

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Elevator drive, OC, Refer to group 20 under belt drive, RH side 0.879" W x 255.99" L

1шт.

12

195161C1

PULLEY

ASSY, beater drive, 8-3/8 in. OD, 212.9 mm OD, Refer to group 20 under belt drive, RH side

1шт.

13

193682C1

PULLEY

ASSY, shaker shaft driven, 25 in. OD, 635.0 mm OD, Refer to group 20 under belt drive, RH side

1шт.

14

183288C1

PULLEY

fan driver, 11.25 in. OD, 285.38 mm OD, Refer to group 24 under fan drive

2шт.

15

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Fan drive, OC, Refer to group 24 under fan drive 31.80 mm W x 1881.58 mm L

1шт.

16

185020C2

PULLEY ASSY.

PULLEY ASSY, fixed fan driven, 11.24 in. OD, 285.8 mm OD

1шт.

16

185023C93

PULLEY

ASSY, adjustable fan driven, 11.24 in. OD, 285.8 mm OD, Refer to group 24 under fan drive

1шт.

17

192139C2

SPROCKET

ASSY, grain and tailings elevator drive, 25 T, Refer to group 25 under tailings elevator and jackshaft drive

2шт.

18

CHAIN ASSY, tailings elevator drive, Refer to group 25 under tailings elevator and jackshaft drive

1шт.

19

631905R91

SPROCKET

elevator drive idler, 17 T, Refer to group 25 under tailings elevator and jackshaft drive and grain elevator drive

4шт.

20

188188C1

SPROCKET ASSY.

SPROCKET, elevator drive and driven, 27 T, Refer to group 25 under tailings elevator and jackshaft drive and grain elevator grain

3шт.

21

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 33 T, Refer to group 25 under grain elevator drive

1шт.

22

CHAIN ASSY, grain elevator drive, Refer to group 25 under grain elevator drive

1шт.

23

189642C1

SPROCKET ASSY.

SPROCKET, feeder drive, 20 T, Refer to group 33 under feeder drive

1шт.

24

CHAIN ASSY, feeder drive, Refer to group 33 under feeder drive

1шт.

25

185912C1

SPROCKET ASSY.

SPROCKET, feeder driven, 49 T, Refer to group 33 under feeder drive

1шт.

26

172079C91

SPROCKET ASSY.

SPROCKET ASSY, feeder drive idler, 19 T, Refer to group 33 under feeder drive

1шт.

27

185958C92

PULLEY ASSY.

PULLEY W/ BUSHING, feeder clutch, 16.7 in. OD, 424.2 mm OD, Refer to group 33 under feeder jackshaft drive

1шт.

28

197414C2

BELT,22.33 mm W x 3706.69 mm L

V-BELT , Header drive, OC, Refer to group 33 under feeder jackshaft drive 22.33 mm W x 3706.69 mm L

1шт.

29

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

feeder drive tightener, 8-3/4 in OD, 222.3 mm OD, Refer to group 33 under feeder jackshaft drive

1шт.

30

176568C2

PULLEY

feeder jackshaft driven, 13.5 in. OD, 342.9 mm OD, Refer to group 33 under feeder jackshaft drive

1шт.

31

176901C1

SPROCKET ASSY.

SPROCKET ASSY, driven, 17 T, Refer to group 33 under windrow pickup, Basic

2шт.

32

CHAIN ASSY, lower roller drive, Refer to group 33 under windrow pickup, basic

1шт.

33

575874R1

BLOCK

chain tightener, Refer to group 33 under windrow pickup, basic

1шт.

34

196371C1

BELT,0.630" W x 222.59" L

V-BELT , Straw spreader drive, OC, Refer to group 20 under straw spreader drive 0.630" W x 222.59" L

1шт.

35

566516R91

PULLEY ASSY.

PULLEY ASSY, straw spreader drive, 9-3/4 in. OD, 247-7 mm OD, Refer to group 20 under straw spreader drive

1шт.

36

181126C91

PULLEY

straw spreader drive tightener, 6-3/4 in. OD, 171.5 mm OD, Refer to group 20 under straw spreader drive

1шт.

37

181127C1

PULLEY

straw spreader drive idler, or

1шт.

37

1316269C1

SHAFT

PULLEY, straw spreader drive idler, 4-3/8 in. OD, 111.3 mm OD, Refer to group 20 under straw spreader drive

1шт.

38

181196C2

PULLEY

straw spreader driven, 10 in. OD, 254.0 mm OD, Refer to group 20 under straw spreader drive

1шт.

39

181055C1

BELT,0.879" W x 200.99" L

V-BELT , Cleaning unit drive, OC, Refer to group 20 under belt drive, RH side 0.879" W x 200.99" L

1шт.
