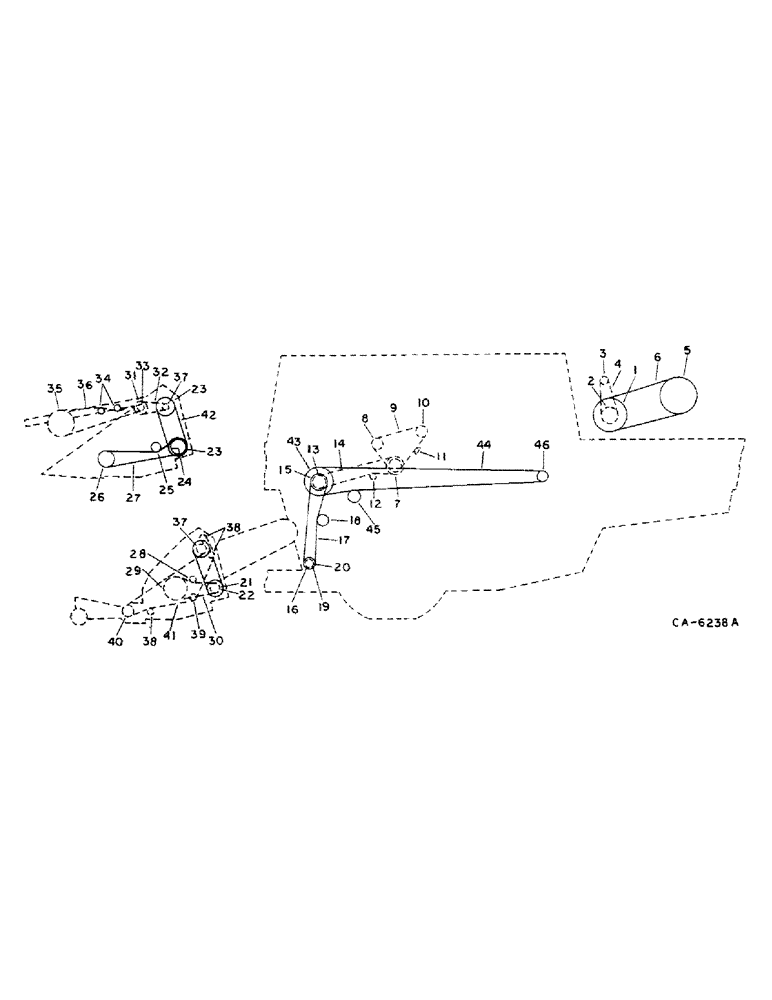

Запчасти Case IH 1482 (02-01) - MISCELLANEOUS, PULLEY, BELT, SPROCKET AND CHAIN DIAGRAM, LEFT SIDE Accessories & Attachments / Miscellaneous
№
Артикул
Название
Примечание
Количество
1
184835C91
PULLEY
ASSY, rotor drive variable, 17.5 in. OD, 444.5 mm OD
1шт.
1
184837C91
PULLEY
ASSY, rotor drive variable, 17.5 in. OD, 444.5 mm OD, Refer to group 7 under separator drive
1шт.
2
184833C1
SPROCKET ASSY.
SPROCKET, variable pulley male, 25 T, Refer to group 7 under separator drive
1шт.
3
194337C1
SPROCKET
control, 8T, Refer to group 7 under rotor drive adjustment
1шт.
4
CHAIN ASSY, variable drive, Refer to group 7 under rotor drive adjustment
1шт.
5
185433C1
PULLEY
fixed variable, 18.5 in. OD, 469.9 mm OD
1шт.
5
185417C91
PULLEY ASSY.
PULLEY ASSY, adjustable variable, 18.5 in. OD, 469.9 mm OD, Refer to group 21 under rotor drive
1шт.
6
189662C1
BELT
Rotor variable drive, 85 in. OC, 2159.0 mm OC, Refer to group 21 under rotor drive
1шт.
7
187329C1
SPROCKET ASSY.
SPROCKET ASSY, unloader drive, 33 and 57 T, Refer to group 26 under grain tank unloader drive
1шт.
8
187331C1
SPROCKET ASSY.
SPROCKET ASSY, front auger driven, 49 T, Refer to group 26 under grain tank unloader drive
1шт.
9
CHAIN ASSY, grain tank auger drive, Refer to group 26 under grain tank unloader drive
1шт.
10
192925C1
SPROCKET
ASSY, rear auger driven, 37 T, Refer to group 26 under grain tank unloader drive
1шт.
11
936878R1
BLOCK
rear auger drive tightener, Refer to group 26 under grain tank unloader drive
1шт.
12
SPROCKET
vertical auger chain tightener, 17 T, Refer to group 26 under grain tank unloader drive
1шт.
13
189388C1
SPROCKET ASSY.
SPROCKET, unloader drive, 33 T
1шт.
13
1305972C1
SPROCKET ASSY.
SPROCKET, unloader drive, 29 T, Refer to group 26 under grain tank unloader drive
1шт.
14
CHAIN ASSY, unloader drive, Refer to group 26 under grain tank unloader drive
1шт.
15
184815C1
PULLEY ASSY.
PULLEY ASSY, unloader jackshaft driven, 10.50 in. OD, 2.667 mm OD
1шт.
15
181856C1
PULLEY
unloader jackshaft driven, 10 in. OD, 254.0 mm OD
1шт.
15
1305974C1
PULLEY
ASSY, unloader jackshaft driven, 10 in. OD, 254.0 mm OD, Refer to group 26 under tank unloader drive
1шт.
16
187379C1
YOKE
PULLEY, unloader jackshaft drive, 7.87 in. OD, 199.9 mm OD
1шт.
16
181657C1
PULLEY
unloader jackshaft drive, 8.425 in. OD, 214.0 mm OD
1шт.
16
1305976C1
PULLEY
unloader jackshaft drive, 8.425 in. OD, 214.0 mm OD, Refer to group 26 under tank unloader drive
1шт.
17
158797C1
V-BELT,0.88" W x 103.39" L
Unloader Jackshaft Drive 0.88" W x 103.39" L
1шт.
17
181718C1
SET OF BELTS,16.00 mm W
V-Belt, Unloader jackshaft drive, 2618.7 mm OC, Refer to group 26 under tank unloader drive 16.00 mm W
1шт.
18
156221C91
PULLEY ASSY.
PULLEY, unloader belt tightener, 8-3/4 in. OD 222.3 mm OD
1шт.
18
176579C1
IDLER
unloader jackshaft drive, 8 in. OD, 203.2 mm OD, Refer to group 26 under grain tank unloader drive
1шт.
19
181656C1
SPROCKET ASSY.
SPROCKET, drive cross shaft, 17 T
1шт.
19
189643C2
SPROCKET ASSY.
SPROCKET ASSY, chain coupling, 17 T, Refer to group 33 under feeder drive
1шт.
20
CHAIN ASSY, chain coupling, Refer to group 33 under feeder drive
1шт.
21
182325C1
SPROCKET ASSY.
SPROCKET, header drive coupler, 13 T, Refer to group 33 under feeder jackshaft drive
2шт.
21
177965C1
SPROCKET ASSY.
SPROCKET, auger drive, 18 T, Refer to group 33 under auger and knife drive
1шт.
22
CHAIN ASSY, coupler, Refer to group 33 under fender jackshaft drive
1шт.
23
189174C91
PULLEY
W/ PINS, fixed half drive, 11.24 in. OD, 285.5 mm OD
2шт.
23
189176C1
PULLEY
adjustable half drive, 11.24 in. OD, 285.5 mm OD, Refer to group 33 under header variable drive
2шт.
24
184815C1
PULLEY ASSY.
PULLEY ASSY, knife drive, 10-1/2 in. OD, 266.7 mm OD, Refer to group 33 under auger and knife drive
1шт.
25
674966R91
PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W
W/ BEARING, idler, 8-3/4 in. OD, 222.3 mm OD, Refer to group 33 under auger and knife drive
1шт.
26
182029C1
PULLEY
knife driven, 10-1/2 in. OD, 266.7 mm OD, Refer to group 33 under auger and knife drive
1шт.
27
552747R2
V-BELT
Drive, 99.67 in. OC, 2531.6 mm OC, Refer to group 33 under auger and knife drive
1шт.
28
571441R91
SPROCKET ASSY.,15T
SPROCKET, idler, 15 T, Refer to group 33 under auger and knife drive
1шт.
29
177966C2
SPROCKET ASSY.
SPROCKET W/ BUSHING, auger driven, 47 T, Refer to group 33 under auger and knife drive
1шт.
30
CHAIN ASSY, auger drive, Refer to group 33 under auger and knife drive
1шт.
31
185767C1
SPROCKET ASSY.
SPROCKET, jackshaft, 54 T, Refer to group 33 under reel drive
1шт.
32
CHAIN ASSY, jackshaft drive, Refer to group 33 under mechanical reel drive
1шт.
33
185768C91
SPROCKET ASSY.
SPROCKET, reel drive, 8 T, Refer to group 33 under mechanical reel drive
1шт.
34
559168R91
PTO
PULLEY, chain idler, 3-1/2 in. OD, 88.9 mm OD, Refer to group 33 under reel drive
2шт.
35
184570C1
SPROCKET ASSY.
SPROCKET, reel driven, 50T, Refer to group 33 under reel drive
1шт.
36
CHAIN ASSY, reel drive, Refer to group 33 under reel drive
1шт.
37
189166C1
SPROCKET ASSY.
SPROCKET ASSY, drive, 18 T, Refer to group 33 under windrow pickup LH drive
1шт.
39
594706R91
SPROCKET ASSY.,15T
SPROCKET, idler, 15 T, Refer to group 33 under windrow pickup LH drive
1шт.
40
162252C1
SPROCKET ASSY.
SPROCKET, driven, 30 T, Refer to group 33 under windrow pickup LH drive
1шт.
41
CHAIN ASSY, drive, Refer to group 33 under windrow pickup LH drive
1шт.
42
189219C1
V-BELT,1.25" W x 63.15" L
BELT , Header variable drive, Refer to group 33 under header variable drive 1.25" W x 63.15" L
1шт.
43
181854C1
PULLEY
ASSY, straw chopper drive, 17 in. OD, 431.8 mm OD, Refer to group 20 under straw chopper drive
1шт.
44
181717C1
BELT,16.00 mm W x 6645.82 mm L, 2 Ribs
V-BELT , Straw chopper drive, OC, Refer to group 20 under straw chopper drive 16.00 mm W x 6645.82 mm L, 2 Ribs
1шт.
45
187388C91
PULLEY
ASSY, straw chopper idler, 8 in. OD, 203.2 mm OD, Refer to group 20 under straw chopper drive
1шт.
46
181663C1
PULLEY
straw chopper driven, 5.62 in. OD, 142.7 mm OD, Refer to group 20 under straw chopper drive
1шт.
Выбрано товаров: 58
