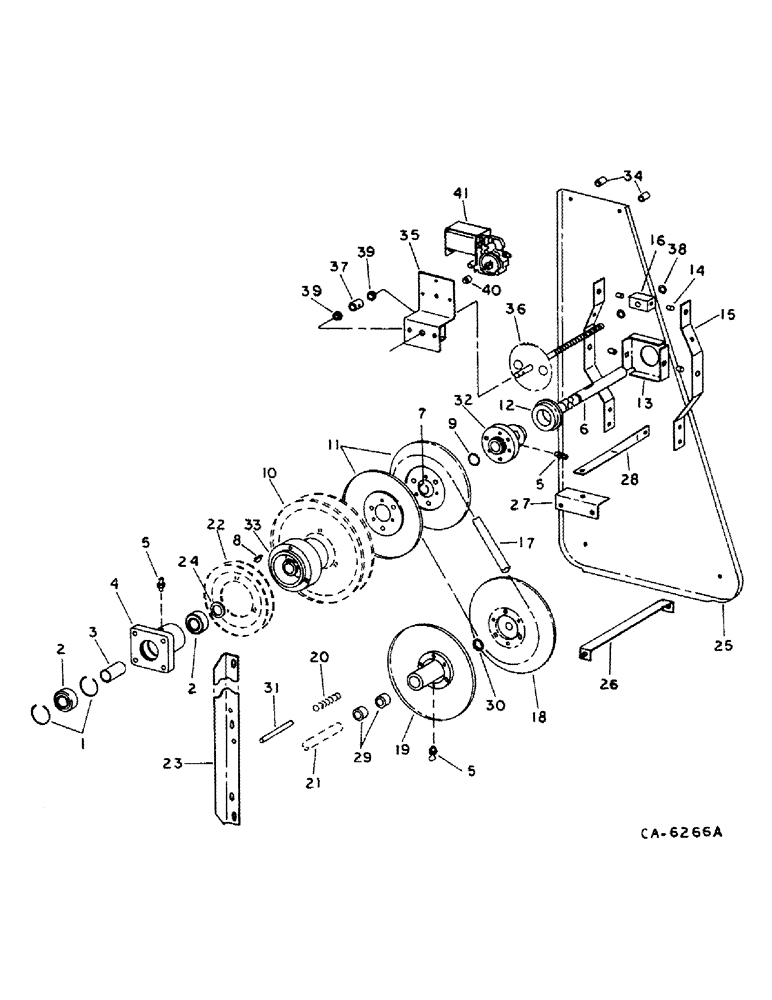

Запчасти Case IH 1482 (24-03) - CLEANING FAN AND DRIVE, FAN DRIVE (15) - CLEANING

1

360936R1

RING

fan drive shaft snap

2шт.

2

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING, elevator and fan drive, Replaces 183019C9

2шт.

3

152926C1

SPACER

1-5/16 x 1-5/8 x 1.88

1шт.

4

192418C1

HUB

elevator and fan drive

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap lug

3шт.

6

194853C3

SHAFT

elevator and fan drive

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flange w/ scotch grip

1шт.

668569R1

WASHER

.344 x 1.500 x .105

1шт.

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER, .53 x 1.5 x .18

1шт.

7

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

8

124554

O-RING

5/16 x 1 Woodruff

1шт.

9

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 ID x 1-1/2 OD x 1/8

1шт.

10

PULLEY ASSY, cleaning unit drive, Refer to group 20 under belt drive, RH side

1шт.

11

183288C1

PULLEY

fan driver fixed, 11.25 in. OD, 285.8 mm OD

2шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

12

185094C91

BALL BEARING

BEARING, fan jackshaft

1шт.

13

194852C2

SUPPORT

fan driver

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

14

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

4шт.

15

194850C2

SUPPORT

fan control

2шт.

120376

NUT,5/16"-18, G5

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

16

181206C1

BLOCK

fan speed control shaft

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

17

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Fan drive, OC 31.80 mm W x 1881.58 mm L

1шт.

18

185020C2

PULLEY ASSY.

PULLEY ASSY, fan driven fixed, 11.24 OD, 285.5 mm OD, Serial Range: -10005

1шт.

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

5/16 x 5 type 5

1шт.

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

3/8 x 2-3/4 type 8

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

25554R1

WASHER,.469" x 1 1/4" x .134", HDN

.406 x .812 x .134 phc hdn

1шт.

18

1309014C1

PULLEY ASSY.

PULLEY ASSY, fan driven fixed, 11.24 in. OD, 285.5 mm OD, Start Serial: 10006

1шт.

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

5/16 x 5 type 5

1шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1/2 x 3 type 8

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

.531 x 1.062 x .188 phc hdn

1шт.

19

185023C93

PULLEY

ASSY, fan driven adjustable, 11.24 in., 285.5 mm OD, Includes: Ref. 29 & 30

1шт.

20

1302181C2

SPRING

fan drive pulley

3шт.

21

SHAFT, cleaning fan, Refer to this group under cleaning fan and shields

1шт.

22

PULLEY ASSY, elevator jackshaft drive, Refer to group 20 under belt drive, RH side

1шт.

23

188178C2

BRACKET

ANGLE, fan hub

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

24

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER, fan bearing retaining

1шт.

25

181842C1

SHIELD

ASSY, fan drive

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8 wing

1шт.

26

181840C1

SUPPORT

ASSY, drive shield

2шт.

126032

WING NUT,3/8"-16

NUT, 3/8 wing

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

27

181904C1

ANGLE

variable anchor

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

28

182410C1

SUPPORT

fan drive control

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8 x 1-1/8 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1.500 hd type 1

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

21752R1

WASHER

.406 x 1.500 x .054

1шт.

29

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

driven adjustable pulley

2шт.

30

606749R91

OIL SEAL

driven adjustable pulley, Serial Range: -10000

1шт.

30

537545R92

SEAL

driven adjustable pulley, Used with pulley 185023C91 and 185023C92 only, Start Serial: 10001

1шт.

30

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 class 5, Used with pulley 185023C93

1шт.

31

1302180C2

BUSHING,8.2mm ID x 14.27mm OD x 101.6mm L

fan drive spring

3шт.

32

185286C91

HUB

ASSY, fan driver adjusting pulley

1шт.

25095R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3.500 pln hdn-dowel

1шт.

33

183333C1

HUB

fan driver fixed pulley

1шт.

34

1305404C1

SPACER

fan shield

2шт.

35

181199C1

SUPPORT ASSY.

SUPPORT ASSY, motor

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

36

181202C1

SHAFT ASSY.

STUD ASSY, adjusting gear

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

22258R1

WASHER

.656 x 1.000 x .027

1шт.

37

181205C1

SPACER

adjusting gear stud

1шт.

38

1302054C1

WASHER,15.95mm ID x 25.4mm OD x 1.52mm Thk

fan control thrust

2шт.

39

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

flange, 626 in. ID, 15.9 mm ID

2шт.

40

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

flange, 316 in. ID, 8.0 mm ID

1шт.

41

126573C1

MOTOR, ELECTRIC

MOTOR ASSY, fan variable

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.
