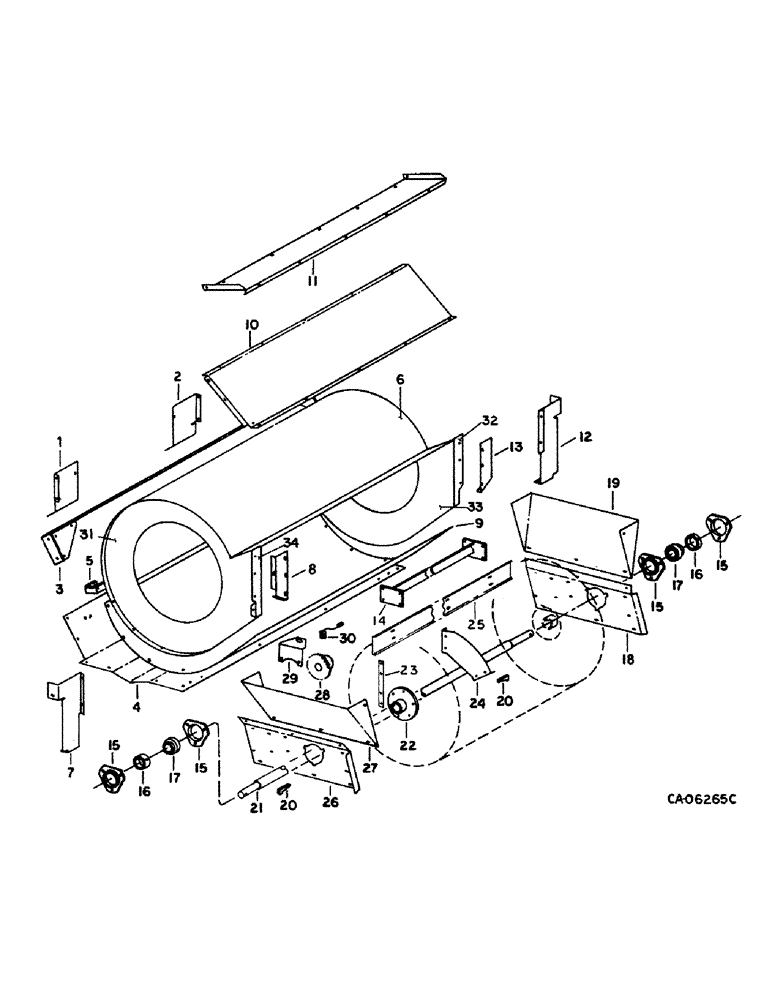

Запчасти Case IH 1482 (24-01) - CLEANING FAN AND DRIVE, CLEANING FAN AND SHIELDS (15) - CLEANING

1

188112C2

SUPPORT

fan intake front LH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

188113C2

SUPPORT

fan intake front RH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

194715C1

SUPPORT

ASSY, fan bottom shield

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

4

194718C1

SUPPORT

fan bottom

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

5

191930C1

STRIP

fan front support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

6

SHEET, fan housing top (NSS)

1шт.

Spacer 1308813 not req'd.

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

7

188114C2

SUPPORT

fan intake rear LH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

186715C1

SUPPORT

fan side LH

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, fan joining 5/16 high torque

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

9

191927C1

SUPPORT

fan housing support

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

10

192067C1

SUPPORT

fan to auger bed

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 type 1

1шт.

11

192065C1

SUPPORT

chaffer front seal

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

188115C2

SUPPORT

fan intake rear RH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

186716C1

SUPPORT

fan side RH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, fan joining 5/16 high torque

1шт.

14

191928C1

SUPPORT

ASSY, fan rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

15

180955C1

FLANGED BEARING,0.375"

FLANGE, fan shaft bearing

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW, 3/8 x 1-1/2 h/hd flange

1шт.

16

455104R11

COLLAR

ASSY, fan bearing locking

2шт.

17

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ASSY, fan

2шт.

18

194396C1

SUPPORT

fan shaft bearing RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

19

194398C2

SUPPORT

fan intake RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

20

Q1497

KEY,Gib, 3/8" Sq x 2"

5/16 x 2 gib

3шт.

21

185140C2

SHAFT

cleaning fan, Serial Range: -10000

1шт.

21

1309015C1

SHAFT

cleaning fan, Start Serial: 10001

1шт.

22

185480C1

HUB ASSY.

SPIDER ASSY, fan

3шт.

23

185483C1

BAR

ANGLE, fan

18шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

24

185484C1

SUPPORT

cleaning fan blade

18шт.

25

182927C1

BLADE

cleaning fan

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

26

194395C1

SUPPORT

fan shaft bearing LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

27

194397C2

BRACKET

SUPPORT, fan intake LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

28

198526C1

SPROCKET ASSY.

SPROCKET, fan speed tach

1шт.

431662

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 c/pt znp hdl/s set

1шт.

29

193222C2

SUPPORT

fan speed tach, Serial Range: -5500

1шт.

29

1301240C2

SUPPORT

fan speed gage, Start Serial: 5501

1шт.

30

187855C1

ELECTRICAL GAUGE

GAGE, reluctance pickup, Serial Range: -5500

1шт.

145507

NUT,Stamped, 7/8"-14

7/8-NF cad stamped

1шт.

30

1301241C1

SENSOR

CONVERTOR, reluctance pickup, Start Serial: 5501

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 zn stamped

1шт.

31

SECTION, fan housing side, LH (NSS)

1шт.

Furnish fan housing package 1324002C91.

1шт.

32

186714C2

EXTENSION

fan sheet filler, RH

1шт.

Furnish fan housing package 1324002C91.

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t/ lock

1шт.

33

SECTION, fan housing, RH (NSS)

1шт.

Furnish fan housing package 1324002C91.

1шт.

34

186713C2

KIT

EXTENSION, fan sheet filler, LH

1шт.

Furnish fan housing package 1324002C91.

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

1324002C91

KIT

PACKAGE, fan housing, Consists of:

1шт.

SECTION, fan housing, LH (NSS)

1шт.

SECTION, fan housing, RH (NSS)

1шт.

SHEET, top (NSS)

1шт.

186713C2

KIT

EXTENSION, filler, LH

1шт.

186714C2

EXTENSION

filler, RH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

INSTRUCTIONS (NSS)

1шт.
