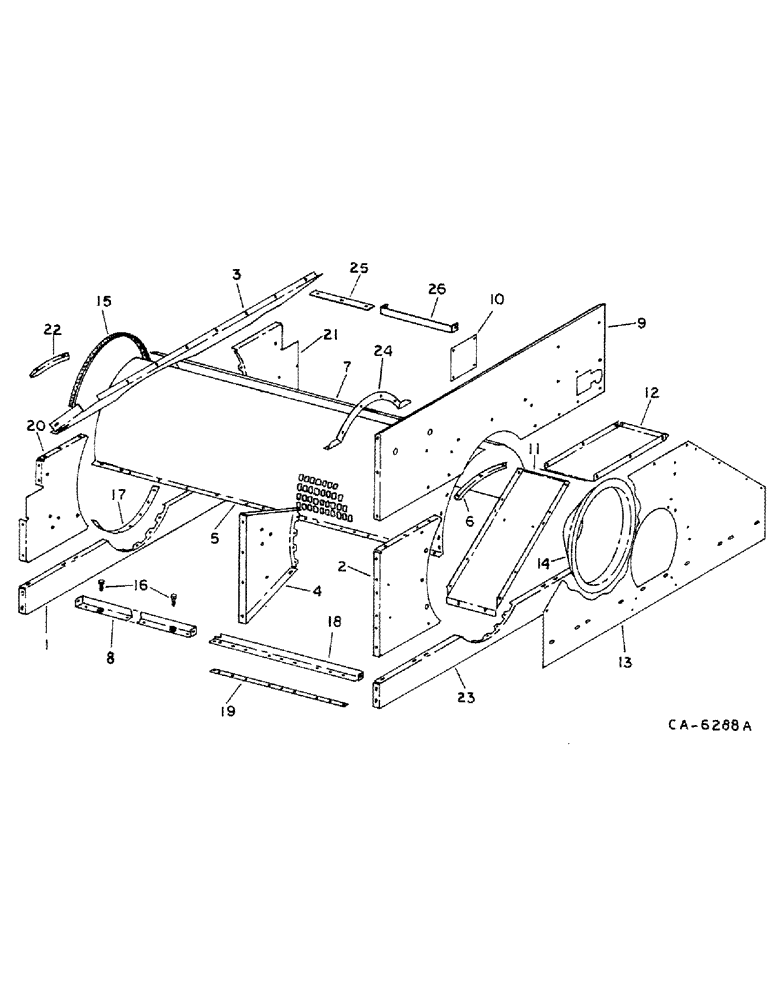

Запчасти Case IH 1482 (21-11) - THRESHING ROTOR AND CONCAVES, CAGE (14) - THRESHING

1

192385C1

SUPPORT

front lower seal

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

191269C4

SUPPORT

rotor cage rear

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, , w/Scotch Grip Sltd Truss Hd, 3/8"-16 x 3/4"

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

3

187419C1

PROTECTION PLATE

SUPPORT, front grain tank to cage top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

191298C3

SUPPORT

rotor cage middle

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, , w/Scotch Grip Sltd Truss Hd, 3/8"-16 x 3/4"

1шт.

5

1302162C3

SUPPORT

rotor LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

186917C1

SCREW

SCREW, 3/8-16 x 1 slt-truss-hd w/ scotch grip

1шт.

6

VANE, transport, Refer to this group under vane layout

12шт.

7

1302161C4

SUPPORT

rotor RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

186917C1

SCREW

SCREW, 3/8-16 x 1 slt-truss-hd w/ scotch grip

1шт.

8

188333C1

SUPPORT

ASSY, cage LH and RH

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

SCREW, 3/8 x 1 flange lock w/ scotch grip

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flange w/ scotch grip

1шт.

9

192024C2

SUPPORT

ASSY, rotor rear upper

1шт.

198820C1

GROMMET

PLUG, rubber

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

10

189693C1

BAR

rear upper rotor section

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

11

193393C1

COVER

discharge side

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

193170C1

COVER

discharge top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

13

193967C1

PLATE

discharge back

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

182550C1

RETAINER

COVER, rotor rear seal

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

1309111C1

SEAL,19mm W x 725mm L

front grain tank support, Replaces 1302669C

1шт.

16

352657C1

BOLT,Hex, 1/2" - 13 x 2"

concave stop

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

17

186750C1

SUPPORT

cage filler

1шт.

18

185386C1

SUPPORT

ASSY, cage LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

SCREW, 3/8 x 1 hex flange w/ scotch grip

1шт.

19

183323C1

STRAP

BAR, cage grate

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flange w/ scotch grip

1шт.

20

193896C3

SUPPORT

rotor cage front LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

21

193897C3

SUPPORT

rotor cage front RH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

22

VANE, cone extension cage, Refer to this group under vane layout

3шт.

23

182931C1

SUPPORT

lower cage rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

24

1308696C1

SUPPORT

rear upper cage

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, , w/Scotch Grip Sltd Truss Hd, 3/8"-16 x 3/4"

1шт.

25

186785C2

REINFORCEMENT

BAR, cage reinforcement front

2шт.

26

182634C2

SUPPORT

STIFFENER, cage grate rear

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flg w/ scotch grip

1шт.
