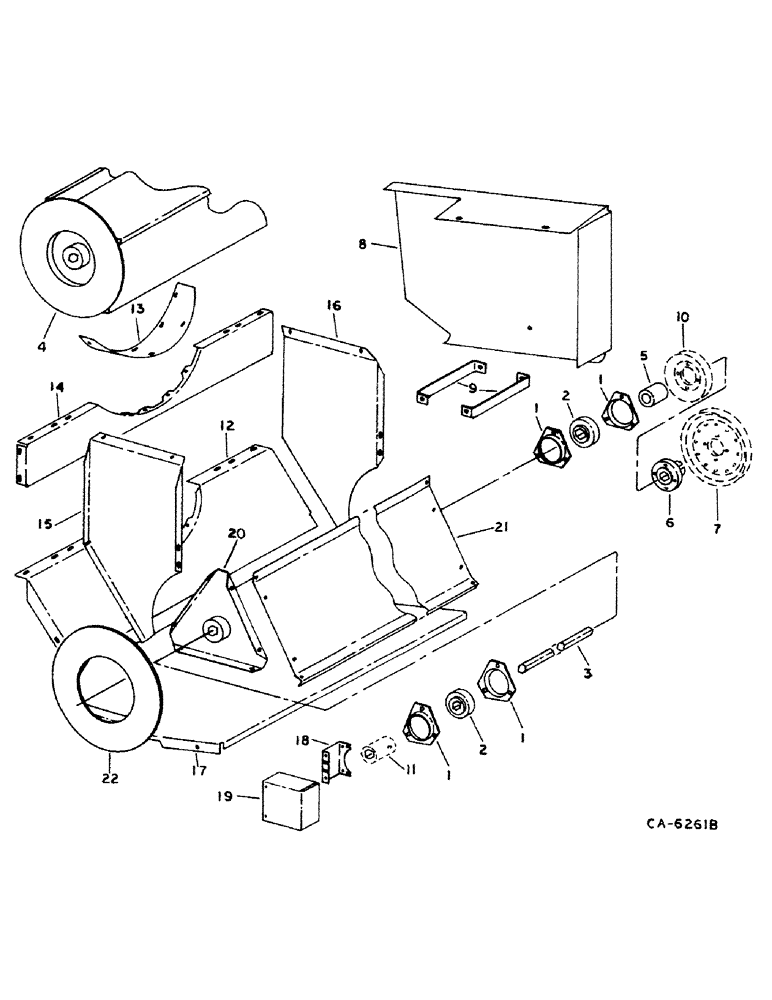

Запчасти Case IH 1482 (21-07) - THRESHING ROTOR AND CONCAVES, DISCHARGE BEATER (14) - THRESHING

1

180955C1

FLANGED BEARING,0.375"

FLANGE, beater bearing

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, discharge beater

2шт.

3

1302176C1

SHAFT

discharge beater

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

21290R1

WASHER

1.344 x 2.000 x .054

1шт.

21779R1

WASHER

1.344 x 2.0 x .105

1шт.

4

1300746C91

PACKAGE

discharge beater, Replaces 191023C1, Consists of:, Serial Range: -20000

1шт.

1319270C1

BLADE

beater

3шт.

1319266C1

HUB

ASSY, beater

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

5

632147R1

SPACER

beater driven pulley

1шт.

6

195216C2

HUB

beater drive pulley, Serial Range: -20000

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1/2 x 2-1/2 type 8

1шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

26273R1

WASHER

.531 x 1.062 x .134 phc hdn

1шт.

6

1319402C1

HUB

beater drive pulley, Start Serial: 20001

1шт.

24866R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

Hex, 1/2"-13 x 2 1/2", G8

1шт.

9412230

LOCK NUT

1/2 phc P/T lock type 8

1шт.

26273R1

WASHER

.531 x 1.062 x .134 phc hdn

1шт.

7

PULLEY ASSY, beater drive, Refer to group 20 under belt drive RH side

1шт.

8

195113C1

SUPPORT

beater drive

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

9

194760C1

SUPPORT

CHANNEL, beater drive shield

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

10

PULLEY ASSY, straw spreader drive, Refer to group 20 under straw spreader drive

1шт.

11

1302104C1

HUB

BUSHING, beater

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

12

191000C1

SUPPORT

beater

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

13

193916C1

SUPPORT

bottom front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

14

SUPPORT, rear lower cage, Refer to this group under cage

1шт.

15

193454C1

DEFLECTOR

- Discharge, LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

16

193455C1

DEFLECTOR

Discharge, RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

17

195454C1

BOTTOM

ASSY, rear

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

.406 x 1.125 x .134 phc hdn

1шт.

18

187629C1

SUPPORT

beater shaft sensor

1шт.

19

187630C1

SUPPORT

beater shaft

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

20

1319266C1

HUB

ASSY, beater, Replaces 183129C3

1шт.

S/N 20001 and above, For S/N 20000 and below furnish package 1300746C91.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

21

1319270C1

BLADE

beater, Replaces 183128C1

1шт.

S/N 20001 and above, For S/N 20000 and below furnish package 1300746C91.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

22

1319230C1

HUB

END ASSY, hub

1шт.

For machines with S/N 5501 through 20000, For machines with S/N 20000 and below, package 1300746C91 may also be furnished.

1шт.
