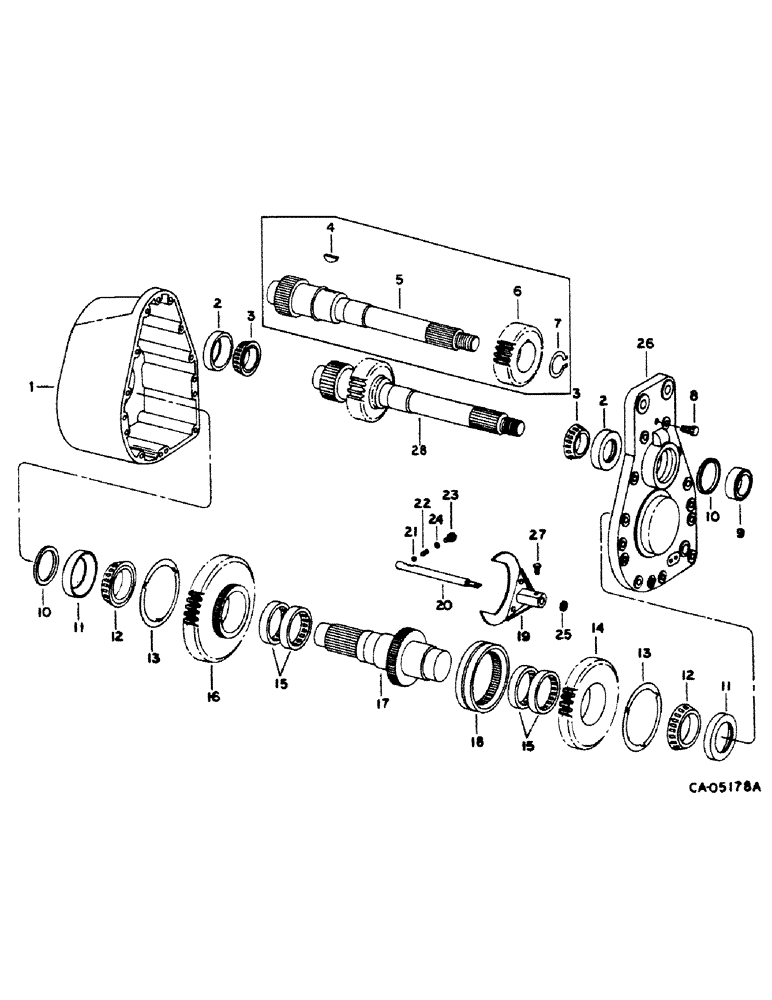

Запчасти Case IH 1482 (21-05) - THRESHING ROTOR AND CONCAVES, ROTOR DRIVE GEAR CASE (14) - THRESHING

194063C91

CASE ASSY.

CASE ASSY, rotor drive, Includes: Ref. 1 - 27

1шт.

1

194064C91

HOUSING ASSY.

HOUSING ASSY, rotor gear

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1.250 pln hdn dowel

1шт.

2

ST863

BEARING CUP,93.22mm OD x 23.81mm W

BEARING, cup

2шт.

3

ST783A

TAPERED BEARING,2" ID x 3.6718" OD x 1.1875"

BEARING, cone

2шт.

4

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff hardened

1шт.

5

SHAFT, rotor drive input, Furnish shaft and gear 1315481C1

1шт.

27821R1

LOCK NUT,1 1/4"-7, GB

NUT, 1-1/4 cad hex. type 5

1шт.

25541R1

WASHER

1.312 x 2.500 x .150 phc hdn

1шт.

6

193825C1

GEAR

driver, 26T

1шт.

7

684645R1

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

8

152127H1

BREATHER,1/8"-27, Short

VALVE ASSY, Case

1шт.

9

194047C1

BUSHING,49.16mm ID x 63.5mm OD x 21.02mm L

input shaft

1шт.

10

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

oil

2шт.

11

13363D

TAPERED BEARING

2шт.

12

13367DC

ROLLER BEARING

2шт.

13

194057C1

THRUST WASHER,127mm ID x 152.4mm OD x 1.6mm Thk

2шт.

14

193826C1

PINION

GEAR, driven, 51T

1шт.

15

619085C91

BEARING, NEEDLE,Needle, 76.19mm ID x 89.04mm OD x 19.05mm W

4шт.

16

193824C1

GEAR

GEAR, driven, 58T

1шт.

17

194059C1

SHAFT

rotor drive output

1шт.

18

194069C1

COLLAR

shift

1шт.

19

195088C1

FORK

ASSY, shift

1шт.

20

194067C2

SHAFT

shifter

1шт.

21

17014R1

BALL

7/16 grade 25 metal, shifter rail

1шт.

22

107234C1

SPRING

compression

1шт.

23

9410357

PLUG

5/16 c-z str thd o-ring boss

1шт.

25

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

shift rail, Replaces 549712R1

1шт.

26

194039C1

COVER

rotor gear case

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5

1шт.

27

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, 3/8-24 x 1 cup-pt sq-hd set

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

28

1315481C1

SHAFT

AND GEAR, rotor drive input, Replaces 193823C1, 19T and 26T

1шт.

27821R1

LOCK NUT,1 1/4"-7, GB

NUT, 1-1/4 cad p/t lock type 5

1шт.

25541R1

WASHER

1.312 x 2.500 x .150 phc hdn

1шт.

24

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

1шт.
