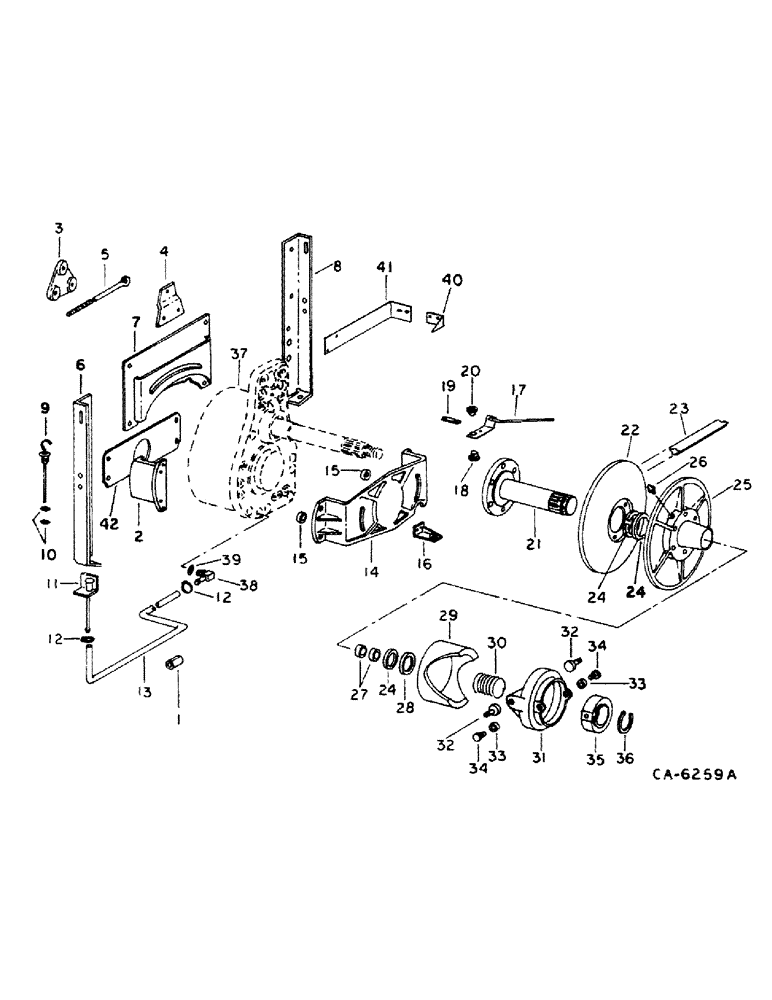

Запчасти Case IH 1482 (21-03) - THRESHING ROTOR AND CONCAVES, ROTOR DRIVE (14) - THRESHING

1

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

COVER, hose

1шт.

2

181314C2

BLOCK

SUPPORT, front gear case

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

188141C1

SUPPORT

gear case anchor

1шт.

4

188142C1

SUPPORT

gear case anchor

1шт.

5

188143C1

EYEBOLT

BOLT, gear case

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21573R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2 hd type 1

1шт.

23276R1

WASHER

.656 x 2.000 x .164

1шт.

6

188190C2

SUPPORT

gear case LH

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

7

188137C1

SUPPORT ASSY.

SUPPORT ASSY, gear case

1шт.

8

188191C2

SUPPORT

gear case RH

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

9

194066C91

DIPSTICK

GAGE ASSY, rotor gear case

1шт.

10

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x ID x 1/8 class 5

2шт.

11

181675C1

TUBE

gear case oil gage

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

183699C1

CLAMP,#6, 0.44/0.78 Type M Worm

fill and drain hose

2шт.

13

HOSE, gear case drain and fill, Use 19 in. of 1/2 ID hose from 25 ft. roll marked S118466

1шт.

14

194058C1

SUPPORT

gear case rear

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

15

194077C1

SPACER

gear case

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

16

188171C1

SUPPORT

gear case pivot

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

184561C1

LEVER

ASSY, rotor drive shift

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

18

277523R1

BUSHING

shift lever

1шт.

19

188169C1

BAR

shift lever

2шт.

21886R1

HEADED PIN,1/4" x 1"

PIN, 1/4 x 1 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

20

188170C1

NUT

NUT, shift lever

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

193962C2

HUB

fixed variable pulley

1шт.

22

185433C1

PULLEY

fixed half variable, 18.5 in. OD, 469.6 mm OD

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

23

189662C1

BELT

Rotor variable drive, 85 in. OC, 2159.00 mm OC

1шт.

24

193965C91

SEAL

adjustable variable pulley

3шт.

25

185417C91

PULLEY ASSY.

PULLEY ASSY, adjustable half variable, 18.5 in. OD, 469.9 mm OD, Includes: Ref. 24 & 26

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

537602R1

RING

inner seal

1шт.

26

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

1шт.

27

BUSHING, adjustable variable pulley, Not serviced separately, Order 188839C91

2шт.

28

188210C91

CAM FOLLOWER

BEARING ASSY, rotor drive thrust

1шт.

29

185416C1

CAM

rotor drive torque sensing

1шт.

30

193936C2

SPRING

rotor drive torque sensing

1шт.

31

195247C91

YOKE

ASSY, torque sensing cam follower, Includes: Ref. 33

1шт.

32

193943C91

BEARING ASSY

BEARING, cam follower

2шт.

33

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

cam follower yoke pivot

2шт.

34

194167C1

SCREW,5/8 - 11" x 1"

cam follower yoke pivot

2шт.

120371

NUT,1/2"-20, G5

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

35

193938C1

HUB

cam follower

1шт.

36

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

hub cam follower retainer

1шт.

37

CASE ASSY, rotor drive, Refer to this group under rotor drive gear case

1шт.

38

188272C1

ELBOW

gear case

1шт.

39

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 in. OD tube

1шт.

40

181893C1

ANGLE

gage

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

41

184543C1

SUPPORT

gage angle

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

1шт.

42

181315C1

PLATE

front gear case support

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

186364C1

RETAINER

torque sensing spring, Not illustrated, Used to service variable speed pulley

1шт.

186365C1

BOLT

BOLT, torque sensing spring removal or

2шт.

1319996C1

ROD,Hex, 3/8" x 10"

ASSY, torque sensing spring removal, Not illustrated, Used to service variable speed pulley

2шт.

188839C91

BUSHING

PACKAGE, variable pulley bushing and seal, Consists of:

1шт.

193965C91

SEAL

3шт.

BUSHING (NSS)

2шт.

LOCTITE (NSS)

1шт.

INSTRUCTIONS (NSS)

1шт.
