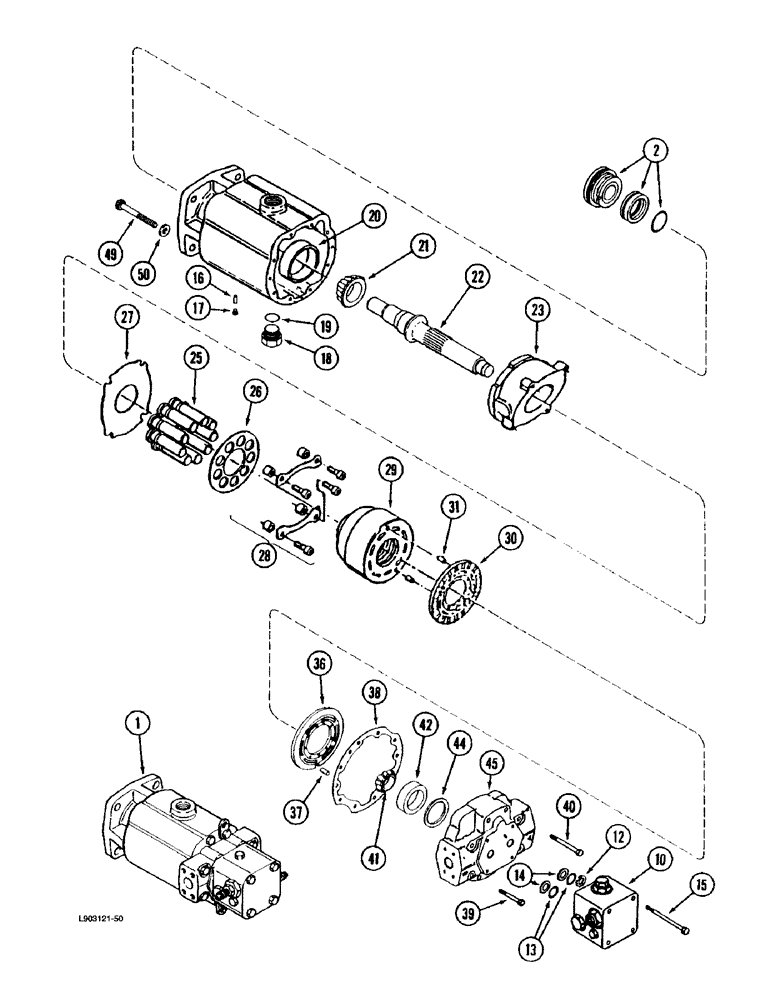

Запчасти Case IH 1670 (6-56) - HYDROSTATIC MOTOR (03) - POWER TRAIN

1

1343615C1

MOTOR

ASSEMBLY - hydrostatic, new, Includes: Ref. 2 - 50

1шт.

2

1346205C1

SEAL KIT

SEAL - shaft, three-piece

1шт.

10

1971432C1

BLOCK

ASSEMBLY - relief valve, parts list figure 6-34

1шт.

12

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- quad, 3/4 x 7/8 x 1/16 inch

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

- backup

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

16

37-1516

DOWEL,5/16" x 1"

PIN - dowel, 5/16 inch (Replaces pin 20020R1)

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 19 Hex Hd, 1 1/16"-12 ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

CUP - tapered roller bearing, 3-1/2 inch O.D.

1шт.

21

92742C1

TAPERED BEARING

BEARING - tapered roller, 1-7/8 inch ID

1шт.

22

1346259C1

SHAFT

- drive

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - swash, fixed

1шт.

1978053C1

KIT

- rotating, cylinder, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

31

140754C1

PIN

- dowel, 5/16 x 5/8 inch

5шт.

36

1346261C1

PLATE

- valve

1шт.

37

140754C1

PIN

- dowel, 5/16 x 5/8 inch

3шт.

38

92735C2

GASKET

- end cover

1шт.

39

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

40

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

6шт.

41

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

- tapered roller, 5/8 inch ID

1шт.

42

140759C1

BEARING CUP

CUP - tapered roller bearing, 2-1/4 inch O.D.

1шт.

140760C91

SHIM KIT

KIT - bearing shim, Includes: Ref. 44

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

45

NSS

NOT SOLD SEPARAT

HOUSING - motor (Order 1343615C1)

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

SCREW, Hex Soc Hd, 5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

- sealing

2шт.
