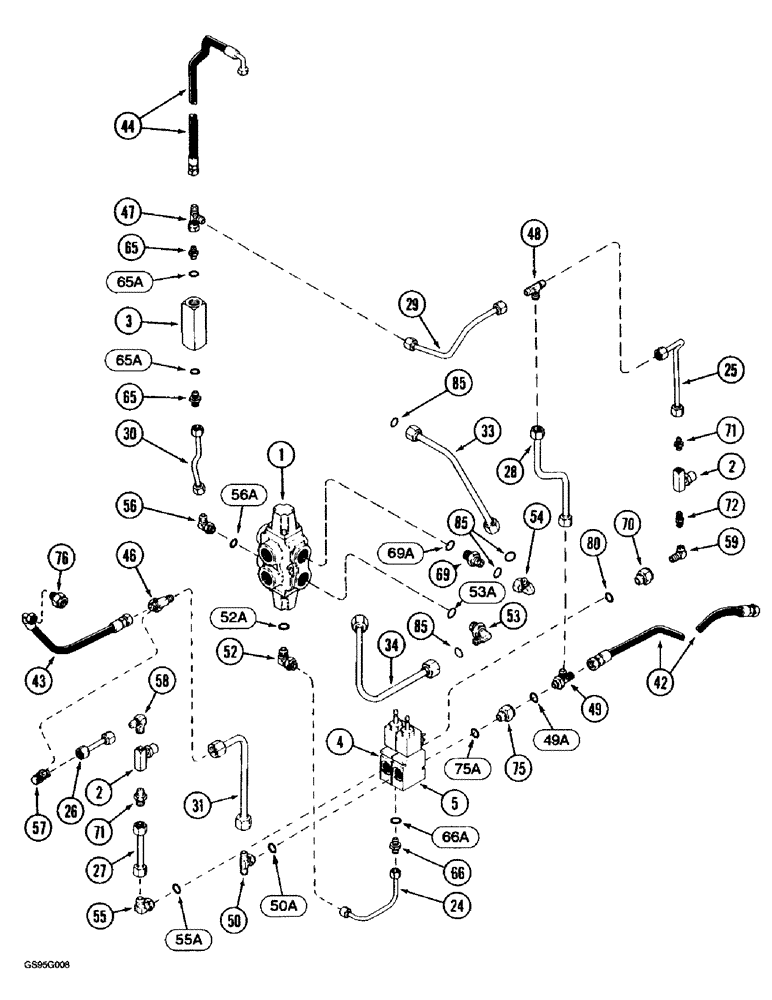

Запчасти Case IH 1670 (6-54) - REAR WHEEL DRIVE, DRIVE AND BRAKE VALVE SYSTEM (03) - POWER TRAIN

1994687C1

VALVE

ASSEMBLY - drive (Replaces valve assembly 1255430C92), Includes kit

1шт.

1255431C2

SEAL KIT

- seal repair

1шт.

2

1304962C1

VALVE

- flow control

2шт.

3

1304237C1

VALVE

- check

1шт.

4

1346049C1

VALVE

- rear brake

1шт.

5

1346049C1

VALVE

- 4 wheel drive

1шт.

24

1331340C1

TUBE ASSY.

TUBE - shift pressure

1шт.

25

1331341C1

TUBE ASSY.

TUBE - shift pressure

1шт.

26

1331342C1

TUBE ASSY.

TUBE - shift return

1шт.

27

1331343C1

TUBE ASSY.

TUBE - shift return

1шт.

28

1331344C1

TUBE ASSY.

TUBE - charge pressure

1шт.

29

1331345C1

HYD TUBE

TUBE - charge pressure

1шт.

30

1331346C1

TUBE ASSY.

TUBE - charge pressure

1шт.

31

1331347C1

HYD TUBE

TUBE - drain return

1шт.

33

1331373C1

TUBE ASSY.

TUBE - drive valve

1шт.

34

1331374C1

TUBE ASSY.

TUBE - drive valve

1шт.

42

1347348C1

HOSE ASSY.

HOSE - charge pressure

1шт.

43

1347347C1

HOSE ASSY.

HOSE - drain return

1шт.

44

1347346C1

HOSE ASSY.

HOSE - charge pressure

1шт.

46

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel branch x flare x flare

1шт.

47

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 9/16-18 inch flare branch x flare x swivel

1шт.

48

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

1шт.

49

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj. O-ring boss, Includes: Ref. 49A

1шт.

49a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

50

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch adj O-ring branch x flare x flare, Includes: Ref. 50A

1шт.

50a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

52

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj. O-ring boss, Includes: Ref. 52A

1шт.

52a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

53

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/6-12 inch adj. O-ring boss, Includes: Ref. 53A

1шт.

53a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

54

201-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1шт.

55

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring boss, Incl. Ref. 55A

1шт.

55a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

56

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, 9/16-18 flare x 7/16-20 inch adj. O-ring boss, Incl. Ref. 56A

1шт.

56a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

57

218-1505

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, 37 Degree

- 90 degree, 1/2 x 3/8 inch

1шт.

58

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 9/16-18 flare x 1/8 inch PT

1шт.

59

1331384C1

ELBOW

- 90 degree special

1шт.

65

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 65A

2шт.

65a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

66

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 7/16-20 flare x 3/4-16 inch O-ring boss, Includes: Ref. 66A

1шт.

66a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

69

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 69A 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

69a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

70

218-5423

ADAPTER

CONNECTOR - 1/2 x 1/4 inch PT

1шт.

71

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

72

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

NIPPLE - hex, 1/8 PT x 1-1/16 inch

1шт.

75

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

REDUCER - 3/4-16 O-ring boss x 9/16-18 inch female, Includes: Ref. 75A

1шт.

75a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

76

218-1700

REDUCER,37 Degree, 1 5/16"-12, Fem x 3/4"-16 Male

ADAPTER - reducing, 1-5/16-12 female str thread x 3/4-16 inch flare

1шт.

85

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.
