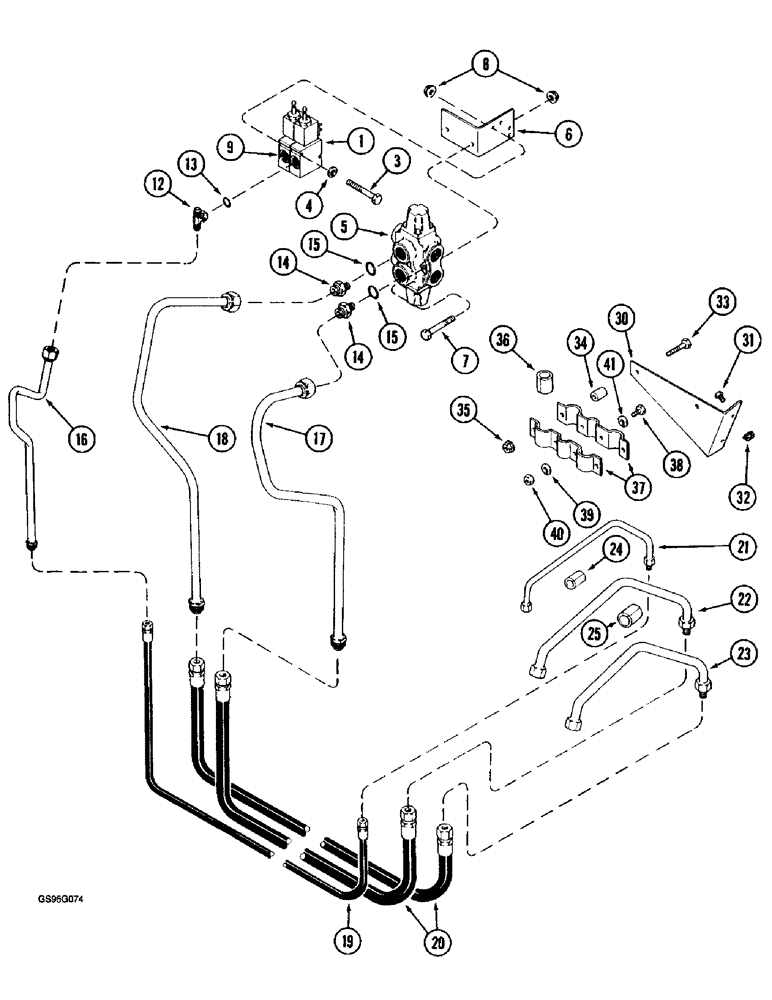

Запчасти Case IH 1670 (6-52) - REAR WHEEL DRIVE, DRIVE VALVE SYSTEM (03) - POWER TRAIN

1

1346049C1

VALVE

- 4 wheel drive

1шт.

3

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

5

1994687C1

VALVE

ASSEMBLY - drive (Replaces valve assembly 1255430C92), Includes kit

1шт.

1255431C2

SEAL KIT

- seal repair

1шт.

6

1331296C2

SUPPORT

- drive valve mounting

1шт.

7

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

1346049C1

VALVE

- rear brake

1шт.

12

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch adj O-ring branch x flare x flare

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring boss, Incl. Ref. 15

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

16

1331366C1

TUBE ASSY.

TUBE - drain

1шт.

17

1331368C1

TUBE ASSY.

TUBE - drive reverse

1шт.

18

1331369C1

TUBE ASSY.

TUBE - drive forward

1шт.

19

1301966C2

HYDRAULIC HOSE

HOSE - drain

1шт.

20

1304281C2

HOSE

- drive pressure

2шт.

21

1304874C1

TUBE,0.5" OD, 14.5, 5.1" Length

- drain

1шт.

22

1304864C1

HYD TUBE,1" OD, 19, 7" Length

TUBE - drive forward pressure

1шт.

23

1304865C1

HYD TUBE,1" OD, 17.5, 7" Length

TUBE - drive reverse pressure

1шт.

24

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long

1шт.

25

187935C1

STRIP

SLEEVE - pressure tube clamp

1шт.

30

1304623C1

SUPPORT

BRACKET - support

1шт.

31

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

2шт.

32

231-5146

FLANGE NUT,3/8"-16

2шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

2шт.

35

231-5146

FLANGE NUT,3/8"-16

2шт.

36

187935C1

STRIP

SLEEVE - pressure tube clamp

2шт.

37

187934C1

CLAMP

- tube

2шт.

38

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

40

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

41

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.
