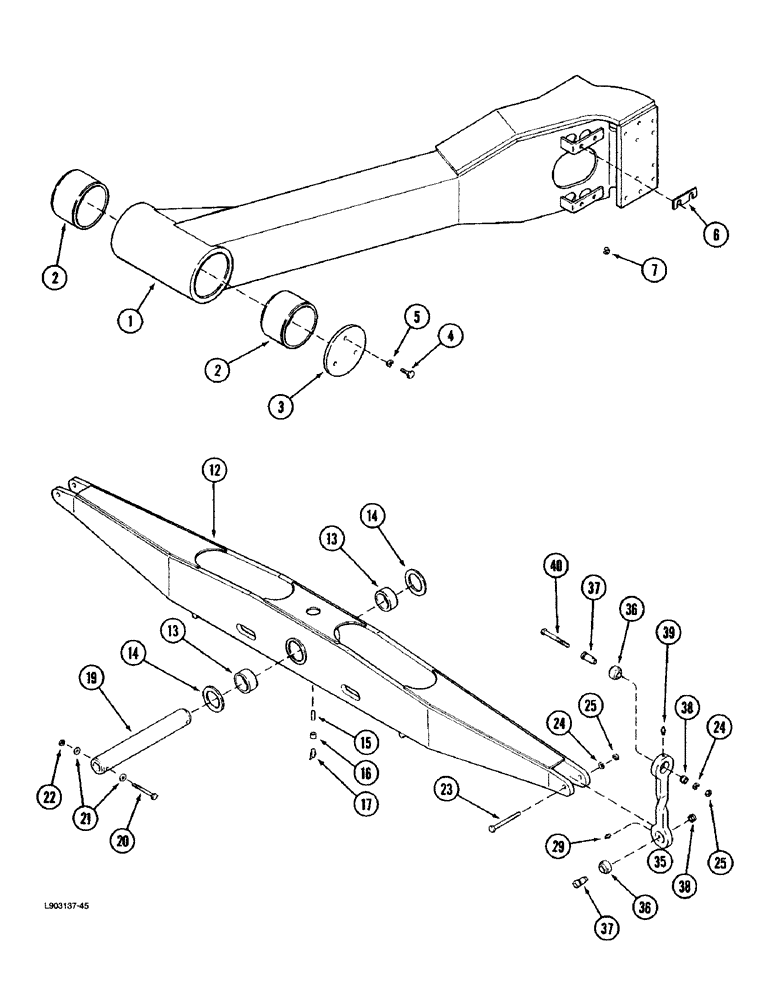

Запчасти Case IH 1670 (6-44) - DRIVE AXLE (03) - POWER TRAIN

1

1331240C1

ARM ASSY.

ARM ASSEMBLY - axle radial, left-hand, Includes: Ref. 2

1шт.

1

1331239C1

ARM ASSY.

ARM ASSEMBLY - axle radial, right-hand, Includes: Ref. 2

1шт.

2

1304130C1

BUSHING

- radial arm

2шт.

3

1331243C1

CAP

- radial arm

2шт.

4

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

6шт.

5

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

6

1304289C1

SHIM

- caliper, 0.06 inch

1шт.

6

1304288C1

SHIM

- caliper, 0.12 inch

1шт.

7

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

- tapered

4шт.

12

1304133C91

BEAM ASSY.

AXLE ASSEMBLY - drive, Includes: Ref. 13

1шт.

13

174122H1

BUSHING

- drive axle

2шт.

14

1304156C1

THRUST WASHER

- thrust

2шт.

15

221-109

PIPE,Nipple, 1/8" NPT x 2"

REDUCER - pipe, 3/4 male x 1/8 inch female (Replaces nipple 114794)

1шт.

16

105408

COUPLING,1/8" NPT

- pipe, 1/8 inch

1шт.

17

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

19

1304140C1

TUBE

PIN - pivot

1шт.

20

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.

21

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

4шт.

22

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

23

428-14112

BOLT - hex, 7/8 NC x 7 inch, grade 8

2шт.

24

392-21088

LOCK WASHER,7/8"

7/8"

4шт.

25

329-1114

NUT,7/8"-14, G8

- hex, 7/8 inch NC, grade 8

4шт.

35

1304166C92

ROD ASSY.

LINK ASSEMBLY - connecting, Includes: Ref. 36 - 39

2шт.

36

NSS

NOT SOLD SEPARAT

BEARING - self-aligning

2шт.

37

1330031C1

BUSHING

- connecting link

2шт.

38

1330030C1

RETAINER

- connecting link

2шт.

39

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

40

428-1496

BOLT - hex, 7/8 NC x 6 inch, grade 8

2шт.
