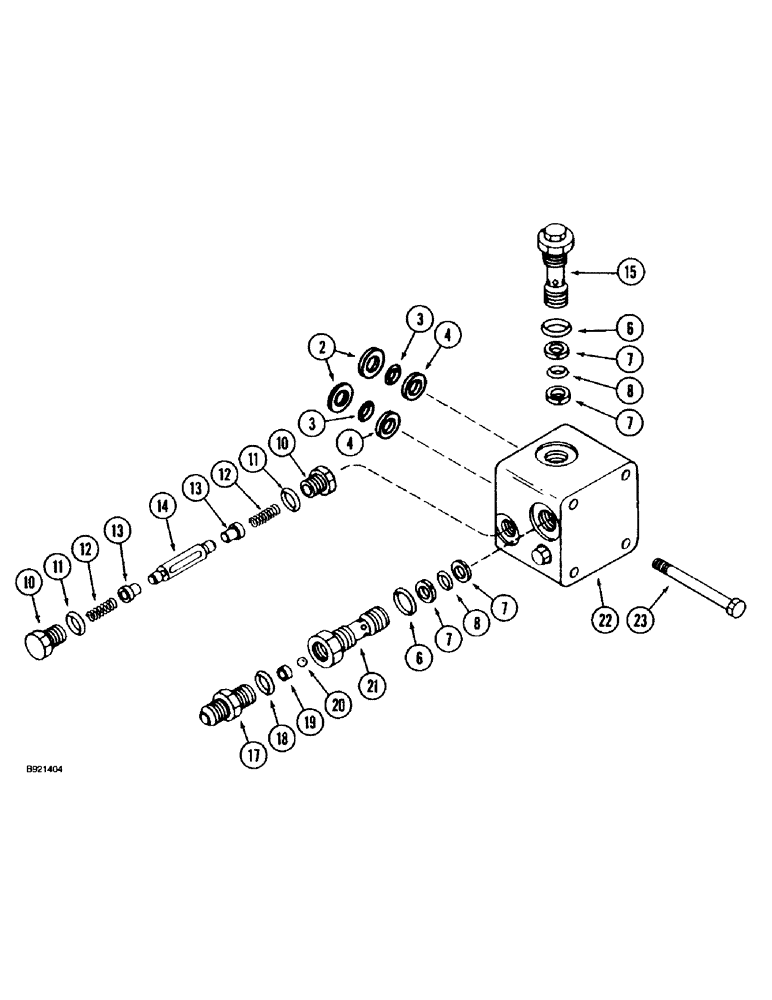

Запчасти Case IH 1670 (6-34) - HYDROSTATIC MOTOR, RELIEF VALVE BLOCK (03) - POWER TRAIN

1971432C2

VALVE

BLOCK ASSEMBLY - relief valve (Replaces block assembly 1971432C1), Includes: Ref. 2 - 22

1шт.

1971433C1

VALVE

BLOCK ASSEMBLY - relief valve, no longer available, order valve 1971432C2, Includes: Ref. 2 - 22

1шт.

140747C92

SEAL KIT

KIT - seal replacement (Replaces kit 140747C91), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - quad, 3/4 x 7/8 x 1/16 inch (Order 140747C92 kit)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3/4 ID x 1/16 inch wide (Order 140747C92 kit)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - backup (order 140747C92 kit )

2шт.

393885R91

GASKET KIT

KIT - relief valve seal, Includes: Ref. 6 - 8

3шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

7

393887R1

BACK-UP RING

RING - backup

2шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

145559C91

KIT

- shuttle valve, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - (Order 145559C91)

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

12

145560C1

SPRING

- shuttle valve

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE - shuttle (Order 145559C91)

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - shuttle (Order 145559C91)

1шт.

15

140761C1

VALVE PRESSURE RELIE

VALVE Assy - low pressure relief

1шт.

1971415C1

VALVE

ASSEMBLY - feathering relief, Includes: Ref. 17 - 21

2шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR - special (Order 1971415C1)

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1/4 inch O.D. tube (Order 1971415C1)

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - ball guide (Order 1971415C1)

1шт.

20

NSS

NOT SOLD SEPARAT

BALL - steel, 1/4 inch (Order 1971415C1)

1шт.

21

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve (Order 1971415C1)

1шт.

22

NSS

NOT SOLD SEPARAT

BLOCK - valve (Order 1971433C1)

1шт.

23

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.
