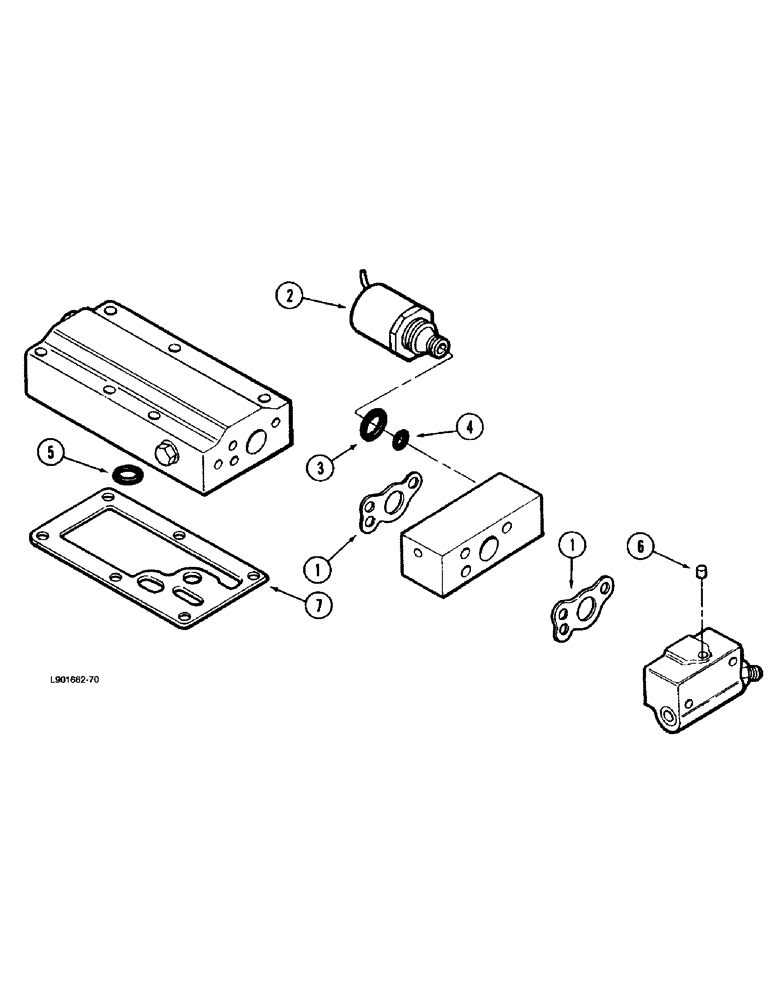

Запчасти Case IH 1670 (6-32) - HYDROSTATIC MOTOR, MOTOR CONTROL VALVE (03) - POWER TRAIN

1255068C91

KIT

VALVE ASSEMBLY - motor control, Includes: Ref. 1 - 7

1шт.

Used with quantity of one block hose, see figure 6-30

1шт.

145336C92

VALVE

ASSEMBLY - motor control, Includes: Ref. 1 - 7

1шт.

Used with quantity of two block hose, see figure 6-30

1шт.

1

1272954C1

GASKET,0.43mm Thk

- valve body

2шт.

Part of Control Valve Body Plug P/N 92649C1

1шт.

2

145338C2

SOLENOID

ASSEMBLY - control valve

1шт.

255834A1 - VALVE CARTRIDGE

1шт.

298985A1 - SOLENOID 2 - SPEED

1шт.

298986A1 - NUT - 1/2 - 20 NF - 1/4 THICK

1шт.

SEAL KIT FOR 145338C2 IS 1542831C1.

1шт.

145338C2 - PARTS IN THIS CAN BE ORDERED SEPARATELY

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

355967R1

O-RING,0.364" ID x 0.003" Width

- 3/8 ID x 1/16 inch wide

1шт.

5

1341840C1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- retaining (Replaces O-ring 92647C1)

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - valve body (Order 92649C91)

1шт.

Part of Control Valve Body Plug P/N 92649C1

1шт.

7

145337C1

GASKET

- control valve

1шт.

92649C1

KIT

- service, control valve body plug, Includes: Ref. 1 and 6

1шт.
