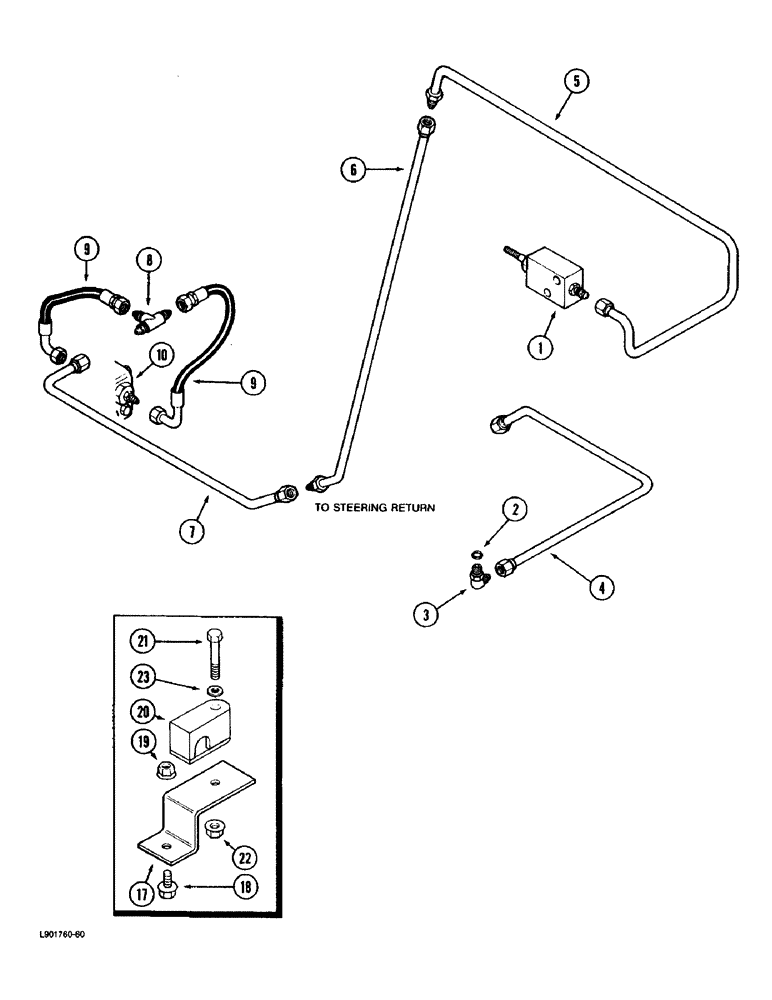

Запчасти Case IH 1670 (6-10) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN

1

1986875C1

VALVE

ASSEMBLY - Foot-N-Inch, parts list figure 6-12

1шт.

3

164596C1

ELBOW

- 90 degree, 9/16-18 inch thread

1шт.

4

1321273C1

HYD TUBE

TUBE - Foot-N-Inch valve return

1шт.

5

1321272C2

HYD TUBE

TUBE - Foot-N-Inch, upper

1шт.

6

1327829C1

HYD TUBE

TUBE - Foot-N-Inch valve, center

1шт.

7

1304918C1

HYD TUBE

TUBE - Foot-N-Inch, lower

1шт.

8

218-591

TEE,7/16"-20, 37 Degree

- 7/16-20 inch flare branch x flare x flare (Replaces tee 9402979)

1шт.

9

175760C2

HYDRAULIC HOSE,6.35mm ID x 254mm L, SAE 100R2

HOSE - Foot-N-Inch, 10 inch (254 mm) long (Replaces hose 175760C1)

2шт.

10

1346324C1

MOTOR

ASSEMBLY - hydrostatic, parts list figure 6-26

1шт.

17

196517C1

SUPPORT TUBE

SUPPORT - Foot-N-Inch tubes

1шт.

18

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

19

231-5146

FLANGE NUT,3/8"-16

1шт.

20

183820C1

CLAMP

- Foot-N-Inch tube

1шт.

21

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

23

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

1шт.

2

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
