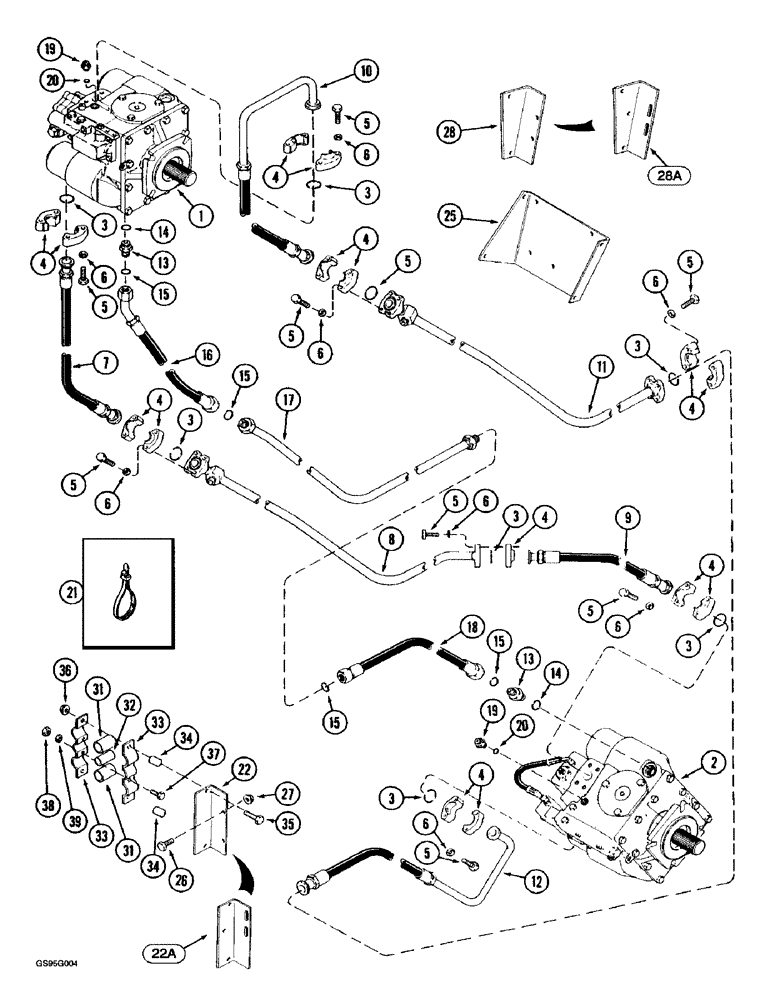

Запчасти Case IH 1670 (6-06) - HYDROSTATIC PUMP AND MOTOR SYSTEM (03) - POWER TRAIN

1

1343716C3

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, parts list figure 6-16

1шт.

87637528R

REMAN-HYDROSTAT PUMP

1670 (S/N JJC0080540 AND AFTER) (8/90-), Reman for New P/N 1343716C3

1шт.

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

1346324C1

MOTOR

ASSEMBLY - hydrostatic, parts list figure 6-26

1шт.

3

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

8шт.

4

S97224

CLAMP

- split flange, 1 inch

16шт.

5

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

32шт.

6

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

32шт.

7

1347124C2

HOSE,25.4mm ID x 550mm L

- forward pressure, upper, 20-3/8 inch (518 mm) long, different end fittings, if used (Replaces hose 1347124C1)

1шт.

7

1979952C3

HOSE,25.4mm ID x 546mm L

- forward pressure, upper, 21-1/2 inch (546 mm) long, same end fittings, if used

1шт.

8

1979930C1

TUBE

ASSEMBLY - forward pressure

1шт.

9

1979954C2

HOSE

- forward pressure, lower, 40-1/2 inch (1026 mm) long (Replaces hose 1979954C1)

1шт.

10

1979955C2

HOSE

- reverse pressure, 34 inch (860 mm) long (Replaces hose 1979955C1)

1шт.

11

1979931C1

TUBE,1.25" OD

- reverse pressure

1шт.

12

1979957C2

HOSE

- reverse pressure, lower, 48-1/2 inch (1230 mm) long (Replaces hose 1979957C1)

1шт.

13

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - Straight, Incl Ref 14 1 7/16"-12 ORFS x 1 1/16"-12 ORB

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

16

1979936C1

HOSE

- 16-1/2 inch (420 mm) long

1шт.

17

1979932C1

HYD TUBE

TUBE - case drain

1шт.

18

1979937C1

HOSE

- drain

1шт.

19

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 20

2шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

21

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

6шт.

22

1347034C1

SUPPORT

BRACKET - tube support, rear, if used

1шт.

22a

187936C2

BRACKET

- tube support, rear, if used

1шт.

25

1347198C1

SUPPORT

- hydrostatic tube

1шт.

26

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

28

1347033C1

SUPPORT

BRACKET - tube support, front, if used

1шт.

28a

187937C2

BRACKET

- tube support, front, if used

1шт.

31

1979963C1

SHIN

STRIP - pressure tube clamp

6шт.

32

187935C1

STRIP

SLEEVE - pressure tube clamp

3шт.

33

1979951C1

SHIN

CLAMP - half

6шт.

34

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

6шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

36

231-5146

FLANGE NUT,3/8"-16

6шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

38

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
