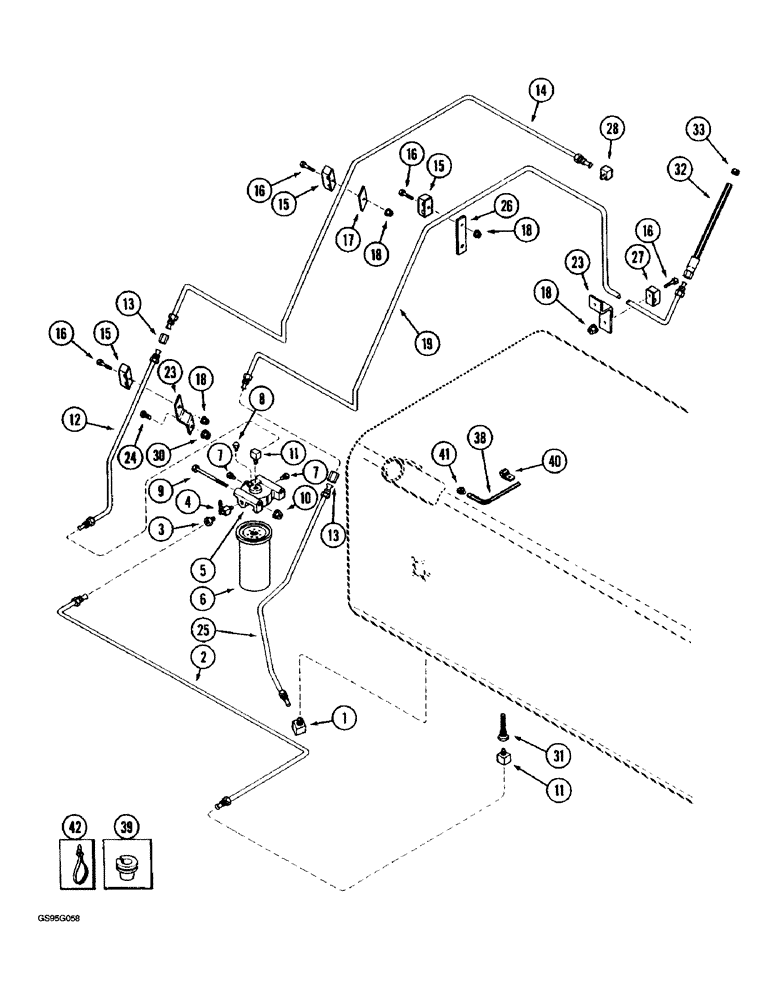

Запчасти Case IH 1670 (3-10) - FUEL LINE SYSTEM (02) - FUEL SYSTEM

1

144535R1

ELBOW

- 90 degree, special, 3/8 inch inverted flare

1шт.

2

1977000C1

HYD TUBE,0.375" OD

TUBE - fuel line, filter base to tank (Replaces tube 1315507C1)

1шт.

3

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

CONNECTOR, HYD., 5/8"-18 Inv Fl x 1/4" NPT

2шт.

4

1315522C1

FAUCET

VALVE - fuel shutoff

1шт.

5

612277C2

FILTER HEAD

BASE - fuel filter

1шт.

6

A184776

FUEL FILTER

FILTER - fuel

1шт.

7

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 20988R1)

2шт.

8

444614

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT

1шт.

9

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 NC x 4 inch, grade 2

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

11

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

2шт.

12

1977001C1

HYD TUBE

TUBE - fuel supply, lower (Replaces tube 1315506C1)

1шт.

13

222-1055

HYD CONNECTOR,3/8" Inv Fl

COUPLING - 5/8-18 inch, inverted flare (Replaces union 442338)

2шт.

14

1330563C1

FUEL TUBE

TUBE - fuel supply, upper

1шт.

15

183825C1

CLAMP

- fuel line tube

3шт.

17

198462C1

PLATE

- fuel line upper tubes support

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

19

1330562C2

FUEL TUBE

TUBE - fuel return, upper

1шт.

23

196517C1

SUPPORT TUBE

SUPPORT - tube

2шт.

24

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

25

183653C2

FUEL TUBE

TUBE - fuel return, lower

1шт.

26

1330564C1

PLATE

SUPPORT - fuel tube

1шт.

27

183821C1

CLAMP

- tube

1шт.

28

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

31

179381C1

SIEVE

STRAINER - fuel

1шт.

32

1979437C1

FUEL HOSE,9.53 mm ID x 330.00 mm, SAE 30R2 Type 1 Class 1, SAE 100R6 Class 14

Return, Cut From Bulk Hose Below 9.53 mm ID x 330.00 mm, SAE 30R2 Type 1 Class 1, SAE 100R6 Class 14

1шт.

33

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

1шт.

38

1251794C1

FUEL TUBE,2946.40 mm, SAE J844C

TUBE , Vent, Cut From Bulk Tube 2946.40 mm, SAE J844C

1шт.

39

195803C1

GROMMET

- tube, 3/8 inch O.D.

1шт.

40

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

41

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - hose retaining, adj, 1/4 - 5/8 inch dia.

1шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 10 inch

1шт.

364357C1

LARGE HOSE

HOSE - bulk, 3/8 (10) ID x 600 inch (15240 mm) long

1шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
