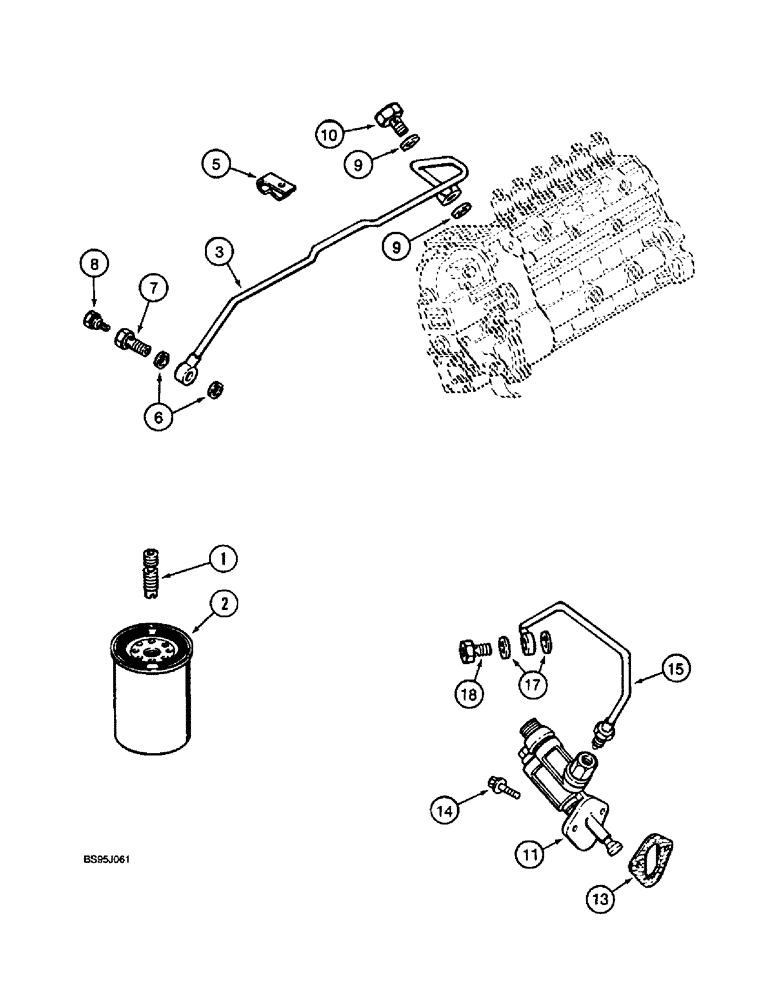

Запчасти Case IH 1670 (3-04) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 ENGINE (02) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter, replaces J903845 adapter

1шт.

2

J903640

FILTER, FUEL

FILTER - fuel

1шт.

3

J912925

FUEL TUBE,8 mm OD x 656.2 mm L

TUBE - fuel supply

1шт.

5

J914711

CLIP

CLAMP - P-type, replaces A77436 clamp

1шт.

6

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm, replaces J903037 washer

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

9

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

10

J907541

BANJO BOLT

BOLT - banjo connector

1шт.

11

J917998

PUMP

- fuel lift and transfer, see J920544 repair kit below, Ref. 18 through 22

1шт.

13

J914304

GASKET

- mounting, fuel transfer pump

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

15

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE - supply

1шт.

17

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm, replaces J903037 washer

2шт.

18

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

J920544

GASKET KIT

KIT - repair, seal, lift pump, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

20

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

3шт.

23

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.
