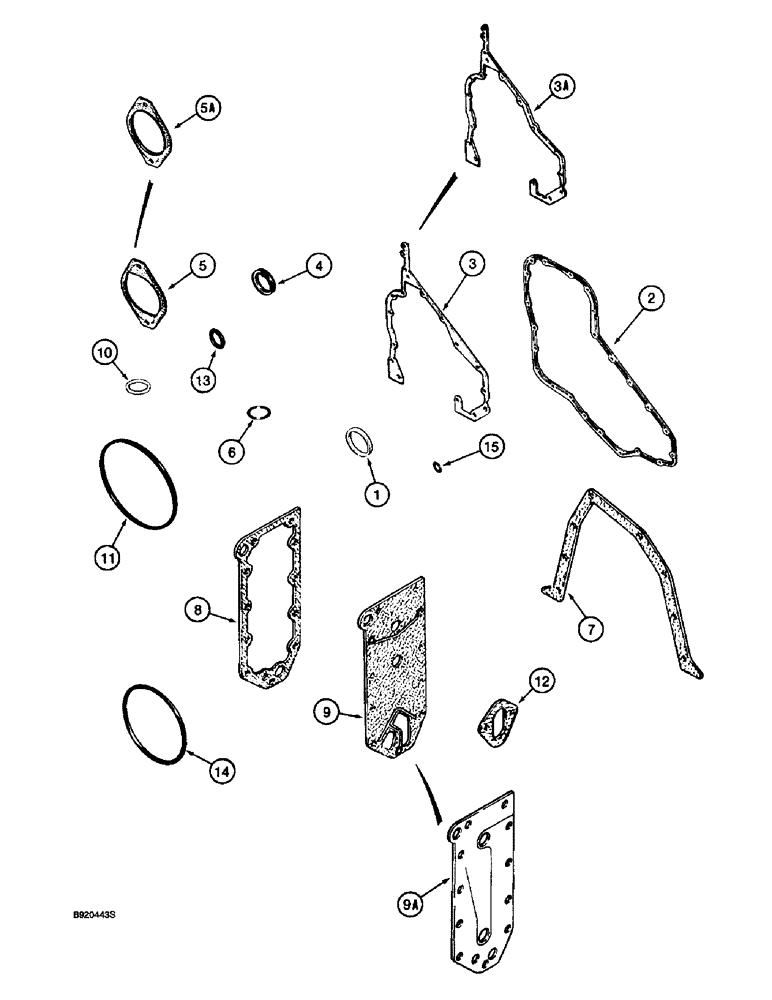

Запчасти Case IH 1670 (2-61A) - CYLINDER BLOCK GASKET KITS, 6TA-830 ENGINE (01) - ENGINE

A77718

GASKET KIT

KIT - gasket, cylinder block, prior to eng s/n 44500128, Includes: Ref. 1 - 15

1шт.

For complete engine overhaul order 1 valve grind kit, Figure 2-60, 1 cylinder block kit shown on this Figure, 1 oil pan gasket kit, Figure 2-34, front and rear crankshaft seal kit, Figure 2-54, and required cylinder head gasket, Figure 2-36.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, prior to eng s/n 44500128

1шт.

2

J917779

GASKET,0.98mm Thk

- front gear cover, prior to eng s/n 44500128

1шт.

3

J281721

GASKET

- housing, gear, replaces J914303 gasket, prior to eng s/n 44500128

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing, prior to eng s/n 44500128

1шт.

5

J919601

GASKET

- access cover plate, replaces J913288 gasket, prior to eng s/n 44500128

1шт.

6

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, water pump, prior to eng s/n 44500128

1шт.

7

J914301

GASKET

- rear cover retainer, crankshaft, prior to eng s/n 44500128

1шт.

8

J918174

GASKET,0.71mm Thk

- cooler core, replaces J914307 gasket, prior to eng s/n 44500128

1шт.

9

J914308

GASKET

- filter head, to cooler core, prior to eng s/n 44500128

1шт.

10

J901798

SEALING WASHER

WASHER - sealing, not used in this application, prior to eng s/n 44500128

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, not used in this application, prior to eng s/n 44500128

1шт.

12

J914304

GASKET

- mounting, fuel transfer pump, prior to eng s/n 44500128

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Not used in this application, prior to eng S/N 44500128 -212, 70 Duro, .859" ID x .139" Thk

1шт.

14

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sealing, sleeve, prior to eng s/n 44500128

6шт.

15

J913994

O-RING

- sealing, timing pin, prior to eng s/n 44500128

1шт.

A77726

KIT

- gasket, cylinder block, prior to eng s/n 44500128, Includes: Ref. 1 - 15

1шт.

For complete engine overhaul order 1 valve grind kit, Figure 2-60, 1 cylinder block kit shown on this Figure, 1 oil pan gasket kit, Figure 2-34, front and rear crankshaft seal kit, Figure 2-54, and required cylinder head gasket, Figure 2-36.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, eng s/n 44500128 & aft

1шт.

2

J917779

GASKET,0.98mm Thk

- front gear cover, eng s/n 44500128 & aft

1шт.

3a

J281721

GASKET

- housing, gear, eng s/n 44500128 & aft

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing, eng s/n 44500128 & aft

1шт.

5a

J919601

GASKET

- access cover plate, eng s/n 44500128 & aft

1шт.

6

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, water pump, eng s/n 44500128 & aft

1шт.

7

J914301

GASKET

- rear cover retainer, crankshaft, eng s/n 44500128 & aft

1шт.

8

J918174

GASKET,0.71mm Thk

- cooler core, replaces J914307 gasket, eng s/n 44500128 & aft

1шт.

9a

J918332

GASKET

- cooler cover, eng s/n 44500128 & aft

1шт.

10

J901798

SEALING WASHER

WASHER - sealing, not used in this application, eng s/n 44500128 & aft

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, not used in this application, eng s/n 44500128 & aft

1шт.

12

J914304

GASKET

- mounting, fuel transfer pump, eng s/n 44500128 & aft

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Not used in this application, eng S/N 44500128 & aft -212, 70 Duro, .859" ID x .139" Thk

1шт.

14

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sealing, sleeve, replaces J917737 O-ring, eng s/n 44500128 & aft

6шт.

15

J913994

O-RING

- sealing, timing pin, eng s/n 44500128 & aft

1шт.
