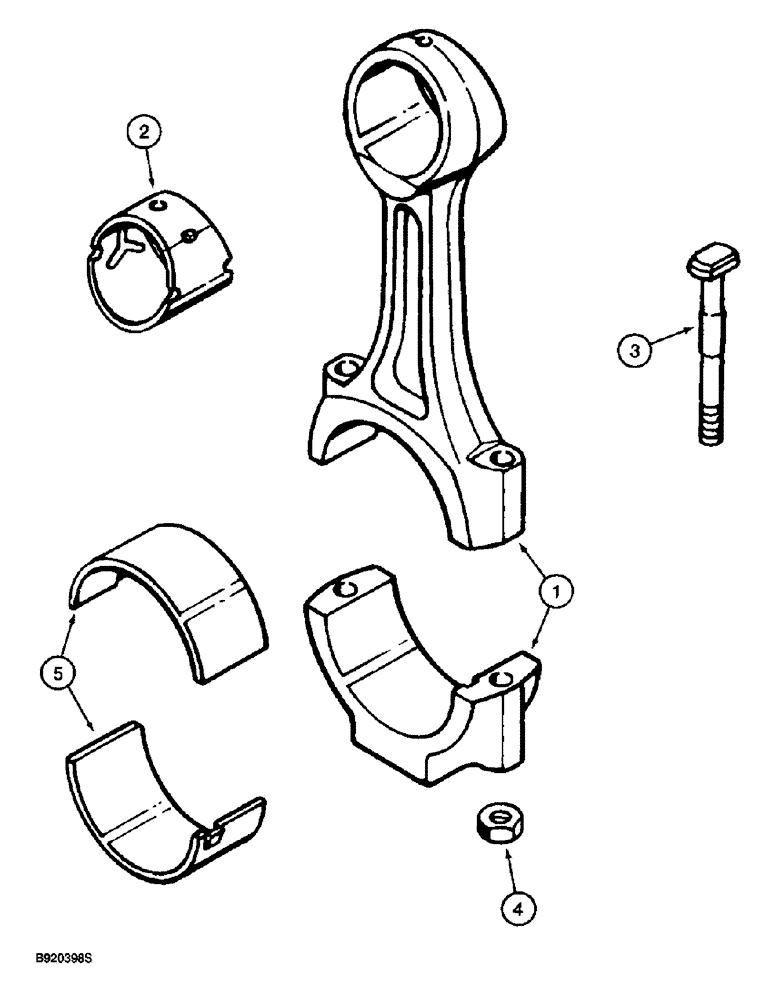

Запчасти Case IH 1670 (2-59C) - CONNECTING RODS, 6TA-830 ENGINE (01) - ENGINE

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 4

6шт.

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly, Includes: Ref. 1 - 4

1шт.

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting, new, Includes: Ref. 1 - 4

6шт.

84487529R

REMAN-CONNECTING ROD

1670 S/N JJC0080540 & AFTER (8/90-), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - connecting, two-piece

1шт.

2

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- connecting rod

1шт.

3

J924351

BOLT

- special, rod, bearing cap, replaces J901380 and J920799 bolt

2шт.

4

J901381

SPECIAL NUT

- hex, rod bolt

2шт.

5

A77563

BEARING SET

KIT - bearing, upper and lower, standard

6шт.

5

A77564

BEARING SET

KIT - bearing, upper and lower, 0.25 mm undersize

6шт.

5

A77565

BEARING SET

KIT - bearing, upper and lower, 0.50 mm undersize

6шт.

5

A77566

BEARING SET

KIT - bearing, upper and lower, 0.75 mm undersize

6шт.

5

A77567

BEARING SET

KIT - bearing, upper and lower, 1.00 mm undersize

6шт.
