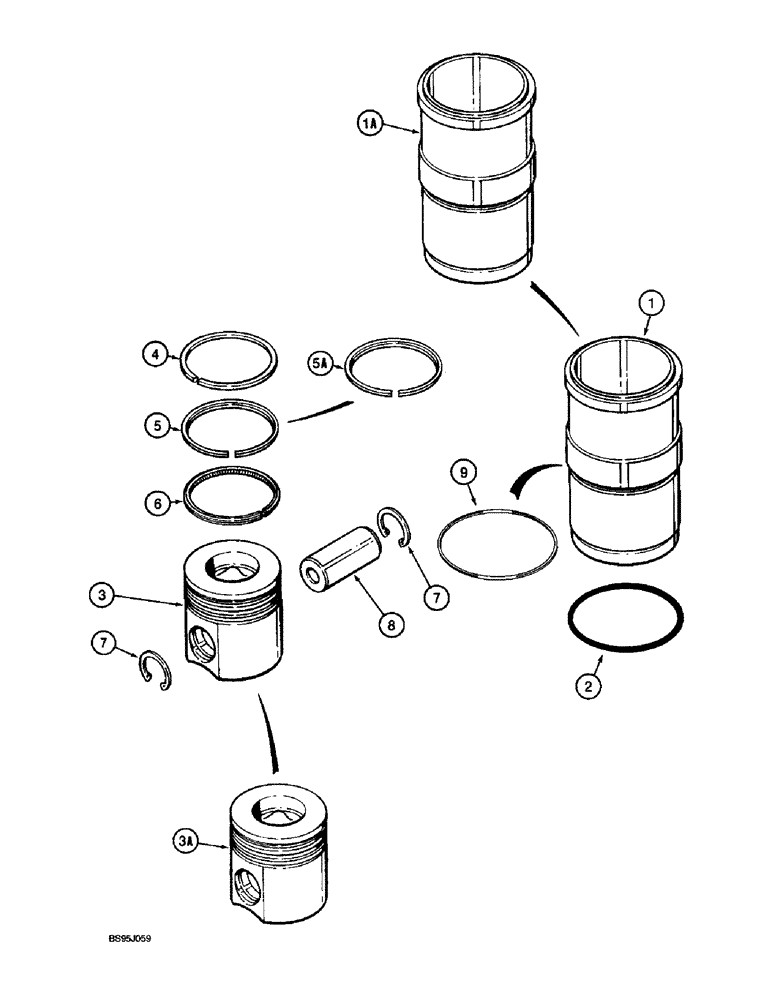

Запчасти Case IH 1670 (2-59A) - PISTONS, 6TA-830 ENGINE, FOR ENGINE S/N 44706126 AND AFTER (01) - ENGINE

A77799

PACKAGE, REPAIR

KIT - piston and sleeve, engine, includes piston stamped 9565 or 3164, eng s/n 44706126 & aft, Includes: Ref. 1A - 7

6шт.

1a

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston, eng s/n 44706126 & aft

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, piston eng s/n 44706126 & aft

1шт.

A77773

PISTON ASSY.

KIT - piston, engine, standard, includes piston stamped 9565 or 3164, eng s/n 44706126 & aft, Includes: Ref. 3A - 6

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9565 or 3164, eng s/n 44706126 & aft

1шт.

A77744

PACKAGE

KIT - ring, piston, used with piston stmped 9565 or 3164, eng s/n 44706126 & aft, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, eng s/n 44706126 & aft

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, eng s/n 44706126 & aft

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, eng s/n 44706126 & aft

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, (Replaces J901996 and G109044), Engine S/N 44706126 & aft 1.75", Int, #175

2шт.

8

J901597

PIN

-piston eng s/n 44706126 & aft

1шт.

9

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Replaces J914653 shim, Piston eng S/N 44706126 & aft 0.254mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J914654

SHIM,.015" Thk

Cylinder sleeve (0.381 mm), Piston eng S/N 44706126 & aft .015" Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J914655

SHIM,.020" Thk

Cylinder sleeve (0.508 mm), Piston eng S/N 44706126 & aft .020" Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030"), Piston eng S/N 44706126 & aft 0.762mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040"), Piston eng S/N 44706126 & aft 1.000mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.
