Запчасти Case IH 1670 (2-58) - PISTON AND SLEEVE, 6TA-830 ENGINE, PRIOR TO ENG. S/N 44536857, AND ENG. S/N 44536857 THRU 44706125 (01) - ENGINE

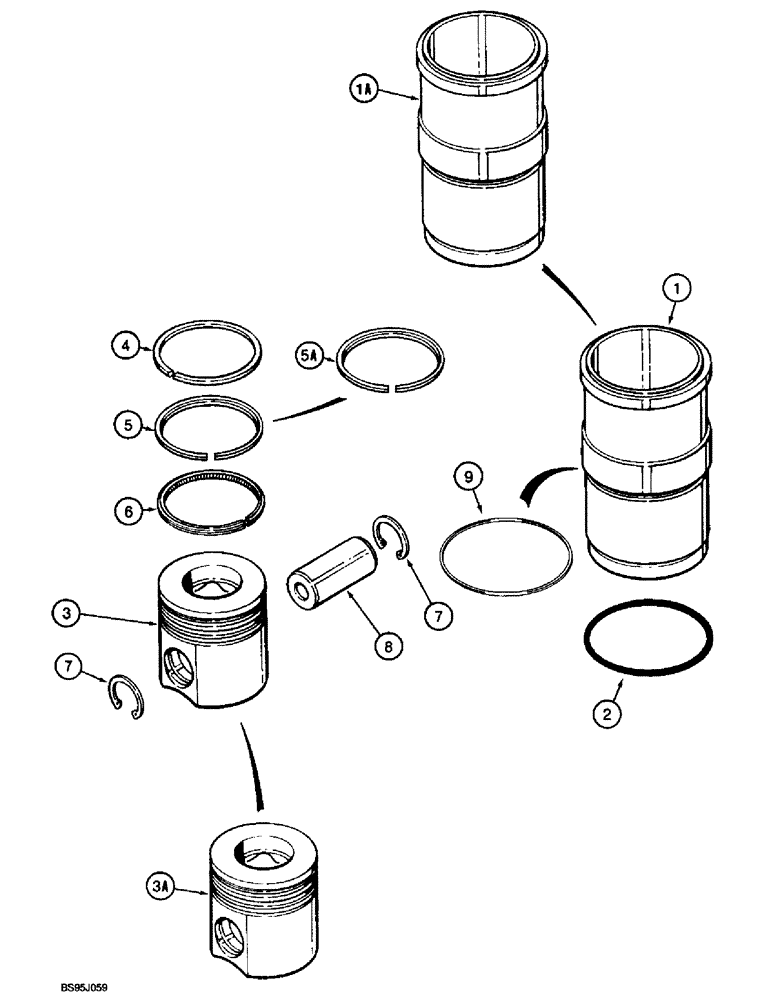

Схема запчастей Case IH 1670 - (2-58) - PISTON AND SLEEVE, 6TA-830 ENGINE, PRIOR TO ENG. S/N 44536857, AND ENG. S/N 44536857 THRU 44706125 (01) - ENGINE
5a
3
8
5
7
2
7
9
3a
1a
4
6
1

Артикул

Название

Примечание

Количество

A77626

CYLINDER

KIT - piston and sleeve, includes piston stamped 8750, no longer available, order A77748 kit below, Includes: Ref. 1 - 7

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77664

KIT

- piston, standard, includes piston stamped 8750, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 8750

1шт.

A77562

PISTON RING SET

KIT - piston ring, used with piston stamped 8750, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5

NSS

NOT SOLD SEPARAT

RING - rectangular, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, (Replaces J901996 and G109044) 1.75", Int, #175

2шт.

8

J901597

PIN

- piston

1шт.

9

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Replaces J914653 shim 0.254mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J914654

SHIM,.015" Thk

Cylinder sleeve (0.381 mm) .015" Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J914655

SHIM,.020" Thk

Cylinder sleeve (0.508 mm) .020" Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030") 0.762mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040") 1.000mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

A77748

PACKAGE

KIT - piston and sleeve, includes piston stamped 9930, eng s/n 44536857 through 44706125, Includes: Ref. 1 - 7

6шт.

A77774

PACKAGE, REPAIR

KIT - piston and sleeve, includes piston stamped 9565 or 3164, eng s/n 44536857 through 44706125, Includes: Ref. 1 - 7

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston, eng s/n 44536857 through 44706125

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, piston eng s/n 44536857 through 44706125

1шт.

A77746

PACKAGE

KIT - piston, standard, includes piston stamped 9930, eng s/n 44536857 through 44706125, Includes: Ref. 3A - 6

1шт.

A77773

PISTON ASSY.

KIT - piston, engine, standard, includes piston stamped 9565 or 3164, eng s/n 44536857 through 44706125, Includes: Ref. 3A - 6

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9930, eng s/n 44536857 through 44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9565 or 3164, eng s/n 44536857 through 44706125

1шт.

A77744

PACKAGE

KIT - ring, piston, used with pistons stamped 9930, 9565 or 3164, eng s/n 44536857 through 44706125

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, piston eng s/n 44536857 through 44706125

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, piston eng s/n 44536857 through 44706125

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, piston eng s/n 44536857 through 44706125

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, (Replaces J901996 and G109044), Piston engine S/N 44536857 through 44706125 1.75", Int, #175

2шт.

8

J901597

PIN

- piston eng s/n 44536857 through 44706125

1шт.

9

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Replaces J914653 shim, Piston eng S/N 44536857 through 44706125 0.254mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J914654

SHIM,.015" Thk

Cylinder sleeve (0.381 mm), Piston eng S/N 44536857 through 44706125 .015" Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J914655

SHIM,.020" Thk

Cylinder sleeve (0.508 mm), Piston eng S/N 44536857 through 44706125 .020" Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030"), Piston eng S/N 44536857 through 44706125 0.762mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040"), Piston eng S/N 44536857 through 44706125 1.000mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only., piston eng s/n 44536857 through 44706125

1шт.

Выбрано товаров: 45
