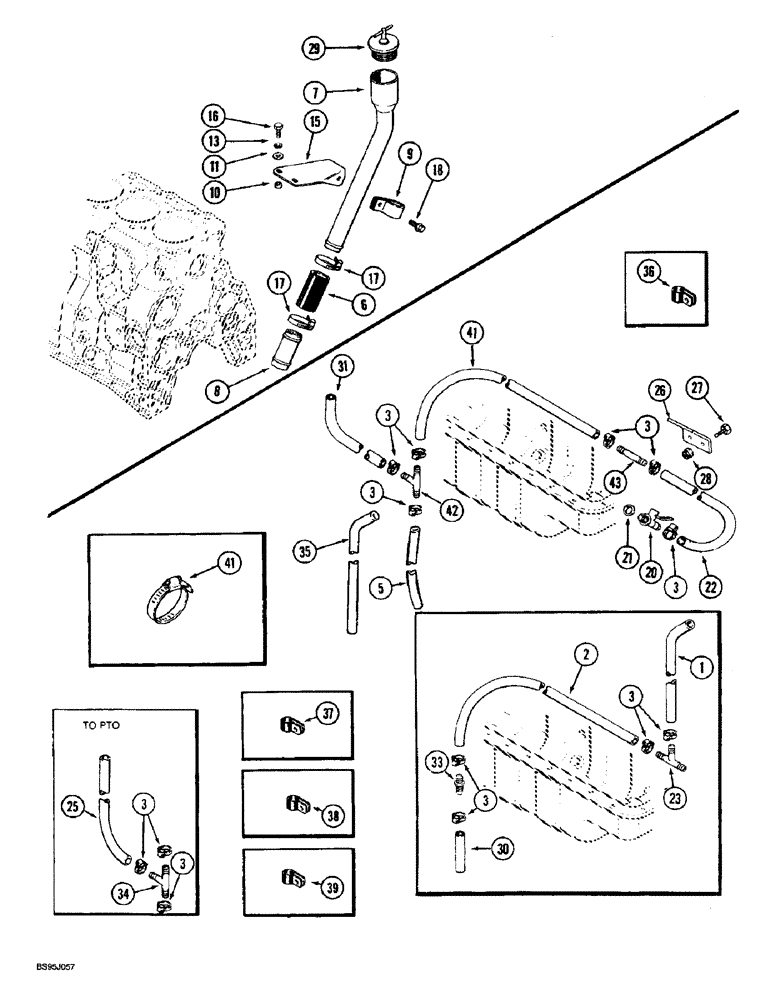

Запчасти Case IH 1670 (2-52) - ENGINE ATTACHING PARTS, 6TA-830 ENGINE (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

HOSE - crankcase breather, 840 mm, order 1977295CX and cut to length

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - breather, intermediate, 840 mm, order 1977295CX and, Serial Range: cut-length

1шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

12шт.

5

NSS

NOT SOLD SEPARAT

HOSE - breather, lower, 1600 mm, order 1977295CX and, Serial Range: cut-length

1шт.

6

A77661

HOSE

- 2-1/2 inch (64 mm) long

1шт.

7

J914019

TUBE,34.92 mm OD x 59, 25 mm L

- oil fill, upper

1шт.

8

J914163

TUBE,35.23 mm OD x 90 mm L

- oil fill, lower

1шт.

9

J914022

CLAMP

- P-type

2шт.

10

102439A1

SPACER

- 13/32 x 1/2 x 3/8 inch, replaces D35217 clamp

2шт.

11

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

2шт.

13

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

15

J914020

BRACKET

- support

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

17

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

18

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, , special Hex Flg, M8 x 16, 8.8, Full Thd

1шт.

20

1330429C1

DRAIN VALVE

VALVE - oil drain

1шт.

21

J900216

PACKING RING

WASHER - sealing, drain plug

1шт.

22

1329978C3

HOSE

- 18-1/8 inch (430 mm) long

1шт.

23

1977169C1

TEE

- oil drain, quantity of 1 when item 33 is used

2шт.

25

NSS

NOT SOLD SEPARAT

HOSE - PTO drain, 350 mm, order 1977295CX and, Serial Range: cut-length

1шт.

26

1977212C1

BRACKET

- oil drain shield

1шт.

27

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

28

231-5146

FLANGE NUT,3/8"-16

2шт.

29

A77424

FILLER CAP

CAP - oil fill tube

1шт.

30

NSS

NOT SOLD SEPARAT

HOSE - breather, lower, 100 mm, order 1977295CX and, Serial Range: cut-length

1шт.

31

REF

INSTRUCTION

HOSE - reservoir drain, see figure 8-6 or 8-8

1шт.

33

1301342C1

FITTING

ADAPTER - straight, special, if used

1шт.

34

1977169C1

TEE

- oil drain, if used

1шт.

35

NSS

NOT SOLD SEPARAT

HOSE - breather crankcase 3760 mm, order 3604360C1 and cut to length

1шт.

36

892033C1

CLAMP

- P-type

1шт.

37

28123R1

CLAMP

- 1-1/2 inch coated, medium, closed

1шт.

38

515-25508

CLAMP,2", Insul, 1/2" Bolt

- P-type, 2 inch ID, replaces 28009R1 clamp

2шт.

39

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- 1-7/8 inch diameter

1шт.

41

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

1шт.

281-14810

SELF-TAP SCREW,Hex Hd, 5/16" x 5/8"

SCREW - self-tapping, hex washer head, 5/16 NC x 5/8 inch

1шт.

42

1977169C1

TEE

- oil drain

1шт.

43

1301342C1

FITTING

ADAPTER - straight, special

1шт.
