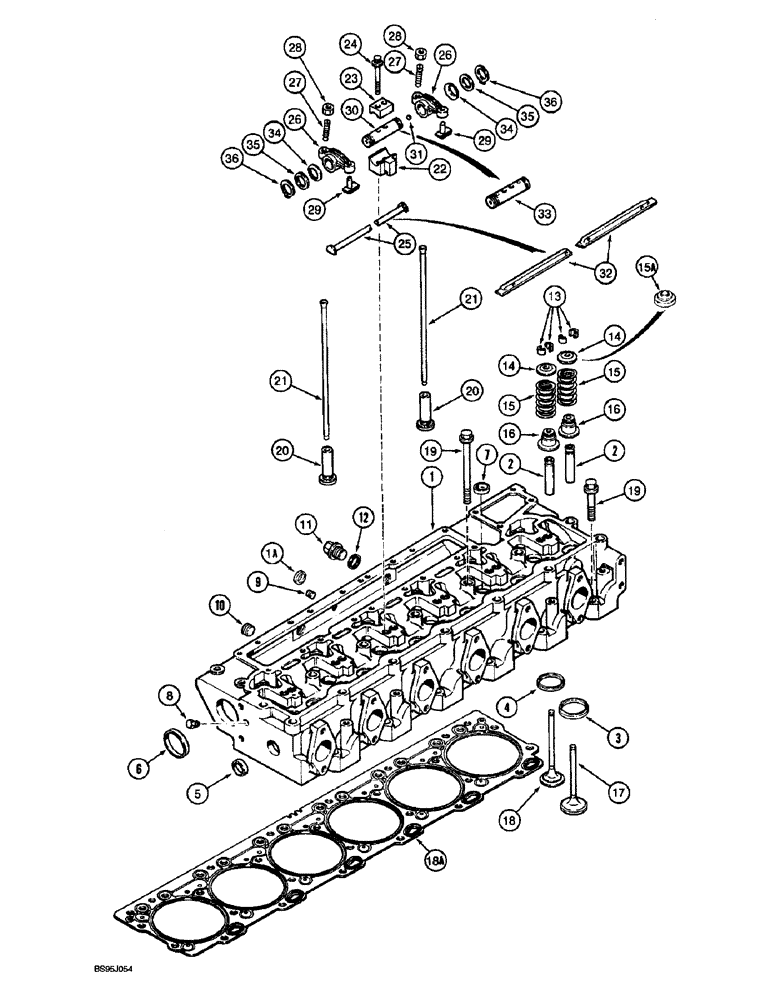

Запчасти Case IH 1670 (2-40) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-830 ENGINE (01) - ENGINE

JR925644

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, replaces JR913111 head assembly, Includes: Ref. 1 - 7

1шт.

JC913111

HEAD (CYLINDER)

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly, Includes: Ref. 1 - 7

1шт.

1

J925644

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, replaces J913111 and J917768 head assembly, Includes: Ref. 1 - 7

1шт.

1

J920026

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves, no longer available, order J925644 head assembly for service, replaces J911287 and J919919 head assembly, Includes: Ref. 1A - 7

1шт.

1a

J912900

PLUG

- expansion, 24 mm

1шт.

2

J923564

VALVE GUIDE

GUIDE - valve stem, replaces J901187 guide

12шт.

3

J924582

INSERT

- seat, intake valve, replaces J908830 insert

6шт.

3

J925468

SEAT, VALVE

INSERT - seat, intake valve, 0.254 mm oversize, replaces J914839 insert

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately

1шт.

3

J925470

SEAT, VALVE

INSERT - seat, intake valve, 0.508 mm oversize

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately

1шт.

4

J929005

INSERT

- seat, exhaust valve, replaces J904716 insert

6шт.

4

J929006

INSERT

- seat, exhaust valve, 0.254 mm oversize, replaces J914836 insert

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately

1шт.

4

J929007

INSERT

- seat, exhaust valve, 0.508 mm oversize

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately

1шт.

5

J920443

PLUG

- expansion, 30 mm O.D., replaces A77530 plug

1шт.

6

A77782

PLUG

- expansion, 58 mm O.D., replaces J900965 plug

2шт.

7

A77590

PLUG

- expansion, J913111 and J917768 head only

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

A77534

PLUG

- hex, 1/16 inch PT

1шт.

9

A77428

PLUG

- hex socket, 1/4 inch PT

1шт.

10

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

11

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5, replaces J904386 plug

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

13

J901177

VALVE

KEEPER - valve

24шт.

14

J912976

RETAINER

- valve spring, J913111 and J917768 head assembly only

12шт.

15

J906412

VALVE SPRING

SPRING, VALVE, J913111 and J917768 head assembly only

12шт.

15

J925272

VALVE SPRING

SPRING - exhaust valve, J925644 head assembly only

12шт.

15a

J925273

ROTATOR

- valve, J925644 head assembly only

12шт.

16

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

17

J924492

STD INLET VALVE

VALVE - intake, replaces J902253 and J915506 valve

6шт.

18

J921444

STD EXHAUST VALVE

VALVE - exhaust, replaces J902254 valve

6шт.

18a

J928168

GASKET

- cylinder head, standard

1шт.

19

J917728

BOLT

- cylinder head, 160 mm long

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long

12шт.

20

J925031

TAPPET

- valve, push rod, replaces JJ907240 tappet

12шт.

21

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

22

J905870

SUPPORT

- shaft, rocker arm

6шт.

23

J901693

CLAMP

- retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW - 12 point flange, 10 - 1.5 x 65 mm, class 12.9, Replaces J901617 bolt

12шт.

25

J910911

MANIFOLD

- oil, rocker arm, no longer available, order J919677 manifold

1шт.

26

J901717

ROCKER

ARM ASSEMBLY - rocker

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

30

J915415

SHAFT

- rocker, no longer available, order J919435 shaft, Ref. 33

6шт.

31

J907555

PLUG

- rocker arm shaft, no longer available, replace with J919435 shaft, Ref. 33

12шт.

32

J919677

TUBE

- oil, rocker arm

1шт.

33

J919435

SHAFT

- rocker

6шт.

34

J906100

SPRING CUP

WASHER - spring

12шт.

35

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, special

12шт.

36

100-1187

SNAP RING,#87, Ext

Ring, Snap, (Replaces B18206) #87, Ext

12шт.
