Запчасти Case IH 1670 (2-36) - CYLINDER HEAD COVER AND GASKET, 6TA-830 ENGINE (01) - ENGINE

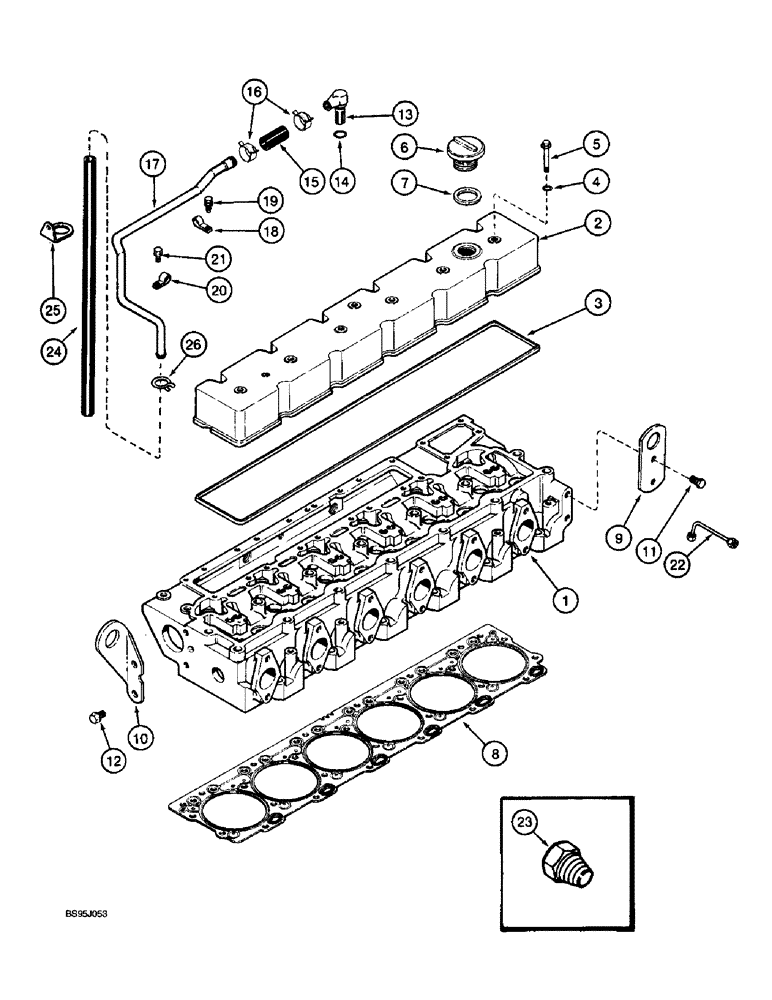

Схема запчастей Case IH 1670 - (2-36) - CYLINDER HEAD COVER AND GASKET, 6TA-830 ENGINE (01) - ENGINE
11
19
4
5
18
23
15
24
20
7
13
3
8
10
22
1
9
6
14
2
25
17
16
12
26
21

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-40 for correct assembly and component parts

1шт.

2

J907734

COVER ASSY

COVER - valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT - hex flange cap, special

6шт.

6

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

8

J928168

GASKET

- cylinder head, standard, replaces J911342 and J921850 gasket

1шт.

8

J928180

GASKET

- cylinder head, 0.25 mm thicker, replaces J914305 and J921852 gasket

1шт.

8

J928181

GASKET

- cylinder head, 0.50 mm thicker, replaces J914306 and J921853 gasket

1шт.

9

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, Front lifting bracket to cylinder head

4шт.

12

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, rear lifting bracket to cylinder head

2шт.

13

J906794

CONNECTION

CONNECTOR - vent, 90 degree, breather

1шт.

14

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Breather tube (Replaces J909397) -115, 70 Duro, .674" ID x .103" Thk

1шт.

15

J918610

HOSE,19.05 mm ID x 51.00 mm

to Connector, Replaces J915040 Hose 19.05 mm ID x 51.00 mm

1шт.

16

J918163

CLIP

CLAMP - spring type, spring type, replaces 214-109 clamp

2шт.

17

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

18

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Breather tube to valve M15.88, M9.52 Bolt Hole

1шт.

19

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm, breather tube clip to valve cover

1шт.

20

A77538

CLIP

CLAMP - P-style, retaining, breather tube to cylinder head

1шт.

21

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

1шт.

22

J918167

TUBE,6.35 mm OD x 117.5 mm L

- vent, air

1шт.

23

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

24

J918616

TUBE,680.00 mm

Replaces A77717 Hose 680.00 mm

1шт.

25

J909670

CLIP

- retaining

1шт.

26

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP, HOSE, #18, 1 1/8", Spring

1шт.
