Запчасти Case IH 1670 (2-28) - TURBOCHARGER SYSTEM, 6TA-830 ENGINE (01) - ENGINE

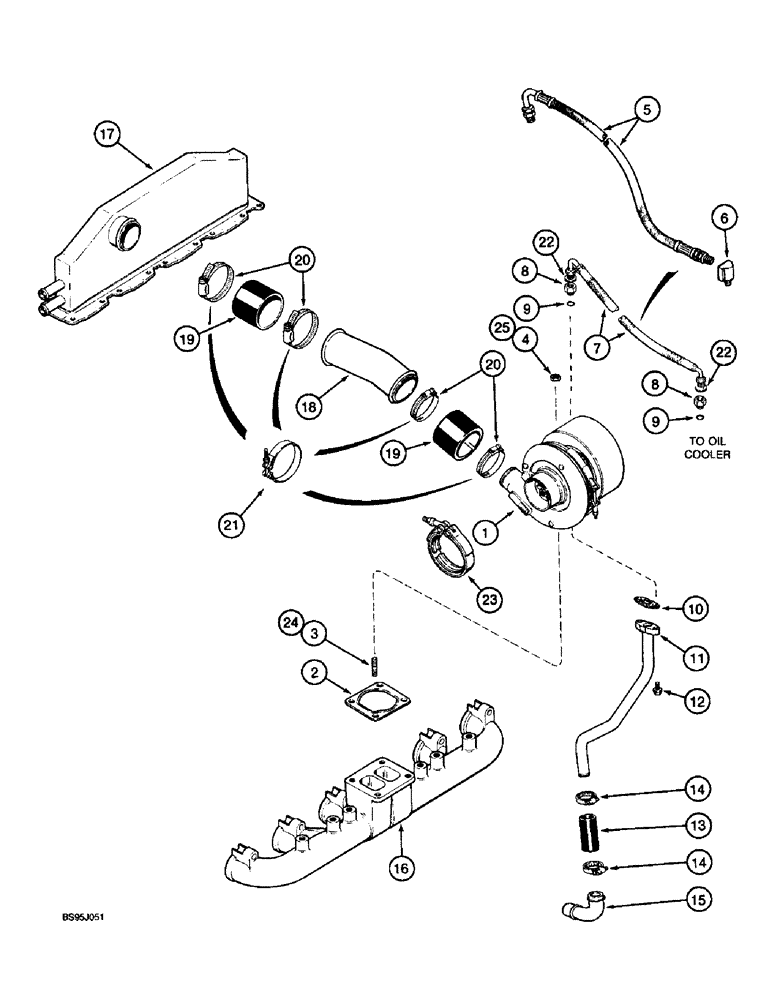

Схема запчастей Case IH 1670 - (2-28) - TURBOCHARGER SYSTEM, 6TA-830 ENGINE (01) - ENGINE
5
9
1
20
3
23
18
22
4
6
9
16
19
25
10
12
15
22
20
21
2
24
13
14
19
8
7
14
17
11
8

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see Figure 2-30 for correct assembly and parts list

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J905417

STUD

- turbocharger mounting, used with Ref. 4 nut only

4шт.

4

J901961

NUT

- hex, special, 10 mm - 1.25, stud, used with Ref. 3 stud only

4шт.

5

J909548

HOSE

ASSEMBLY - oil supply, turbocharger, prior to Engine Serial Number 44489287

1шт.

6

A77588

ELBOW

- 90 degree, prior to Engine Serial Number 44489287

1шт.

7

J918562

HOSE

- 21-3/16 inch (538 mm) long, turbocharger, Engine Serial Number 44489287 and after

1шт.

8

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Engine Serial Number 44489287 and after, replaces J916857 adapter, Includes: Ref. 9

2шт.

9

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

10

J914388

GASKET

- turbo oil drain tube

1шт.

11

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

- oil drain, upper

1шт.

12

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

13

J903745

LARGE HOSE

HOSE - 3 inch (76 mm) long, turbocharger oil drain, lower

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

15

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

16

J906741

MANIFOLD

- exhaust, see Figure 2-26

1шт.

17

J914502

HEAT-EXCHANGER

AFTERCOOLER - air intake, see Figure 2-26

1шт.

18

J914942

TUBE,63.5 mm OD x 189.5, 23 mm L

- crossover, air

1шт.

19

J916529

TRANSMISSION SLEEVE

HOSE - 3 inch (76 mm) long, crossover tube

2шт.

20

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia., if used

4шт.

21

J923580

CLAMP

- adjustable, special, if used

4шт.

22

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

23

A170807

CLAMP,102mm ID

exhaust tube retaining

1шт.

24

J818823

STUD

- turbocharger mounting, used with Ref. 25 nut only

4шт.

25

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5, used with Ref. 24 stud only

4шт.
