Запчасти Case IH 1670 (2-26) - MANIFOLDS, 6TA-830 ENGINE, EXHAUST, INTAKE AFTERCOOLER (01) - ENGINE

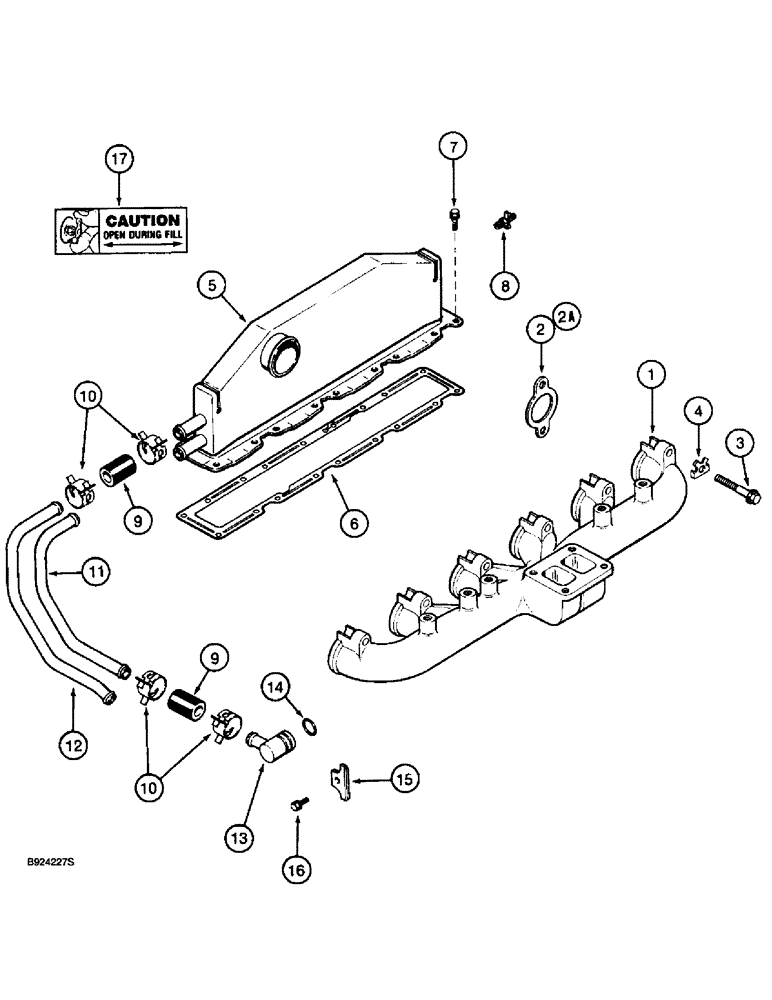

Схема запчастей Case IH 1670 - (2-26) - MANIFOLDS, 6TA-830 ENGINE, EXHAUST, INTAKE AFTERCOOLER (01) - ENGINE
6
4
7
8
10
15
13
9
1
14
2
12
3
2a
16
17
11
10
5
9

Артикул

Название

Примечание

Количество

1

J906741

MANIFOLD

- exhaust

1шт.

2

J911942

GASKET

- exhaust manifold, 1.27 - 1.40 mm thick, no longer available, order item 2A, J921787 gasket

6шт.

2a

J921787

GASKET

- exhaust manifold, 1.0 mm thick (set of 6)

1шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

12шт.

4

J914708

LOCKING PLATE

PLATE - locking, manifold bolt

12шт.

5

J914502

HEAT-EXCHANGER

AFTERCOOLER - air intake

1шт.

6

J914311

MANIFOLD GASKET

- intake manifold aftercooler

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake aftercooler Hex Flg Hd, M8 x 1.25 x 25

18шт.

8

J909394

COCK, DRAIN

VALVE - drain, air bleed, intake aftercooler

1шт.

9

J918611

HOSE,18.50 mm ID x 63.00 mm

Supply Tube to Aftercooler, Replaces J917791 Hose, Intake 18.50 mm ID x 63.00 mm

4шт.

10

J918163

CLIP

CLAMP - spring type, hose retaining, replaces 214-1412 clamp, intake aftercooler

8шт.

11

J906436

TUBE,19.05 mm OD x 385.3 mm L

- water inlet, intake aftercooler

1шт.

12

J908402

TUBE,19.05 mm OD

- water outlet, intake aftercooler

1шт.

13

J917394

ELBOW

CONNECTOR - water inlet, intake aftercooler

2шт.

14

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

Intake aftercooler -120, 70 Duro, .987" ID x .103" Thk

2шт.

15

J906439

PLATE

- mounting, intake aftercooler

1шт.

16

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Intake aftercooler

1шт.

17

J910778

DECAL

- Attention, open during fill, intake aftercooler

1шт.

Выбрано товаров: 18
